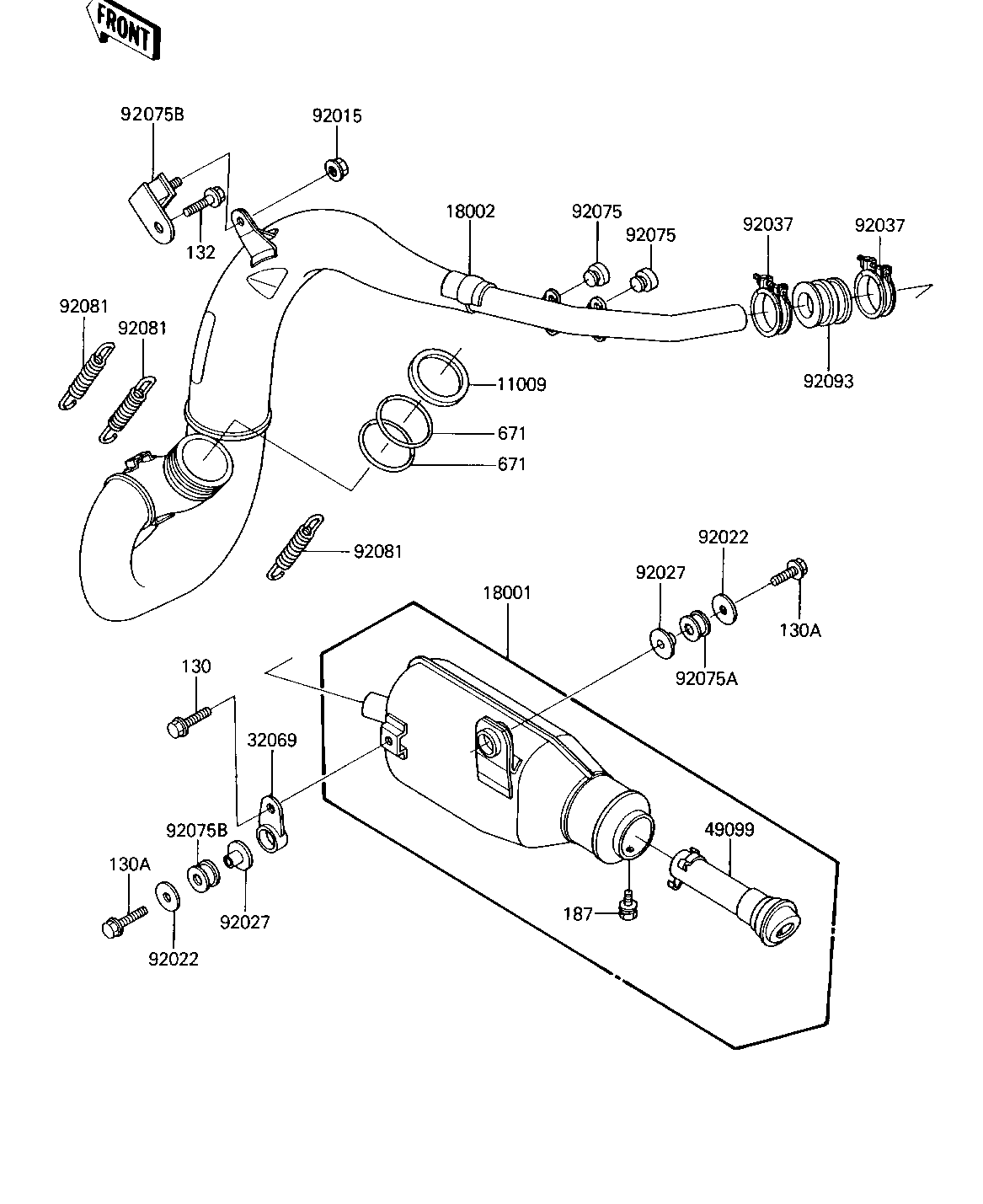

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11009 11009-1253 1
MUFFLER 18001 18001-1647 1
BODY-COMP-MUFFLER 18002 18002-1747 1
BRACKET-MUFFLER 32069 32069-1259 1
BAFFLE-PIPE MUFFLER 49099 49099-1221 1
NUT-6MM 92015 92015-1078 1
WASHER,PLAIN 92022 92022-298 2
COLLAR,MUFFLER 92027 92027-1981 2
CLAMP,CARBURETOR,40MM 92037 92037-1129 2
DAMPER,SIDE COVER 92075 92075-1598 4
DAMPER,MUFFLER 92075A 92075-1809 2
DAMPER,MUFFLER 92075B 92075-1891 1
SPRING,MUFFLER CONECT 92081 92081-1526 3
SEAL, MUFFLER 92093 92093-1085 1
BOLT,FLANGED,8X14 130 130G0814 1
BOLT,FLANGED,8X30 130A 130G0830 2
BOLT-FLANGED-SMALL 132 132G0612 1
BOLT 6X12 187 187B0612 1
O RING,50MM 671 671E2550 2
