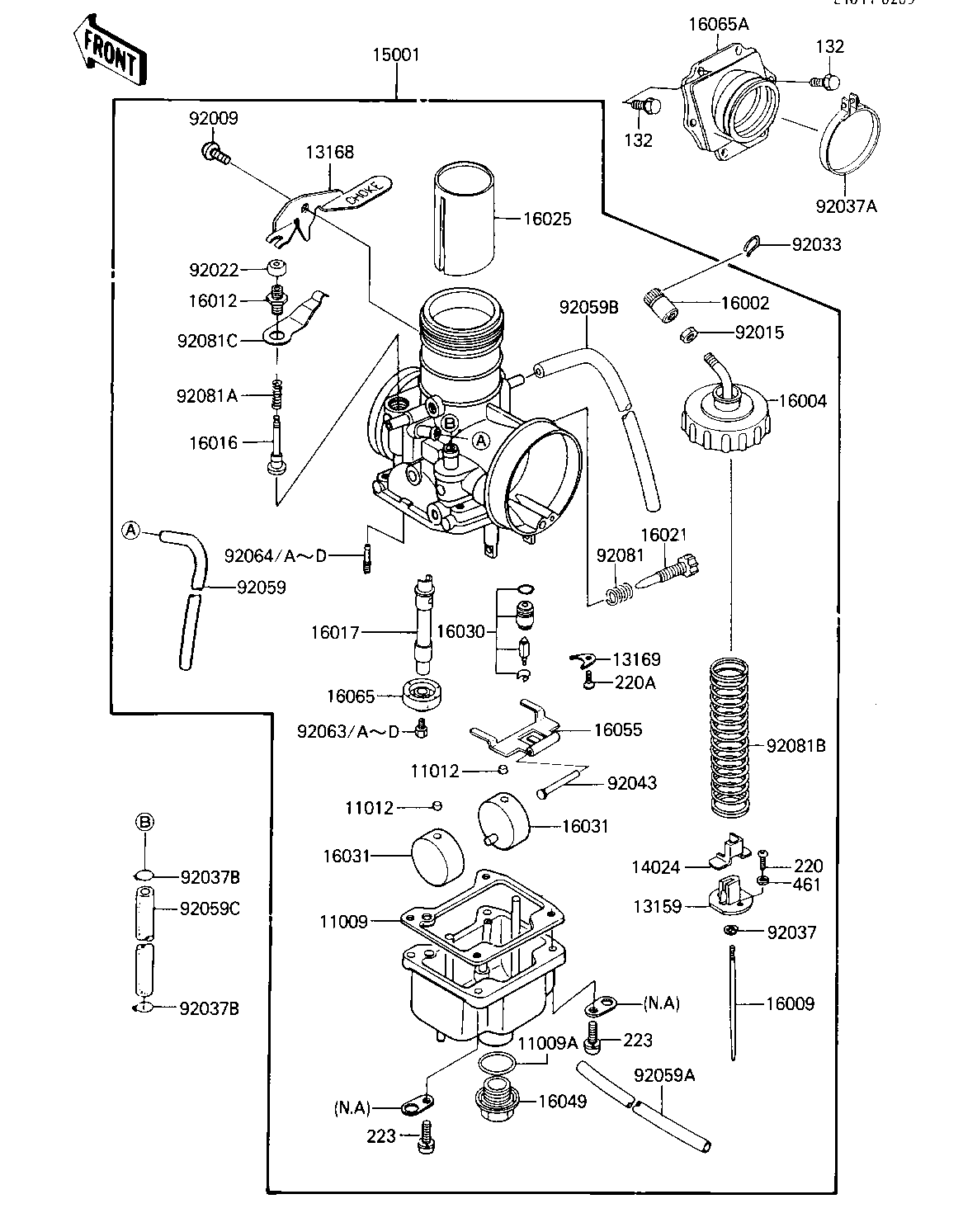

1987 Tecate - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1275 1
GASKET-COVER 11009A 16038-009 1
CAP,FLOAT 11012 11012-1047 2
CONNECTOR,THROTTLE 13159 13159-1010 1
LEVER,STARTER 13168 13168-1233 1
PLATE, LOCK 13169 13169-1190 1
COVER,THROTTLE,VALVE 14024 14025-1113 1
CARBURETOR-ASSY 15001 15001-1207 1
ADJUSTER,CABLE 16002 16002-1006 1
CAP-CHAMBER,MIXING 16004 16004-1013 1
NEEDLE-JET,6FL56 16009 16009-1297 1
CAP,STARTER PLUNGER 16012 16012-019 1
PLUNGER 16016 16016-011 1
JET-NEEDLE,R-2 16017 16017-1250 1
SCREW,THROT VLV ADJST 16021 16021-1030 1
VALVE-THROTTLE,CA.3.0 16025 16025-1114 1
VALVE-FLOAT,3.3 16030 16030-1020 1
FLOAT 16031 16031-029 2
COVER,MAIN JET 16049 16049-006 1
ARM,FLOAT 16055 16055-009 1
HOLDER,NEEDLE JET 16065 16065-1045 1
HOLDER-CARBURETOR 16065A 16065-1124 1
SCREW 92009 92009-1412 1
NUT CABLE ADJUST LOCK 92015 16003-004 1
CAP,STARTER PLUNGER 92022 16039-015 1
CIRCLIP 92033 92036-018 1
CIRCLIP 92037 16008-010 1
CLAMP,CARBURETOR HOLD 92037A 92037-1313 1
CLAMP,CHAIN OILER 92037B 92037-147 2
PIN,FLOAT 92043 16032-008 1
TUBE,3.5X6.5X410 92059 92059-1142 1
TUBE,3.5X6.5X350 92059A 92059-1211 1
TUBE,4X7X400,OVERFLOW 92059B 92059-1292 1
TUBE,5.8X10.8X230 92059C 92059-1431 1
JET-MAIN NO 260A 92063 92063-028 1 (OPTION)
JET-MAIN NO 270A 92063A 92063-029 1 (OPTION)
JET-MAIN NO 280A 92063B 92063-030 1
JET-MAIN NO 290A 92063C 92063-031 1 (OPTION)
JET-MAIN NO 300A 92063D 92063-045 1 (OPTION)
JET-PILOT NO 30 92064 92064-022 1 (OPTION)
JET-PILOT NO 35 92064A 92064-023 1
JET-PILOT NO 40 92064B 92064-024 1 (OPTION)
JET-PILOT NO 25 92064C 92064-032 1 (OPTION)
JET-PILOT NO 45 92064D 92064-044 1 (OPTION)
SPRING THR STOP SCREW 92081 16022-005 1
SPRING,STRTR PLUNGER 92081A 92081-1181 1
SPRING,THROTTLE VALVE 92081B 92081-1432 1
SPRING,PLATE 92081C 92081-1625 1
BOLT-FLANGED-SMALL 132 132G0620 6
SCREW PAN HEAD 3X8 220 220B0308 2
SCREW PAN HEAD 4X6 220A 220B0406 1
SCREW-PAN-WS-CROS 223 223B0518 1
WASHER SPRING 3MM 461 461F0300 2
