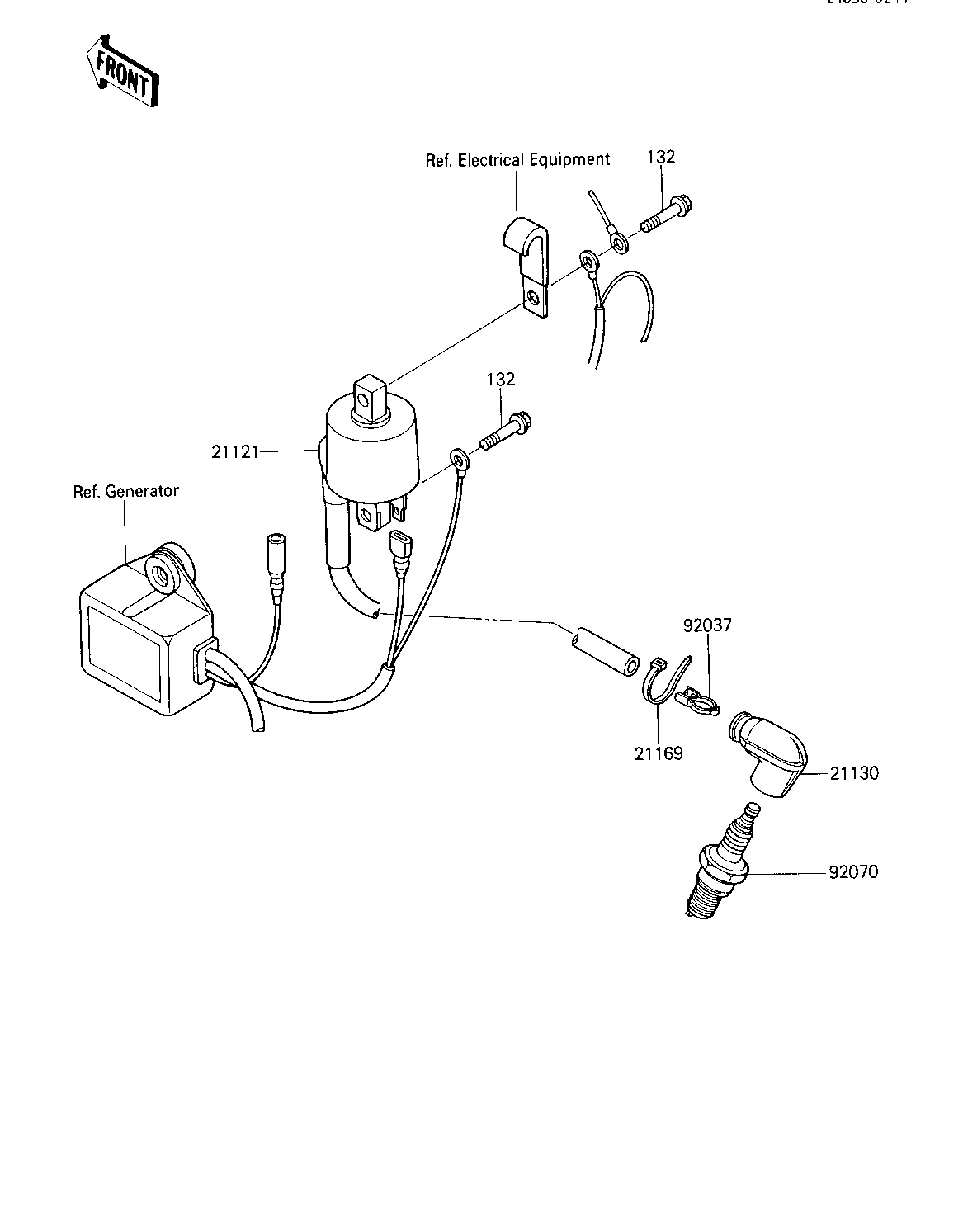

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-IGNITION 21121 21121-1170 1
CAP,SPARK PLUG 21130 21130-1006 1
TERMINAL,PLUG CAP 21169 21169-001 1
CLAMP,SPARK PLUG CAP 92037 92037-1173 1
SPARK PLUG B8ES 92070 B8ES 1
BOLT-FLANGED-SMALL 132 132G0620 2
