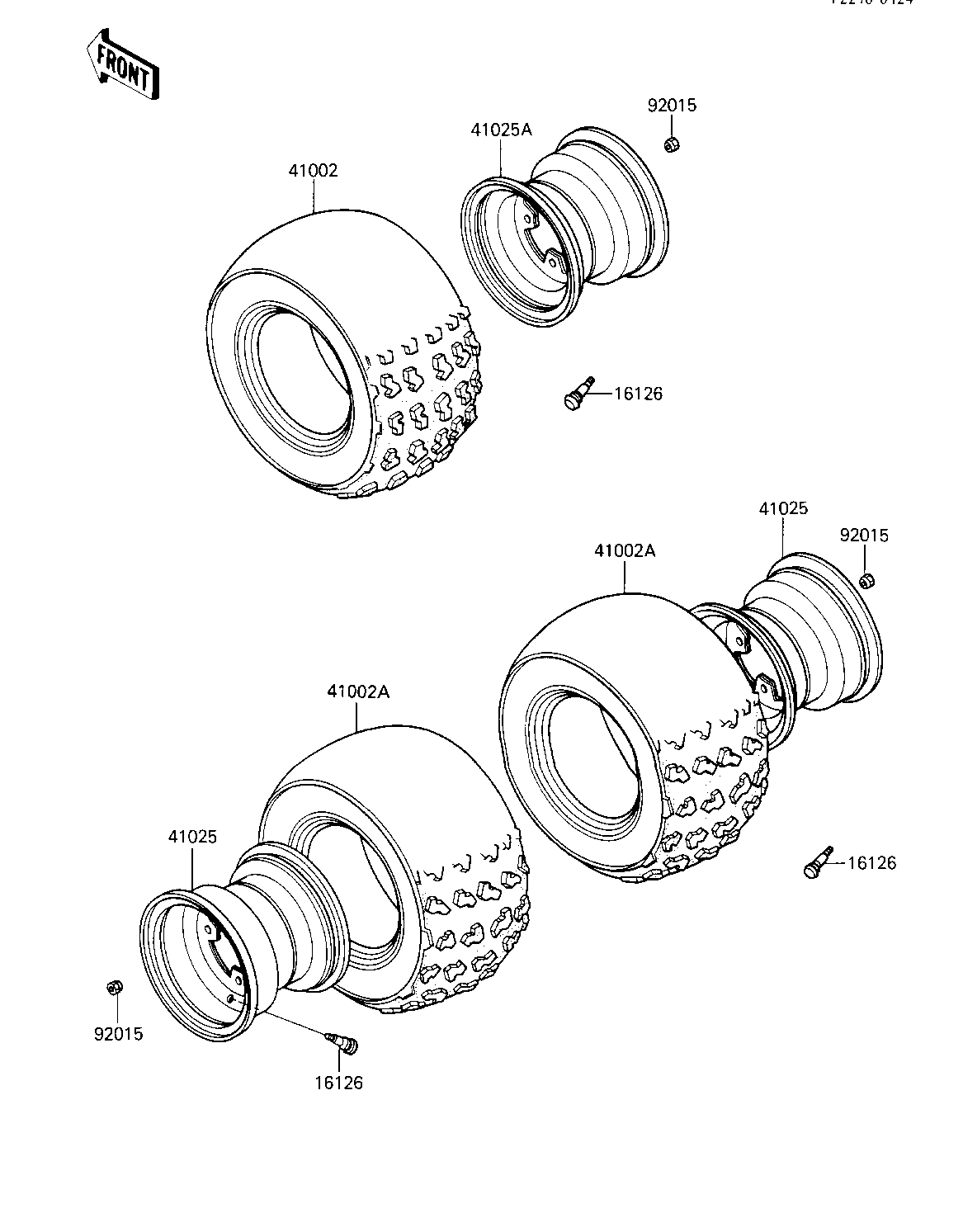

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 16126 16126-4001 3
TIRE,FR,23X9.00-11,KT 41002 41002-1549 1
TIRE,RR,20X11.00-10,K 41002A 41002-1550 2
RIM,RR 10X85 G SILVER 41025 41025-1151-F2 2
RIM FR 7.00X11 G SVLR 41025A 41025-1172-F2 1
NUT,10MM 92015 92015-1415 12
