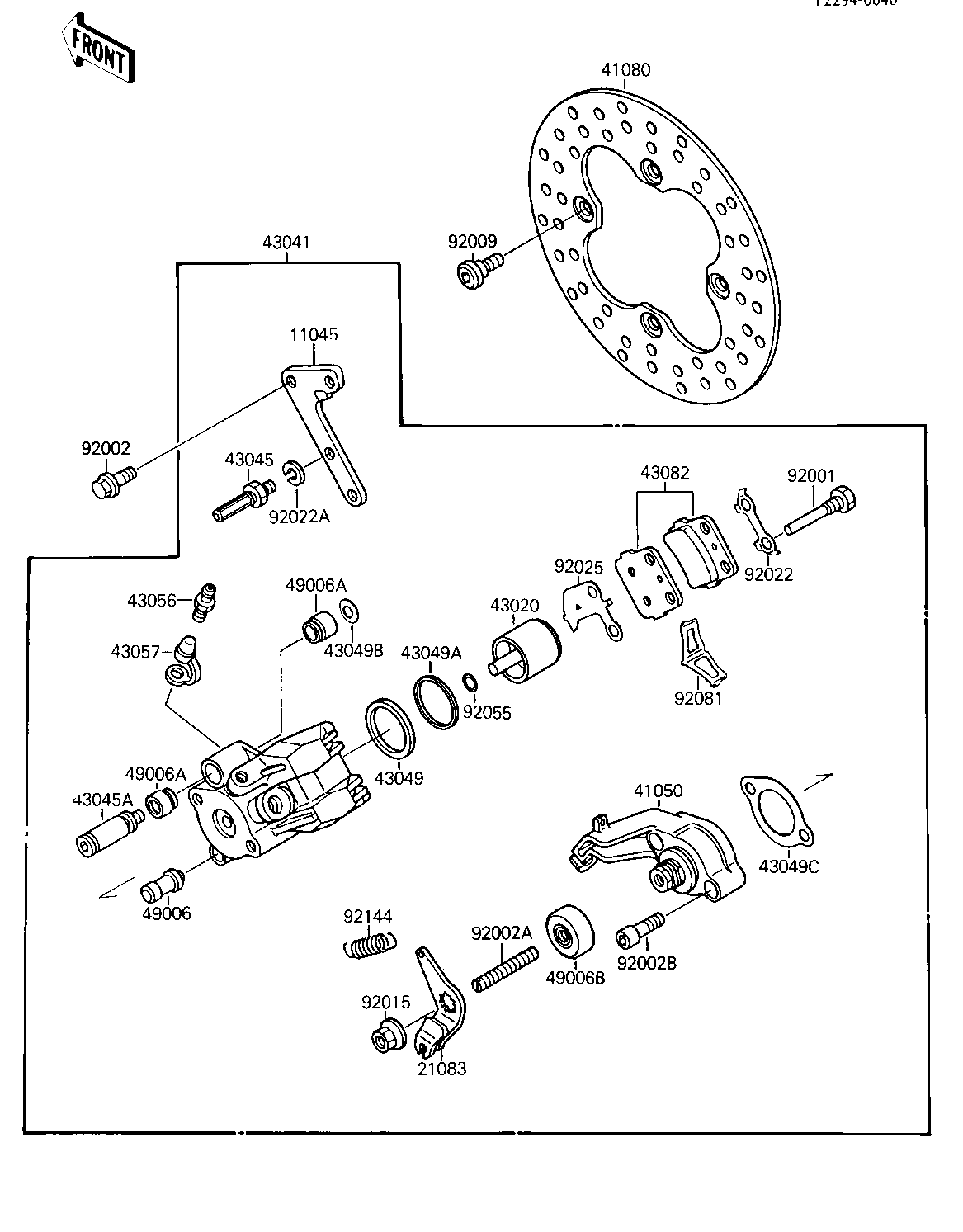

1987 Tecate - REAR BRAKE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR CALIPER 11045 11045-1418 1
ARM 21083 21083-1061 1
CAM-BRAKE,RR CALIPER 41050 41050-1073 1
DISC,RR 41080 41080-1180 1
PISTON-COMP-BRAKE 43020 43020-1102 1
CALIPER-ASSY,RR 43041 43041-1495 1
SHAFT-CALIPER 43045 43045-1010 1
SHAFT-CALIPER 43045A 43045-1051 1
PACKING,PISTON SEAL 43049 43049-1023 1
PACKING,PISTON SEAL 43049A 43049-1024 1
PACKING 43049B 43049-1025 1
PACKING 43049C 43049-1053 1
BREATHER-BRAKE 43056 43056-1052 1
CAP-BREATHER 43057 43057-1001 1
PAD-ASSY-BRAKE 43082 43082-1066 1
BOOT,CALIPER 49006 49006-1088 2
BOOT,CALIPER 49006A 49006-1089 2
BOOT,CALIPER 49006B 49006-1193 1
BOLT,PAD HOLDER 92001 92001-1723 2
BOLT,8X20 92002 92002-1250 2
BOLT,ADJUST 92002A 92002-1771 1
BOLT 92002B 92002-1772 2
SCREW,8X18 92009 92009-1408 4
NUT 92015 92015-1600 1
WASHER,LOCK 92022 92022-1372 1
WASHER 92022A 92022-1373 1
SHIM 92025 92025-1344 1
RING-O 92055 92055-1351 1
SPRING,PAD 92081 92081-1502 1
SPRING 92144 92144-1037 1
