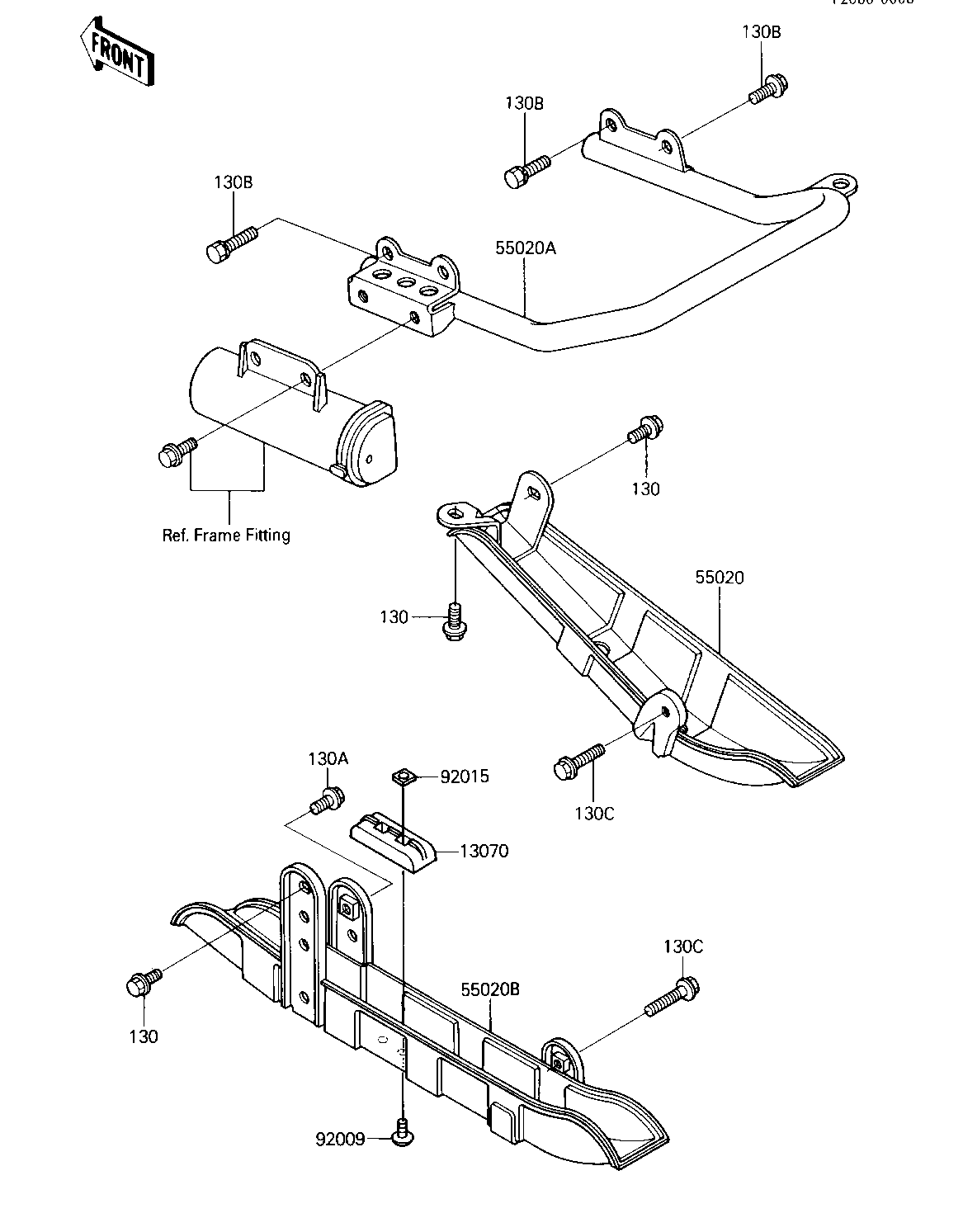

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,CHAIN 13070 13070-1156 1
GUARD,DISK 55020 55020-1205 1
GUARD,REAR STAY 55020A 55020-1217 1
GUARD,CHAIN 55020B 55020-1254 1
SCREW,6X10 92009 92009-1286 2
NUT,6MM 92015 92015-1452 2
BOLT-FLANGED 130 130B0810 3
BOLT,FLANGED,8X14 130A 130G0814 1
BOLT-FLANGED,8X16 130B 130B0816 4
BOLT-FLANGED,8X20 130C 130B0820 2
