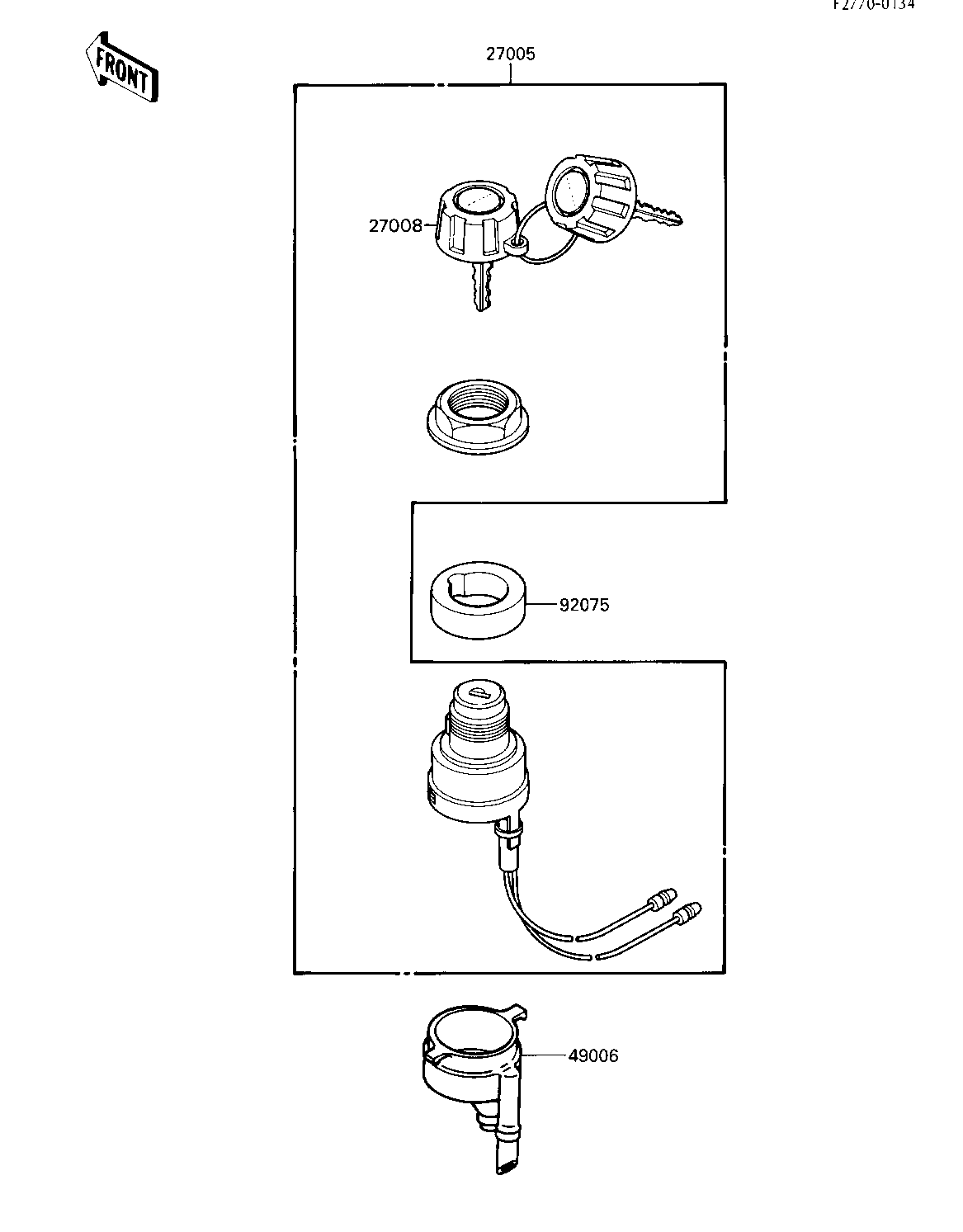

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-ASSY-IGNITION 27005 27005-1119 1
KEY-LOCK,BLANK 27008 27008-1131 AR (OPTION)
BOOT,IGNITION SWITCH 49006 49006-1207 1
DAMPER 92075 92075-1842 1
