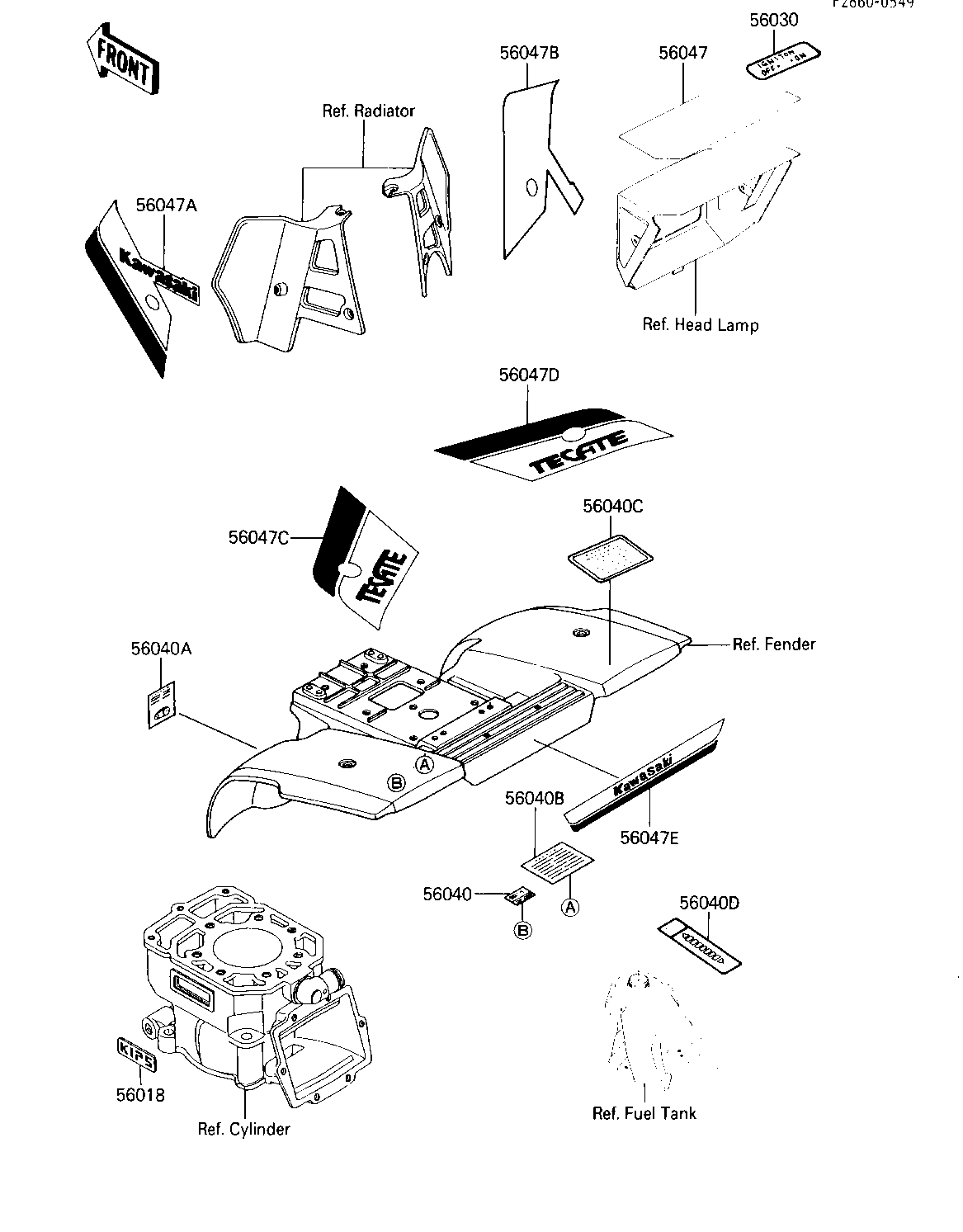

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK 56018 56018-1651 1
LABEL,IGNITION SWITCH 56030 56030-1091 1
LABEL,GASOLINE 56040 56040-1048 1
LABEL-WARNING 56040A 56040-1161 1
LABEL-WARNING 56040B 56040-1176 1
LABEL-WARNING,REFUELI 56040C 56040-1207 1
LABEL-WARNING,SHIFT P 56040D 56040-1208 1
PATTERN,HEAD LAMP 56047 56047-1006 1
PATTERN,SHROUD,LH 56047A 56047-1236 1
PATTERN, SHROUD,RH 56047B 56047-1237 1
PATTERN,RR FENDER LH 56047C 56047-1238 1
PATTERN,RR FENDER RH 56047D 56047-1239 1
PATTERN,RR FENDER RR 56047E 56047-1240 1
