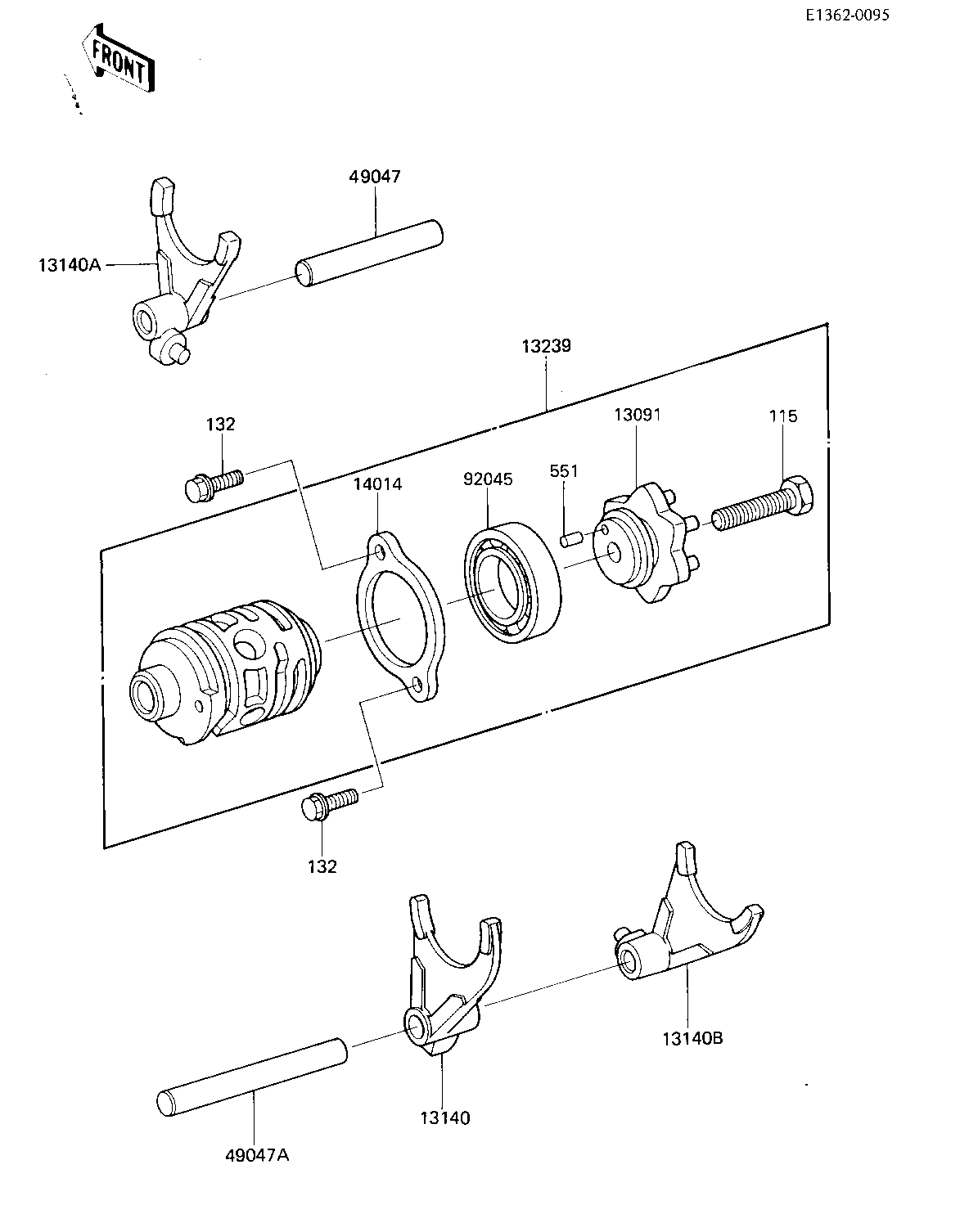

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CHANGE DRUM 13091 13091-1359 1
FORK-SHIFT,2ND&3RD 13140 13140-1070 1
FORK-SHIFT,5TH&TOP 13140A 13140-1123 1
FORK-SHIFT,LOW&4TH 13140B 13140-1124 1
DRUM-ASSY-CHANGE 13239 13239-1120 1
PLATE-POSITION 14014 14014-1020 1
ROD-SHIFT,8X58 49047 49047-1017 1
ROD-SHIFT,8X79.5 49047A 49047-1018 1
BEARING,BALL,#6905 92045 92045-036 1
BOLT-SMALL-UPSET,8X30 115 115G0830 1
BOLT-FLANGED-SMALL 132 132G0614 2
PIN,DOWEL,4X8 551 551A0408 1
