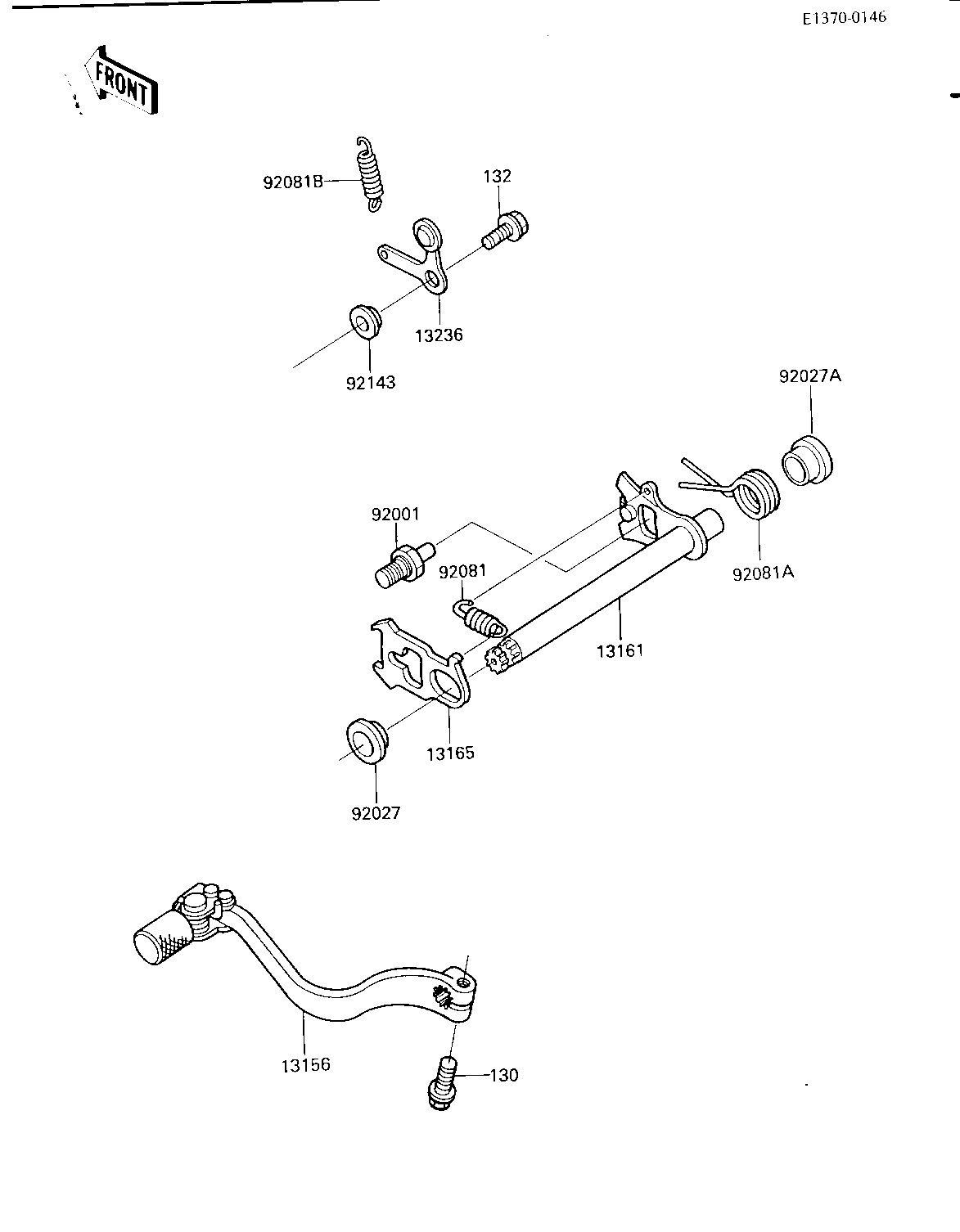

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-CHANGE,PEDAL 13156 13156-1225 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1101 1
PAWL,CHANGE LEVER 13165 13165-1119 1
LEVER-COMP,POSITION 13236 13236-1152 1
BOLT,RETURN SPRING 92001 92001-1401 1
COLLAR,CHANGE SHAFT,L=5.5 92027 92027-1512 1
COLLAR,L=10.6 92027A 92027-1916 1
SPRING,CHANGE LEVER 92081 92081-076 1
SPRING,CHANGE SHAFT RETURN 92081A 92081-1716 1
SPRING,CHNG DRUM LEV 92081B 92083-012 1
COLLAR 92143 92143-1055 1
BOLT,FLANGED,6X25 130 130G0625 1
BOLT-FLANGED-SMALL 132 132G0616 1
