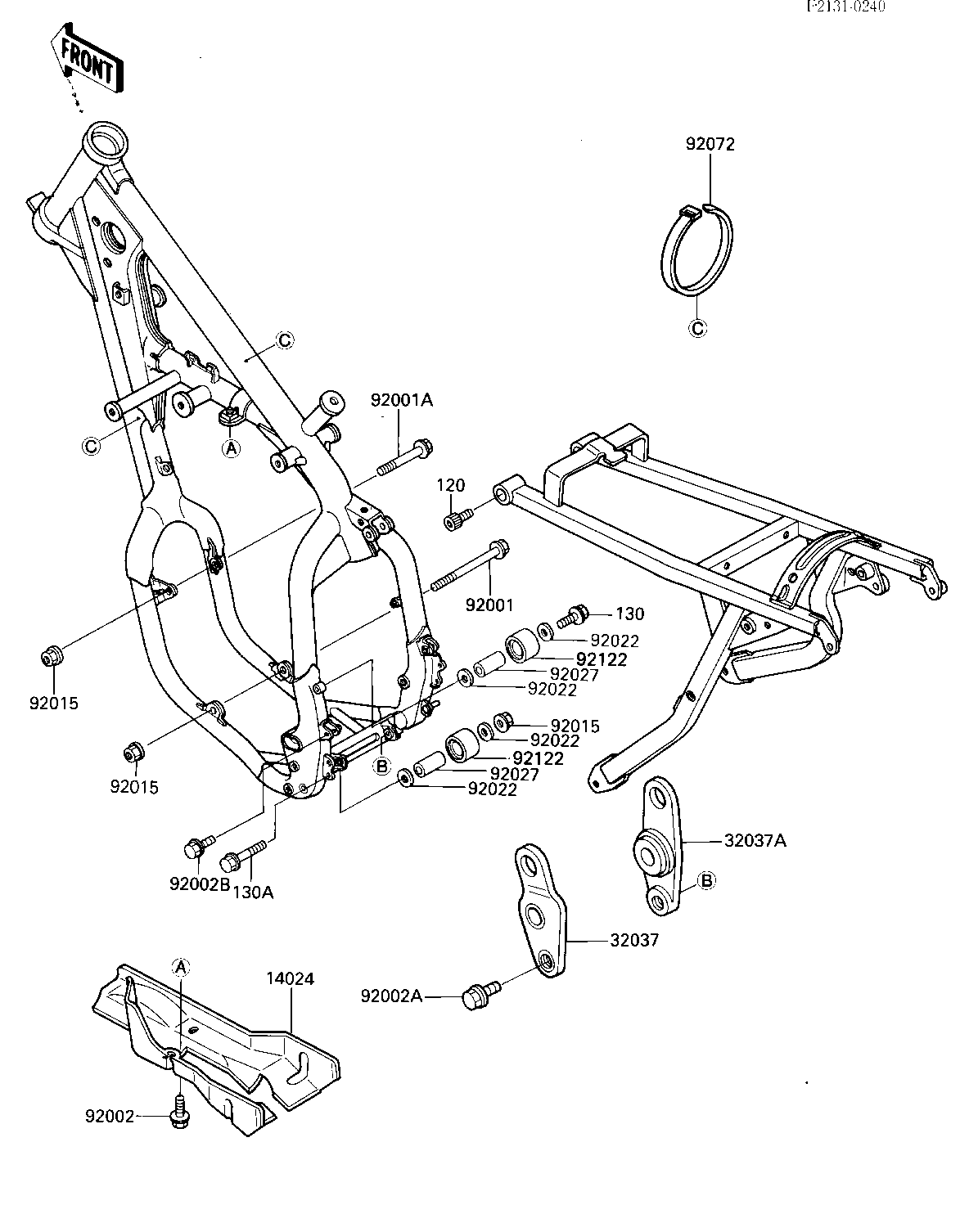

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,AIR FILTER 14024 14024-1367 1
BRACKET-SHOCKABSORBER 32037 32037-1420 1
BRACKET-SHOCKABSORBER 32037A 32037-1421 1
BOLT,ENGINE MOUNT 92001 92001-1367 1
BOLT,FLANGED,8X85 92001A 92001-1596 1
BOLT,6X14 92002 92150-1340 2
92150-1357 (Canada) 92002A 92002-1845 2
BOLT,FLANGED,8X22 92002B 92002-1846 2
NUT-8MM 92015 92015-1143 3
WASHER,8.5X22X1.5 92022 92022-1629 4
COLLAR,CHAIN ROLLER 92027 92027-1670 2
BAND,LONG 92072 92072-032 2
ROLLER,CHAIN GUIDE 92122 92122-1144 2
BOLT 120 120P0816 2
BOLT 130 130G0840 1
BOLT-FLANGED,8X70 130A 130G0870 1
