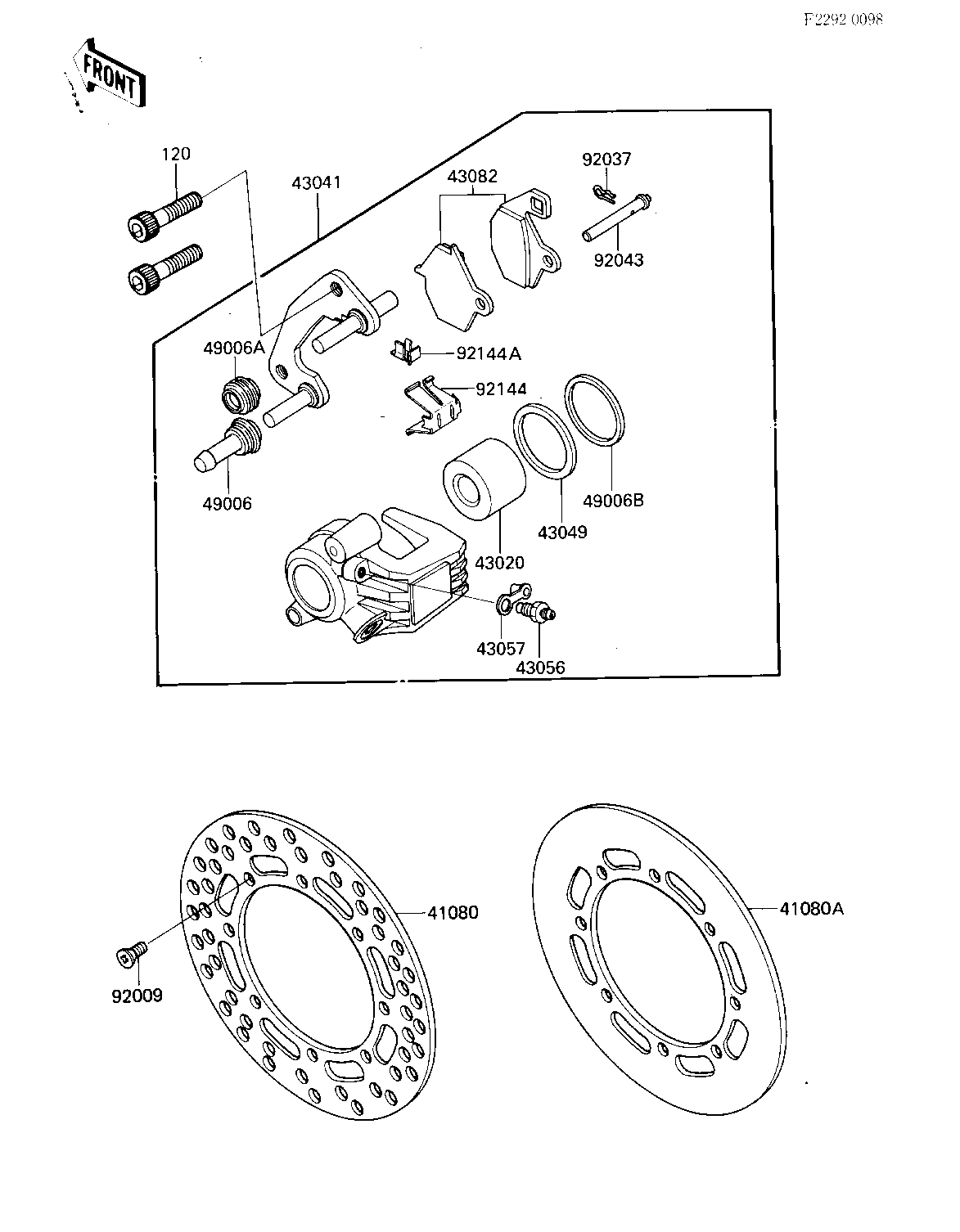

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-1147 1
DISC,FR 41080A 41080-1188 1 (OPTION)
PISTON-COMP-BRAKE 43020 43020-1097 1
CALIPER-ASSY,FR 43041 43041-1227 1
RING-PISTON 43049 43049-001 1
BREEDER 43056 43056-003 1
CAP,BREEDER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1072 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1055 1
BOOT,PISTON SEAL 49006B 49006-1212 1
SCREW,6X10 92009 92009-1375 8
CLIP 92037 43084-003 1
PIN,PAD 92043 92043-1356 1
SPRING,PAD 92144 92144-1117 1
SPRING,PAD STOPPER 92144A 92144-1118 1
BOLT-SOCKET,8X20 120 120P0820 2
