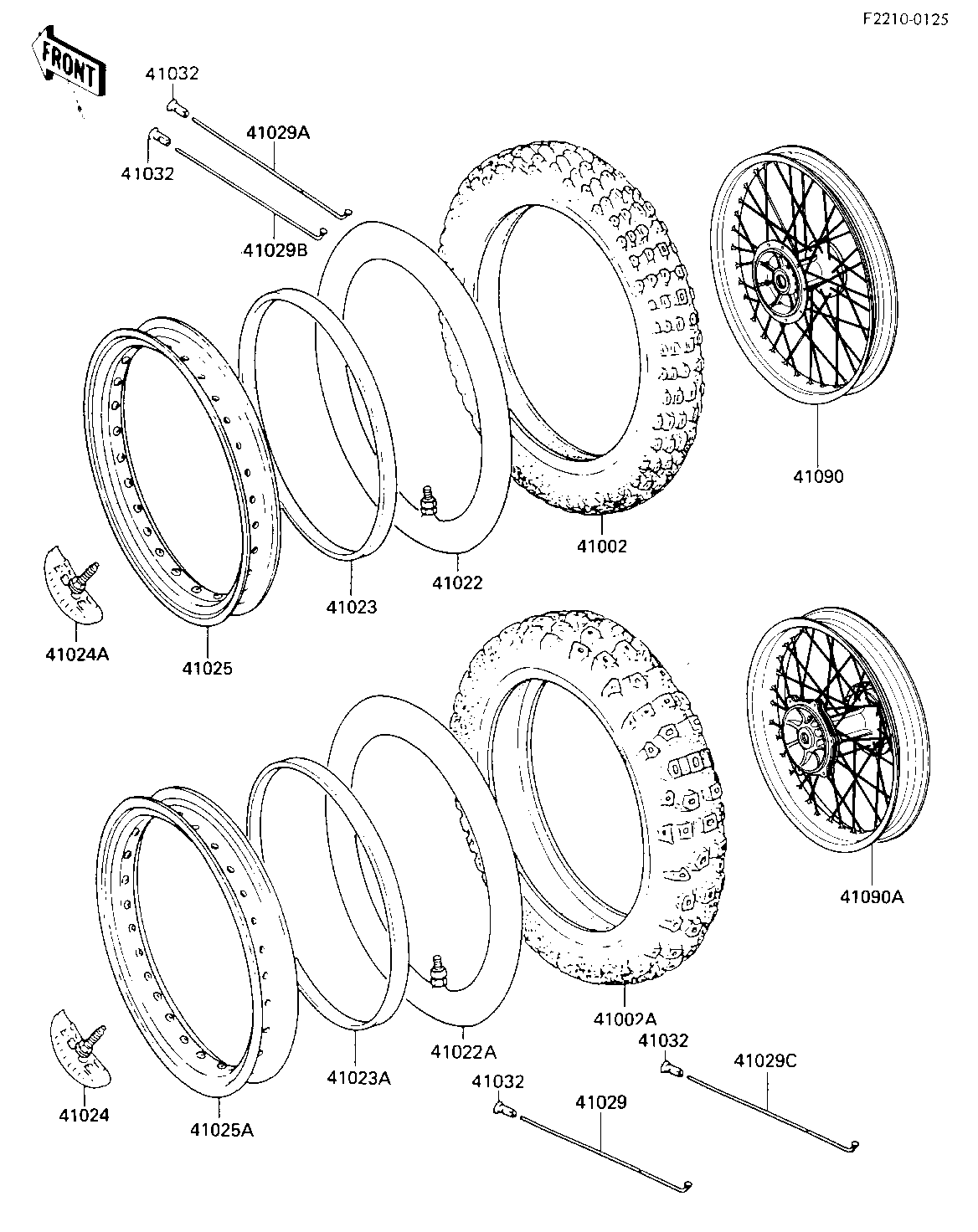

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,80/100-21 51M 41002 41002-1720 1
TIRE,RR,110/100-18 64 41002A 41002-1641 1
TUBE-TIRE,80/100-21(D 41022 41022-1118 1
TUBE-TIRE,RR 41022A 41022-1120 1
BAND-RIM,80/100-21(D) 41023 41023-1069 1
BAND-RIM,100/100-18(D 41023A 41023-1070 1
PROTECTORBEAD 41024 41024-009 1
PROTECTOR,BEAD 1.60A 41024A 41024-010 1
RIM,FR,1.60X21 41025 41025-1167 1
RIM,RR,2.15X18 41025A 41025-1169 1
SPOKE-INNER,RR,LH 41029 41029-1123 27
SPOKE-INNER,FR,RH 41029A 41029-1152 27
SPOKE-INNER,FR,LH 41029B 41029-1153 9
SPOKE-INNER 41029C 41029-1172 9
NIPPLE-SPOKE 41032 41032-1061 72
WHEEL-SUB ASSY,FR 41090 41090-1051 1 (OPTION)
WHEEL-SUB ASSY,RR 41090A 41090-1053 1 (OPTION)
