Parts Diagrams |

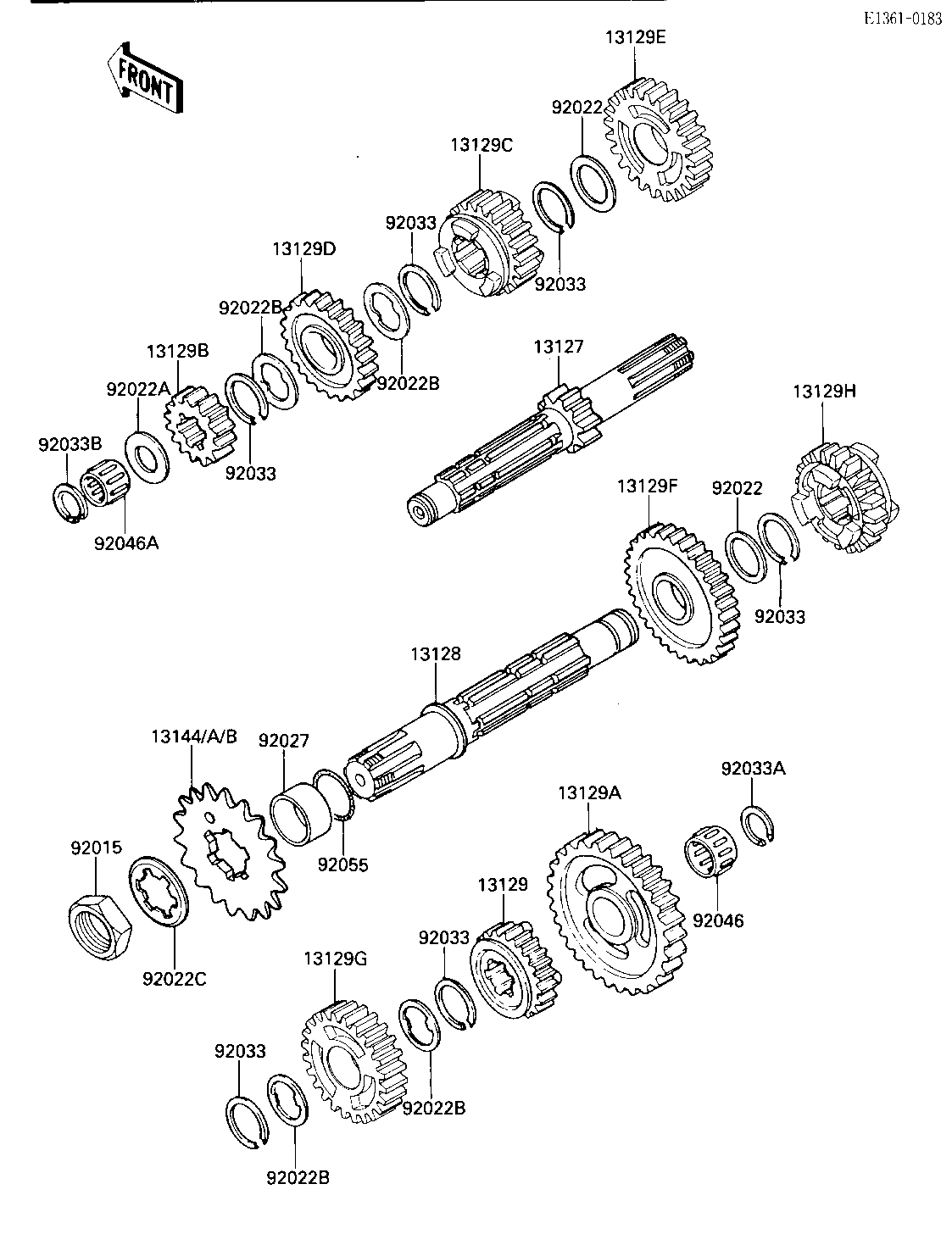

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION IN | 13127 | 13127-1143 | 1 | ||
| SHAFT-TRANSMISSION OU | 13128 | 13128-1142 | 1 | ||
| TOP GEAR,OUTPUT,19T | 13129 | 13129-1133 | 1 | ||
| LOW GEAR,OUTPUT,32T | 13129A | 13129-1180 | 1 | ||
| GEAR,INPUT 2ND,20T | 13129B | 13129-1741 | 1 | ||
| GEAR,INPUT 3RD,22T | 13129C | 13129-1742 | 1 | ||
| GEAR.INPUT 4TH,22T | 13129D | 13129-1743 | 1 | ||
| GEAR,INPUT TOP,24T | 13129E | 13129-1744 | 1 | ||
| GEAR,OUTPUT 2ND,29T | 13129F | 13129-1746 | 1 | ||
| GEAR,OUTPUT 3RD,26T | 13129G | 13129-1747 | 1 | ||
| GEAR,OUTPUT 4TH,21T | 13129H | 13129-1748 | 1 | ||
| ENGINE SPROCKET,15T | 13144 | 13144-069 | 1 | (OPTION) | |
| ENGINE SPROCKET,14T | 13144A | 13144-1005 | 1 | ||
| ENGINE SPROCKET,13T | 13144B | 13144-1027 | 1 | (OPTION) | |
| NUT BEARING ADJUST | 92015 | 42045-008 | 1 | ||
| WASHER-PLAIN 25MM | 92022 | 92022-159 | 2 | ||
| WASHER,17.3X28X1.0 | 92022A | 92022-255 | 1 | ||
| WASHER-LOCK | 92022B | 92024-038 | 4 | ||
| WASHER,LOCK | 92022C | 92024-065 | 1 | ||
| COLLAR,25X32X10.5 | 92027 | 92143-1370 | 1 | ||
| CIRCLIP | 92033 | 92033-026 | 6 | ||
| CIRCLIP,18MM | 92033A | 92033-029 | 1 | ||
| CIRCLIP,16MM | 92033B | 92033-032 | 1 | ||
| BEARING-NEEDLE,KT2026 | 92046 | 92046-1170 | 1 | ||
| BEARING-NEEDLE | 92046A | 92046-1184 | 1 | ||
| "O" RING | 92055 | 92055-035 | 1 |
| SHAFT-TRANSMISSION IN | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OU | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOP GEAR,OUTPUT,19T | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOW GEAR,OUTPUT,32T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 2ND,20T | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD,22T | |
| REF # | 13129C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR.INPUT 4TH,22T | |
| REF # | 13129D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT TOP,24T | |
| REF # | 13129E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,29T | |
| REF # | 13129F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,26T | |
| REF # | 13129G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,21T | |
| REF # | 13129H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ENGINE SPROCKET,15T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| ENGINE SPROCKET,14T | |
| REF # | 13144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ENGINE SPROCKET,13T | |
| REF # | 13144B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NUT BEARING ADJUST | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN 25MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X28X1.0 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-LOCK | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,25X32X10.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,18MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,16MM | |
| REF # | 92033B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,KT2026 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
