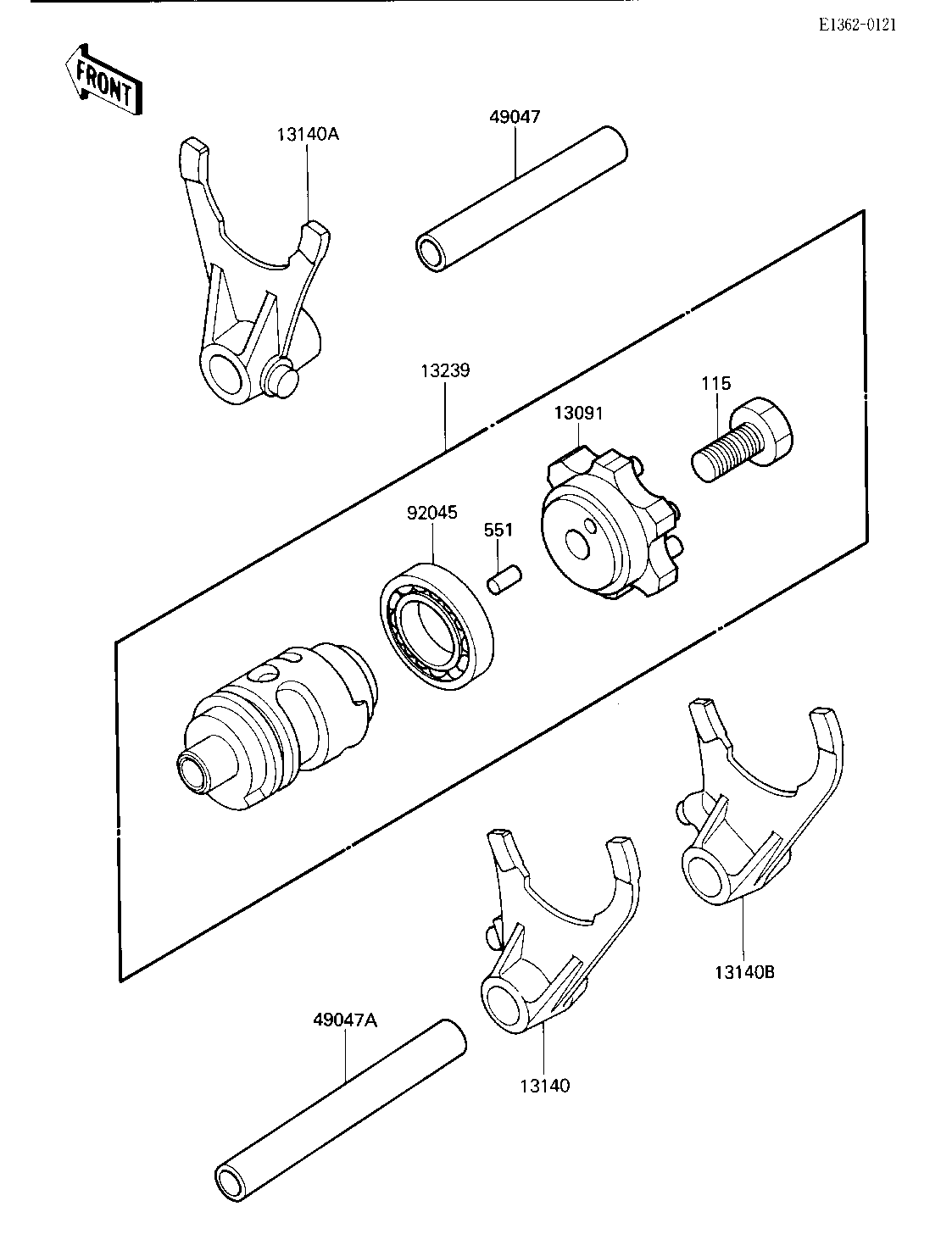

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CHANGE DRUM 13091 13091-1555 1
FORK-SHIFT,2ND&3RD 13140 13140-1058 1
FORK-SHIFT,4TH&TOP 13140A 13140-1059 1
FORK-SHIFT,LOW 13140B 13140-1142 1
DRUM-ASSY-CHANGE 13239 13239-1143 1
ROD-SHIFT,L=64.5 49047 49047-1063 1
ROD-SHIFT,L=81 49047A 49047-1064 1
BEARING,BALL,#6905 92045 92045-036 1
BOLT-SMALL-UPSET,8X18 115 115G0818 1
PIN,DOWEL,4X8 551 551A0408 1
