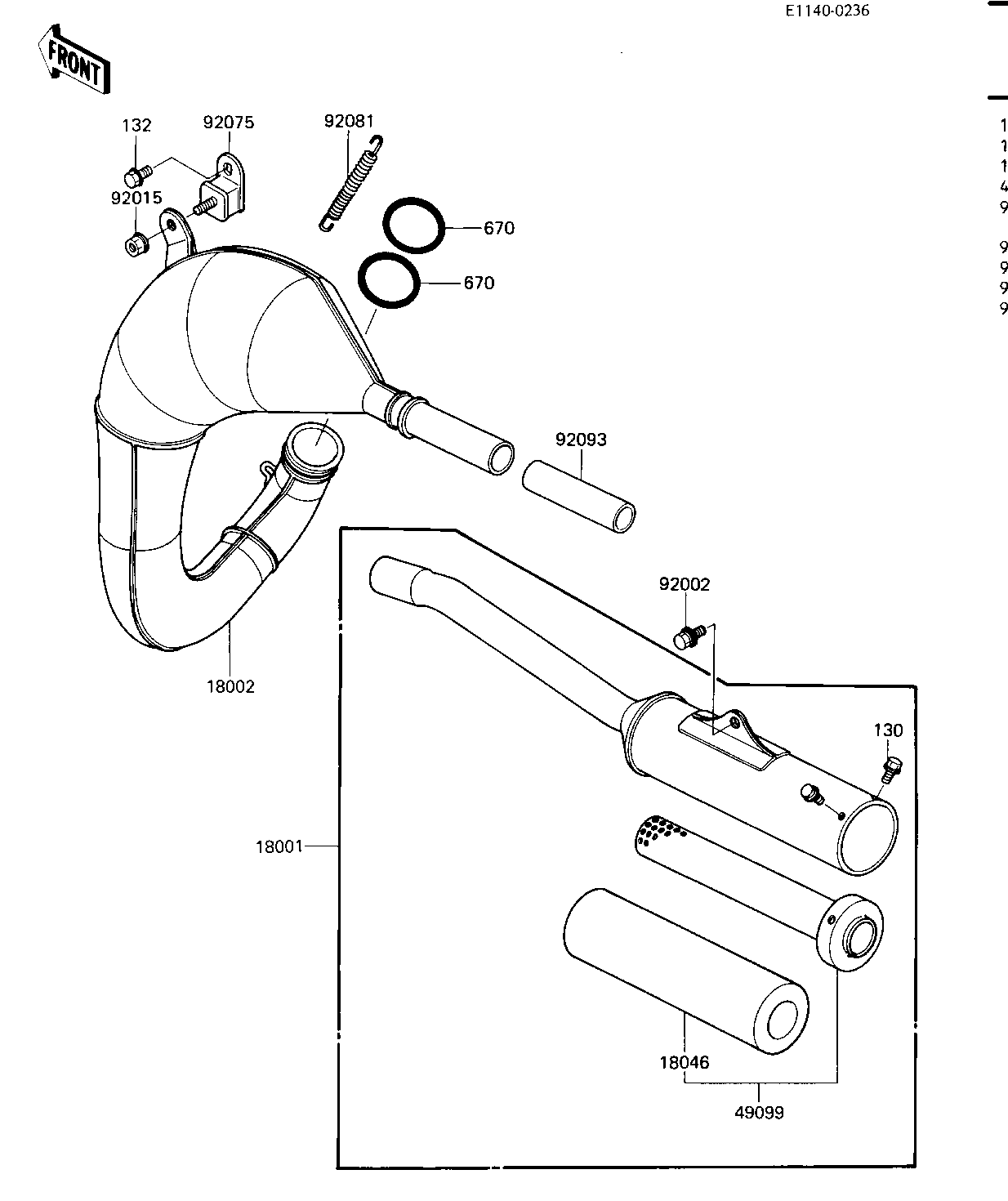

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MUFFLER 18001 18001-1635 1
BODY-COMP-MUFFLER 18002 18002-1698 1
WOOL,BAFFLE PIPE 18046 18046-1020 1
BAFFLE-PIPE MUFFLER,M 49099 49099-1113 1
BOLT,6X14 92002 92150-1340 1
NUT-6MM 92015 92015-1078 2
DAMPER,MUFFLER 92075 92075-1891 1
SPRING-CONNECTOR 92081 18071-003 1
SEAL,MUFFLER JOINT 92093 92093-1200 1
BOLT-FLANGED 130 130G0508 2
BOLT-FLANGED-SMALL 132 132G0612 1
"0" RING,36M/M 670 670E3036 2
