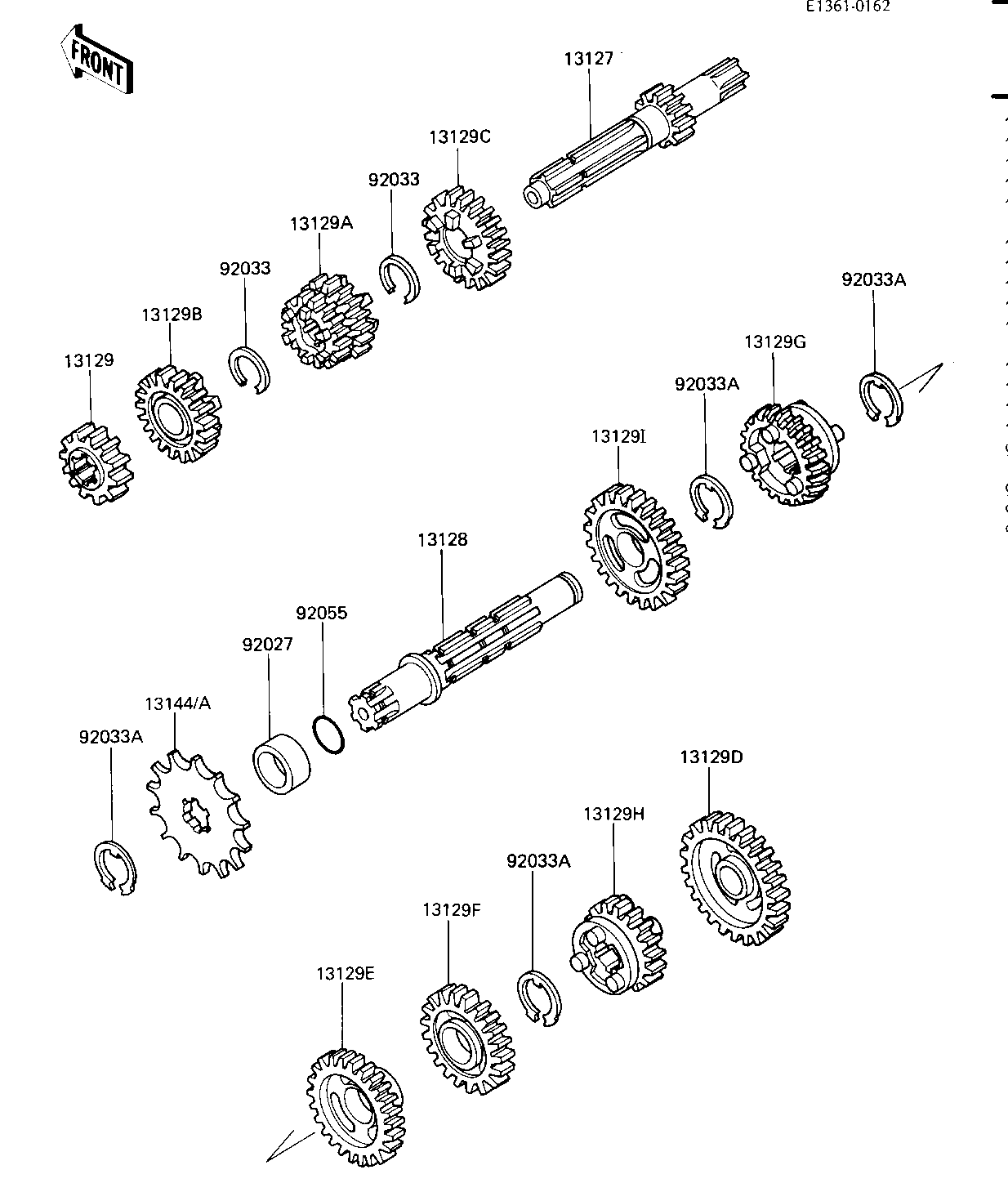

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION IN 13127 13127-1129 1
SHAFT-TRANSMISSION OU 13128 13128-1126 1
GEAR,INPUT 2ND,16T 13129 13260-1014 1
GEAR,INPUT 3RD&4TH,18 13129A 13129-1722 1
GEAR,INPUT 5TH,22T 13129B 13260-1022 1
GEAR,INPUT 6TH,23T 13129C 13260-1015 1
GEAR,OUTPUT LOW,33T 13129D 13129-1725 1
GEAR,OUTPUT 3RD,27T 13129E 13129-1727 1
GEAR,OUTPUT 4TH,25T 13129F 13129-1728 1
GEAR,OUTPUT 5TH,24T 13129G 13129-1729 1
GEAR,OUTPUT 6TH,22T 13129H 13129-1730 1
GEAR-TRANSMISSION SPU 13129I 13129-1827 1
SPROCKET,ENGINE,14T 13144 13144-1022 1
SPROCKET,ENGINE,13T 13144A 13144-1023 1
COLLAR,ENG SPROCKET 92027 92027-1077 1
CIRCLIP 92033 92033-028 2
RING-SNAP,18MM 92033A 92033-1079 4
"0" RING 92055 92055-022 1
