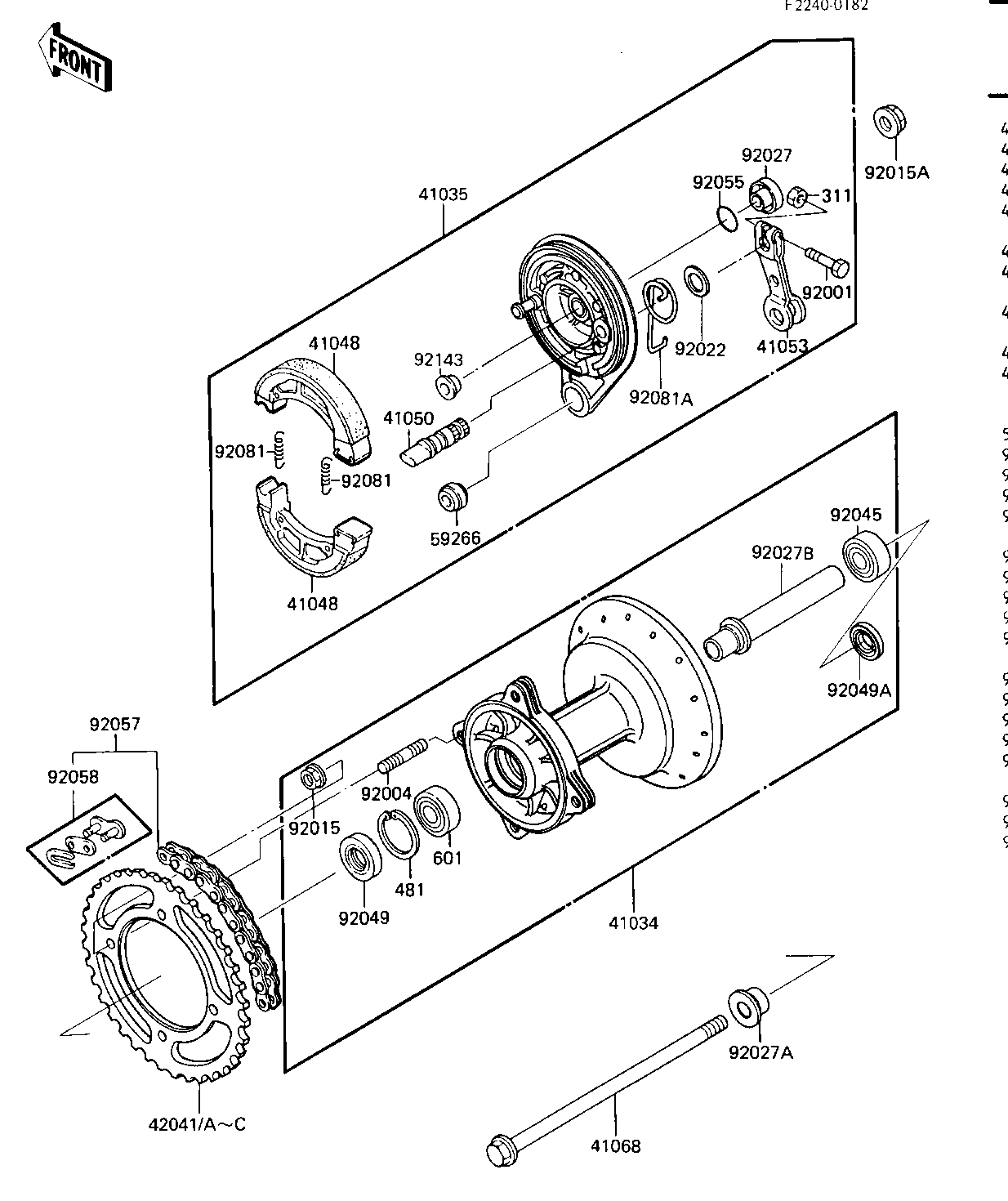

1987 Big Wheel - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,REAR BRAKE 41034 41034-1151 1
PANEL-ASSY-BRAKE,RR 41035 41035-1214 1
SHOE-BRAKE 41048 41048-1083 2
CAM-BRAKE,RR 41050 41050-1061 1
LEVER-BRAKE CAM 41053 41053-1062 1
AXLE,RR 41068 41068-1201 1
SPROCKET-HUB,54T 42041 42041-1223 1 OPTION
SPROCKET-HUB,53T 42041A 42041-1246 1 OPTION
SPROCKET-HUB,55T 42041B 42041-1247 1
SPROCKET-HUB 42041C 42041-1248 1 OPTION
JOINT-BALL,BRAKE PANE 59266 59266-1013 1
BOLT,5X25 92001 92001-1695 1
STUD,8X14 92004 92004-1053 4
NUT-8MM 92015 92015-1022 4
NUT-12MM 92015A 92015-1156 1
WASHER,13X26X0.5 92022 92022-1715 1
COLLAR,BRAKE PANEL,RH 92027 92027-1542 1
COLLAR,REAR AXLE,14.5 92027A 92027-1813 1
COLLAR,L=113.5 92027B 92027-1927 1
BEARING-BALL,TMB201LL 92045 92045-1062 1
SEAL-OIL,DD20377 92049 92049-1096 1
SEAL-OIL,DC25323.5 92049A 92049-1232 1
"O" RING 92055 92055-104 1
DR CHAIN DID420M 126L 92057 92057-1207 1
JOINT-CHAIN 92058 92058-1053 1
SPRING,BRAKE SHOE 92081 92081-1766 2
SPRING,BRAKE CAM LEVE 92081A 92081-1897 1
COLLAR 92143 92143-1022 1
NUT-HEX 311 311G0500 1
CIRCLIP.37MM 481 481J3700 1
BEARING-BALL,#6201UUC 601 601B6301UU 1
