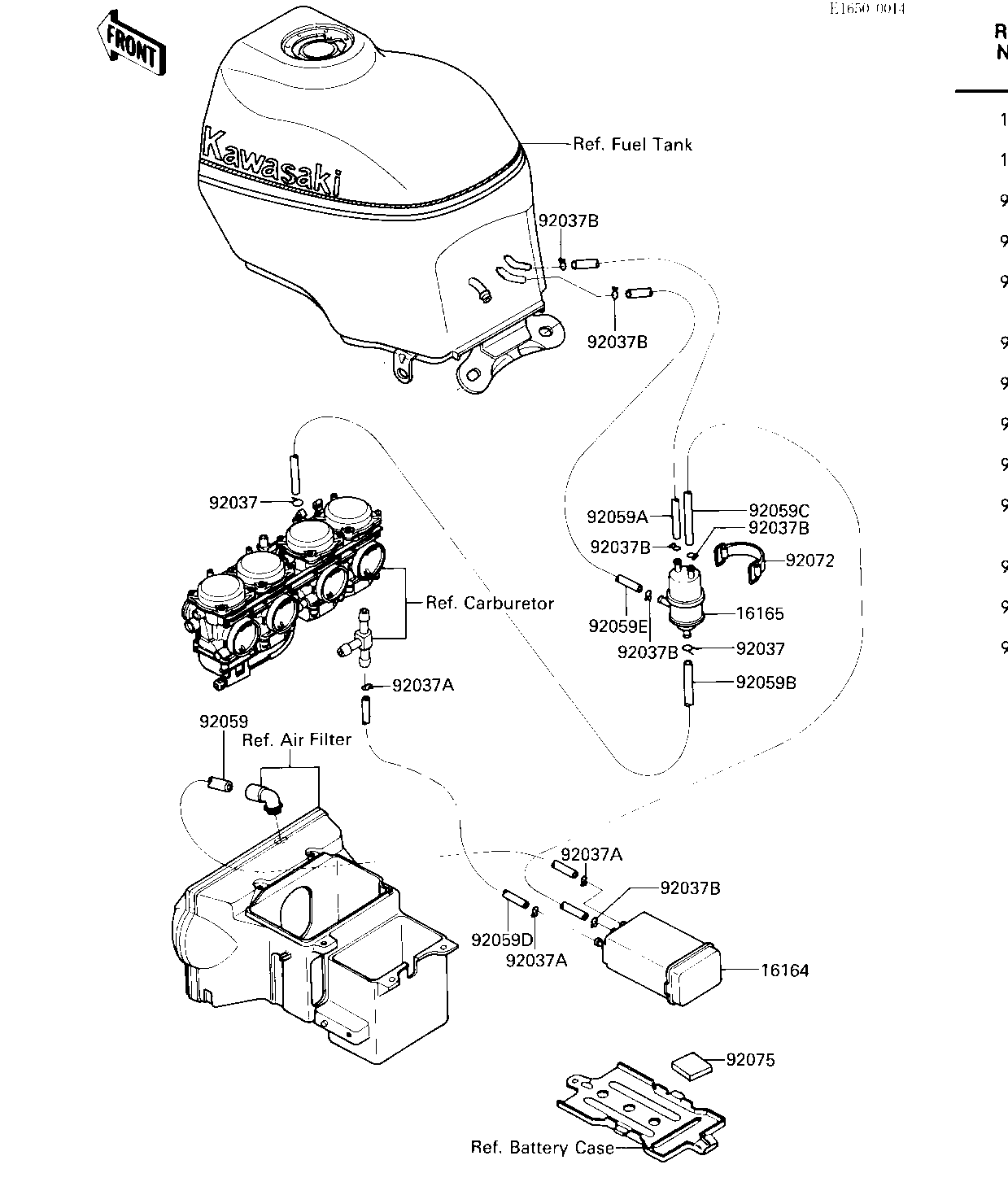

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CANISTER 16164 16164-1052 1 CA
SEPARATOR 16165 16165-1001 1 CA
CLAMP-PIPE 92037 92037-072 2 CA
CLAMP-HOSE 92037A 92037-1104 3 CA
CLAMP,CHAIN OILER 92037B 92037-147 6 CA
TUBE,7X12X1060,GREEN 92059 92059-1421 1 CA
TUBE,5X10X510,BLUE 92059A 92059-1527 1 CA
TUBE,4X9X640,WHITE 92059B 92059-1574 1 CA
TUBE 92059C 92059-1604 1 CA
TUBE 92059D 92059-1605 1 CA
TUBE 92059E 92059-1606 1 CA
BAND,TOOL 92072 92072-066 1 CA
DAMPER,ENGINE GUARD 92075 92075-1215 1 CA
