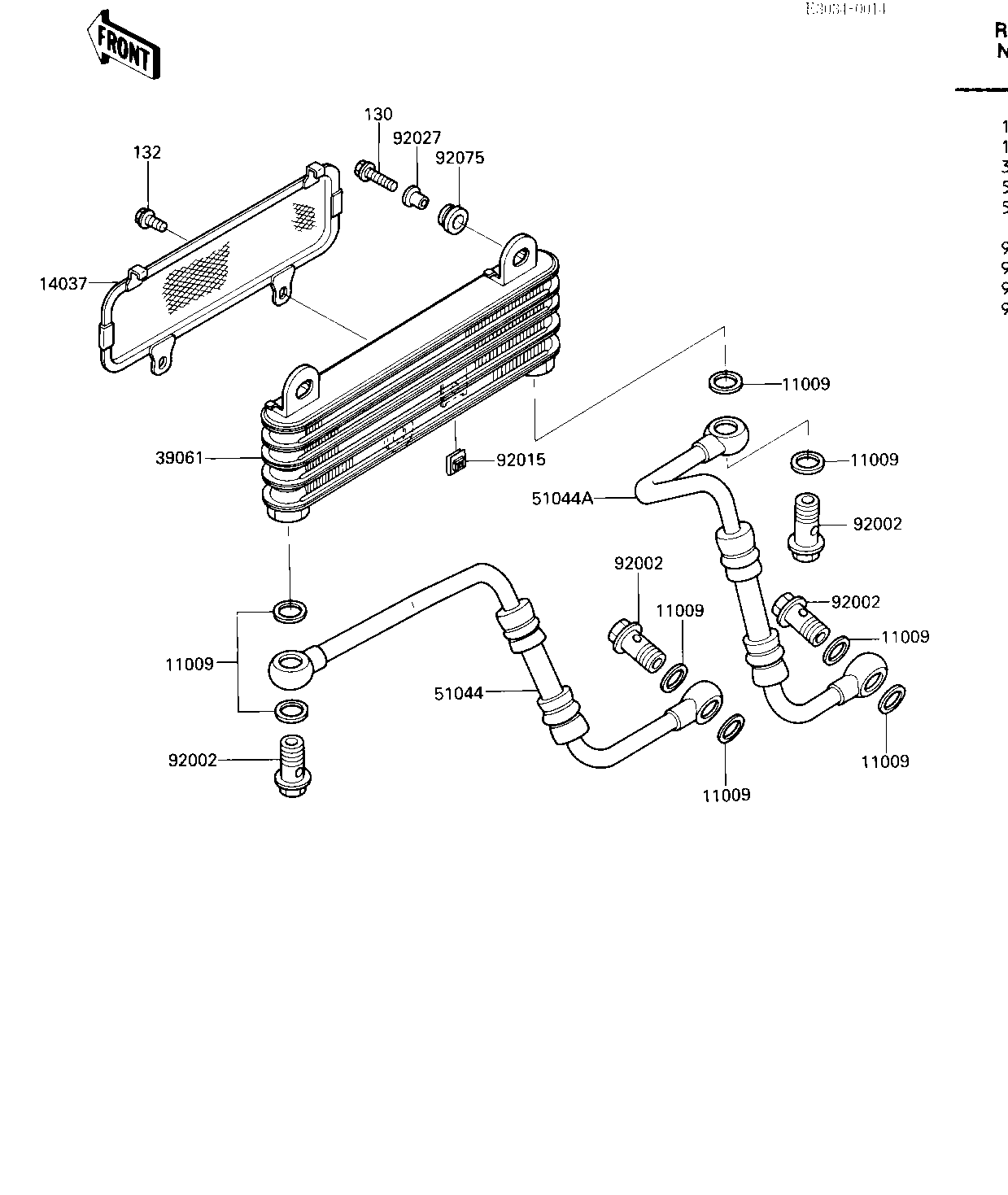

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,14X19.5X1.4 11009 11009-1461 8
SCREEN,OIL COOLER 14037 14037-1071 1
OIL COOLER 39061 39061-1074 1
TUBE-ASSY,LH 51044 51044-1065 1
TUBE-ASSY,RH 51044A 51044-1066 1
BOLT,14X28.5 92002 92001-1930 4
NUT 92015 92015-1487 2
COLLAR,FLANGED,L=12.1 92027 92027-1651 3
DAMPER RUBBER 92075 92075-277 3
BOLT-FLANGED,6X20 130 130J0620 3
BOLT-FLANGED-SMALL,6X 132 132J0610 2
