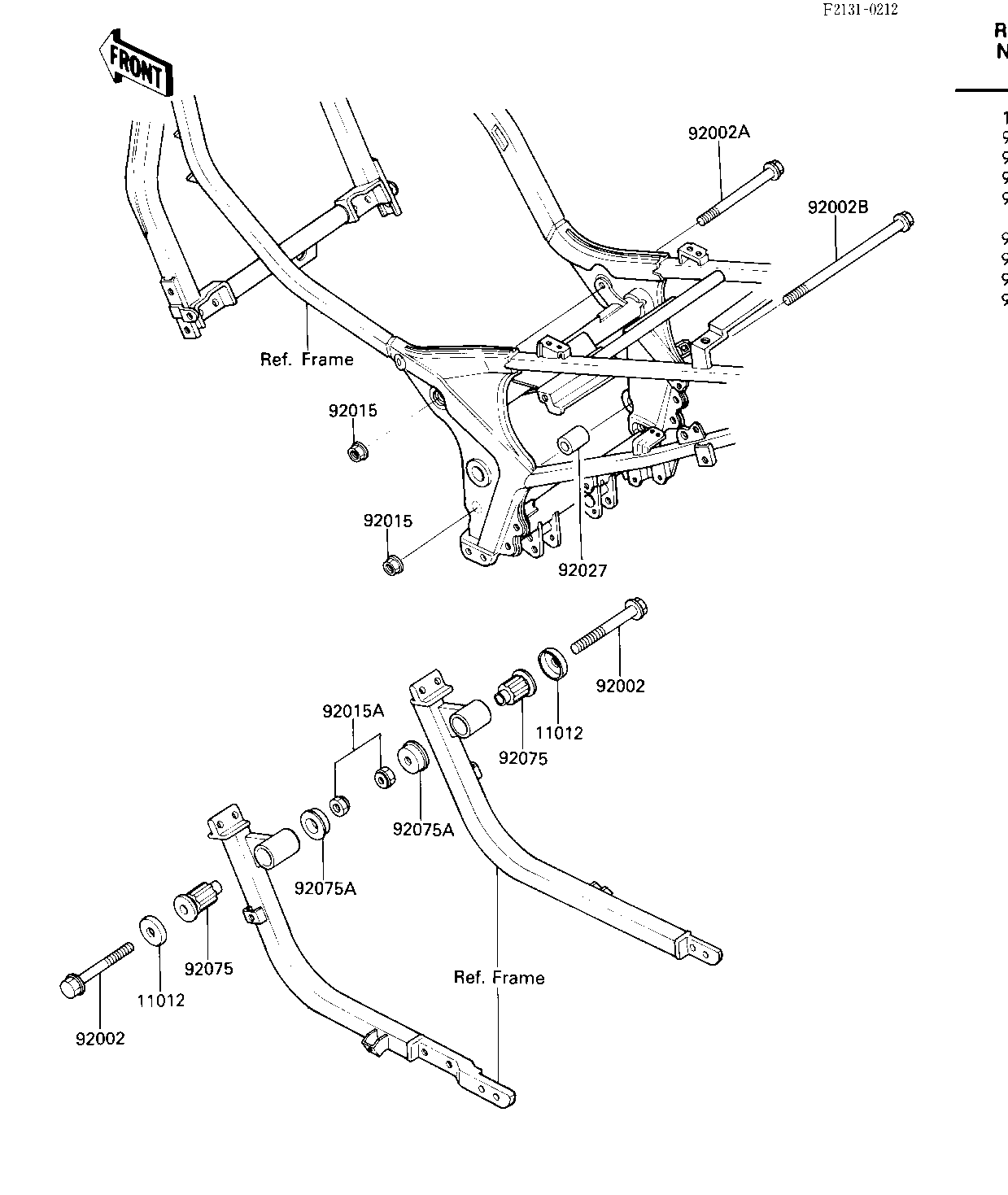

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,ENGINE BRACKET 11012 11012-1228 2
BOLT,FLANGED,10X105 92002 92002-1491 2
BOLT,FLANGED,10X138 92002A 92002-1492 1
BOLT 92002B 92002-1587 1
NUT,FLANGED,10MM 92015 92015-1428 2
NUT,10MM 92015A 92015-1429 2
COLLAR,11X22X31.5 92027 92027-1515 2
DAMPER,ENGINE BRACKET 92075 92075-1377 2
DAMPER 92075A 92075-1274 2
