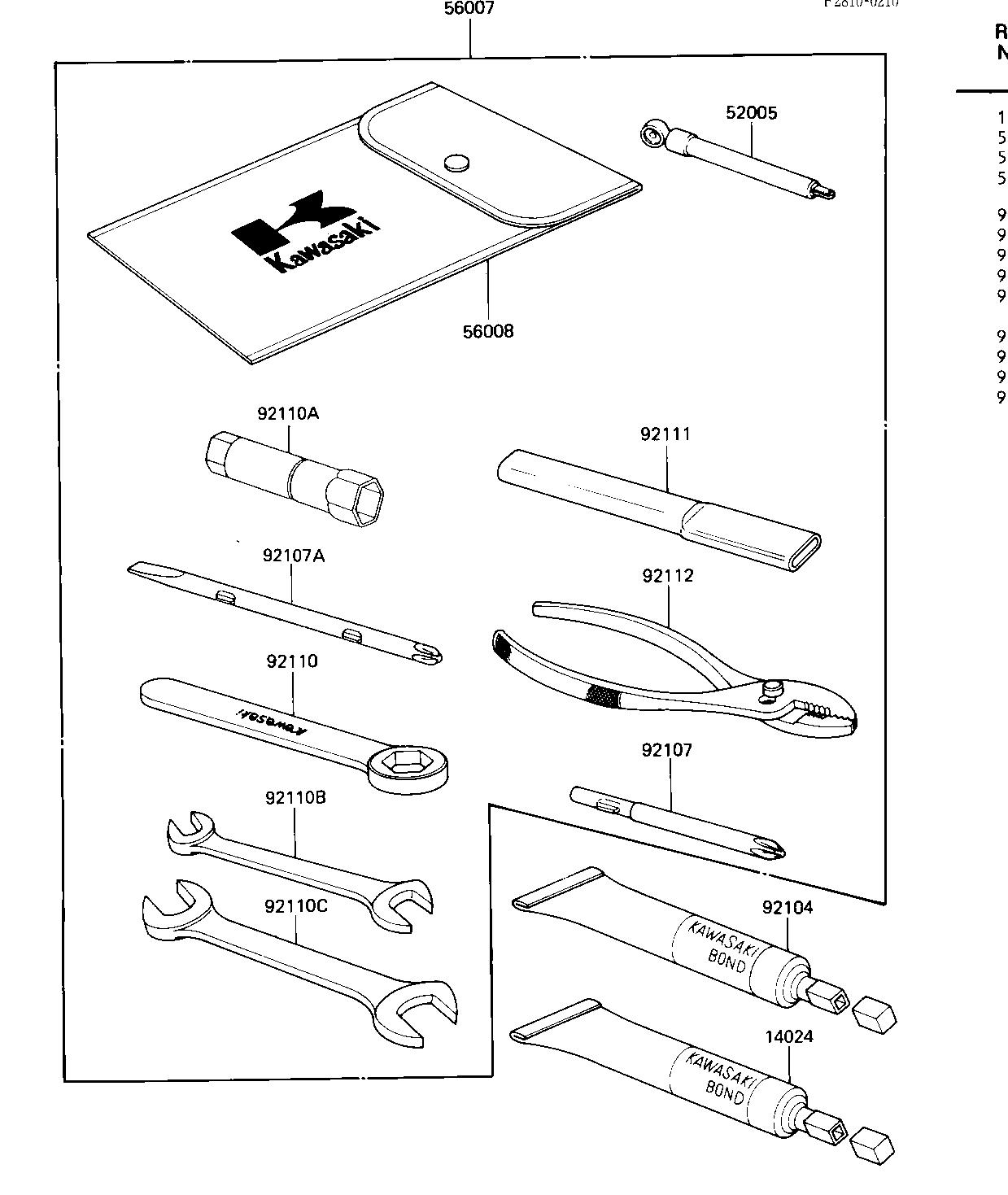

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOND,#10 14024 56019-120 1
GAUGE,AIR,3.5KG/CM2 52005 52005-1031 1
TOOLKIT 56007 56007-1301 1
BAG,TOOLKIT 56008 56008-1019 1
GASKET-LIQUID,BLACK 92104 92104-1003 1
SCREW DRIVER #3 PHLIP 92107 92107-005 1
92107-1052 (Canada) 92107A 92107-1051 1
TOOL-WRENCH,BOX END,2 92110 92110-1150 1
TOOL-WRENCH 92110A 92110-1111 1
TOOL-WRENCH,OPEN END,10X12 92100B 92110-1117 1
TOOL-WRENCH,OPEN END,14X17 92110C 92110-1153 1
TOOL-BAR 92111 92111-1051 1
PLIERS,160MM 92112 92112-003 1
