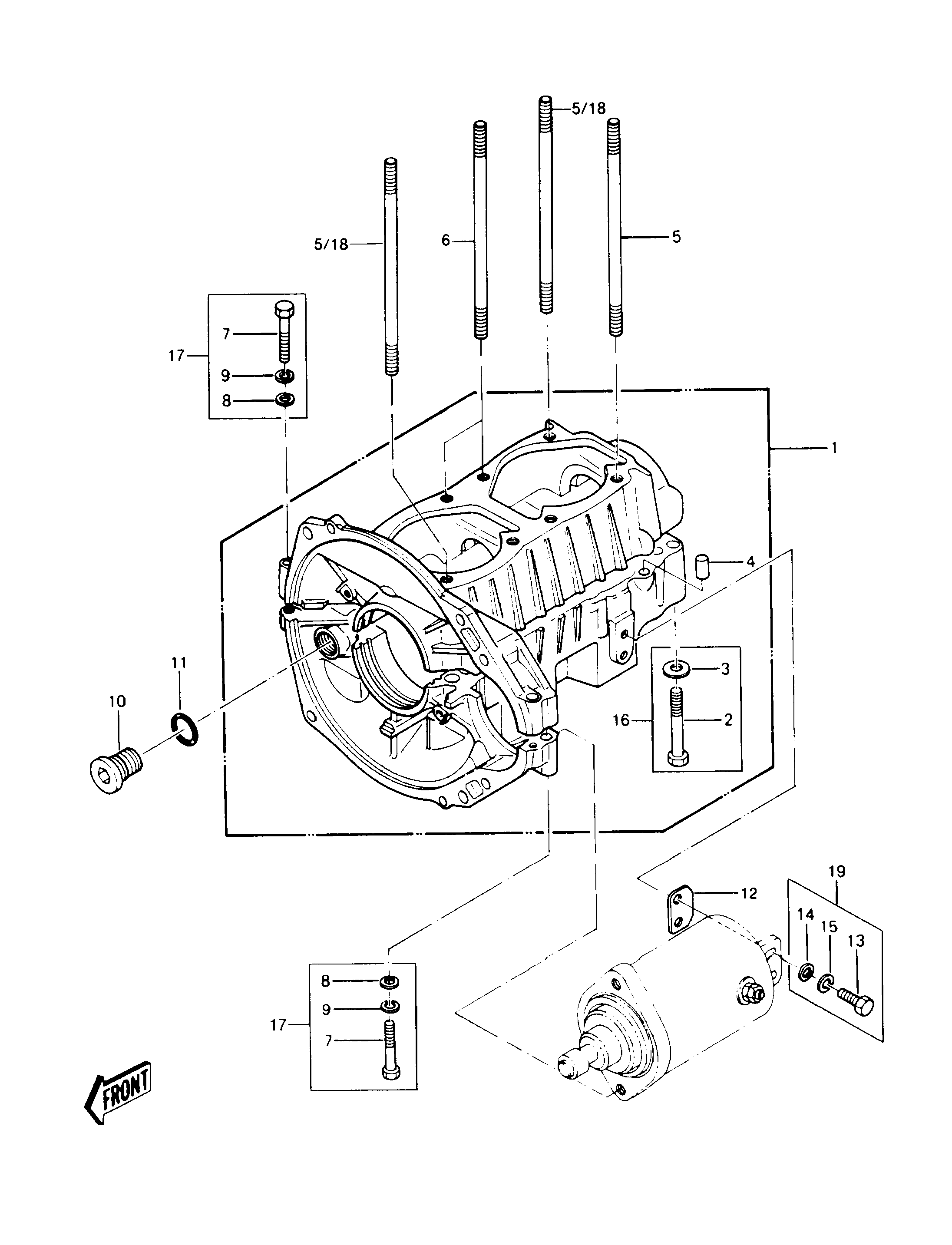

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
JOINT 10 59071-516 1
O RING,16MM 11 670B2016 1
SHIM,STARTER,T=0.6 12A 92025-3013 AR
SHIM,STARTER,T=0.8 12B 92025-3014 AR
SHIM,STARTER,T=0.4 12 92025-3012 AR
BOLT,6X20 13 110R0620 2
WASHER-PLAIN-SMALL,6MM 14 410S0600 2
WASHER-SPRING,6MM 15 461S0600 2
SET-CRANKCASE 1 14001-3027-YR 1
BOLT,8X60 2 92001-3033 10
WASHER-PLAIN-SMALL,8MM 3 410S0800 10
PIN,DOWEL,6.3X8X14 4 92042-007 2
STUD,8X167 5 92004-507 6 ( - TC440B-046483 )
STUD,8X170 6 92004-2084 2
BOLT,6X40 7 110R0640 3
WASHER-PLAIN-SMALL,6MM 8 410S0600 3
WASHER-SPRING,6MM 9 461S0600 3
