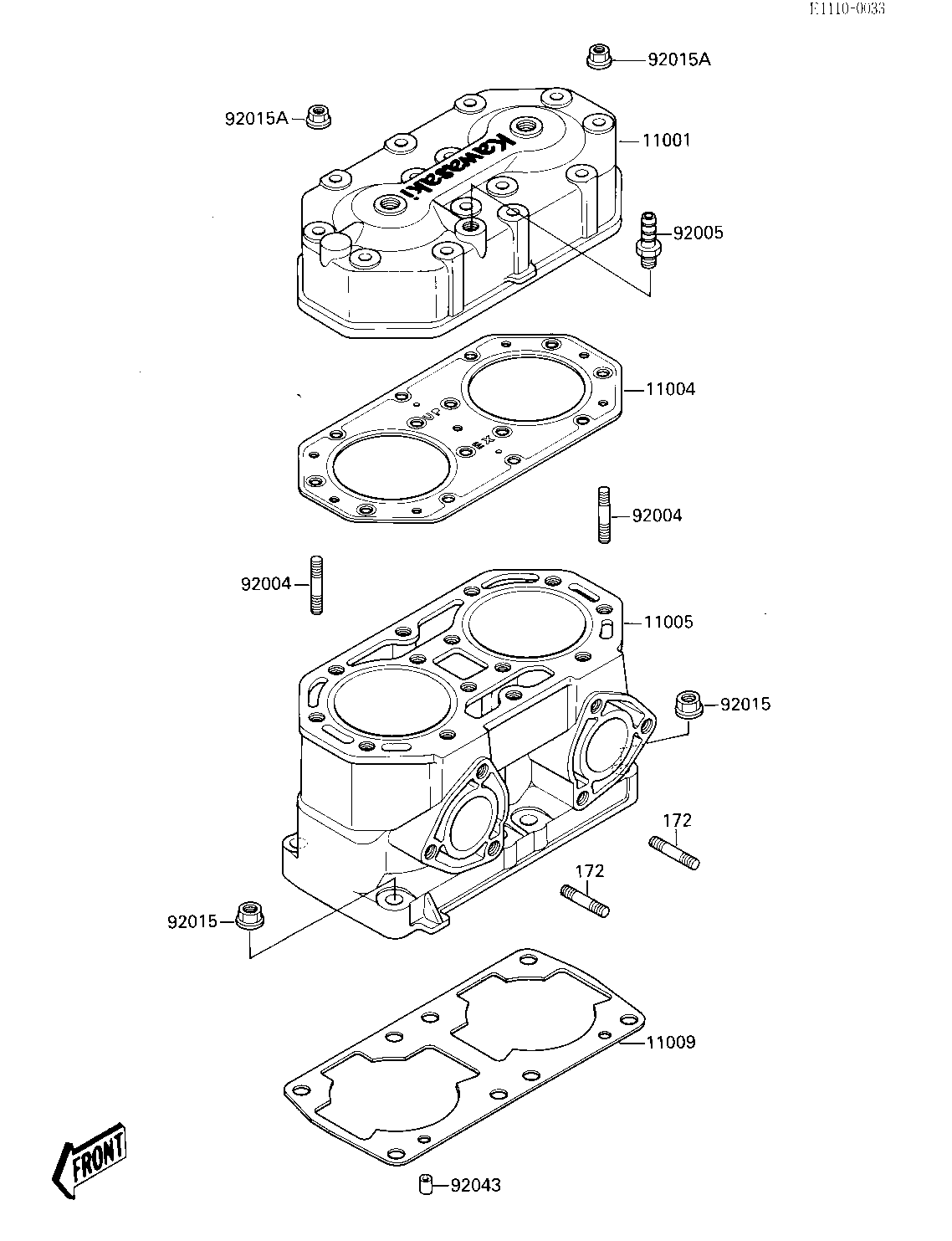

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-3710 1
GASKET-HEAD 11004 11004-3710 1
CYLINDER-ENGINE 11005 11005-3708 1
GASKET,CYLINDER BASE 11009 11009-3775 1
STUD,8X43 92004 92004-3715 14
JOINT,HOSE 92005 92005-3001 1
NUT,10MM 92015 92015-1649 8
NUT,8MM 92015A 92015-3709 14
PIN-DOWEL 92043 92042-007 2
BOLT-STUD 172 172R0830 6
