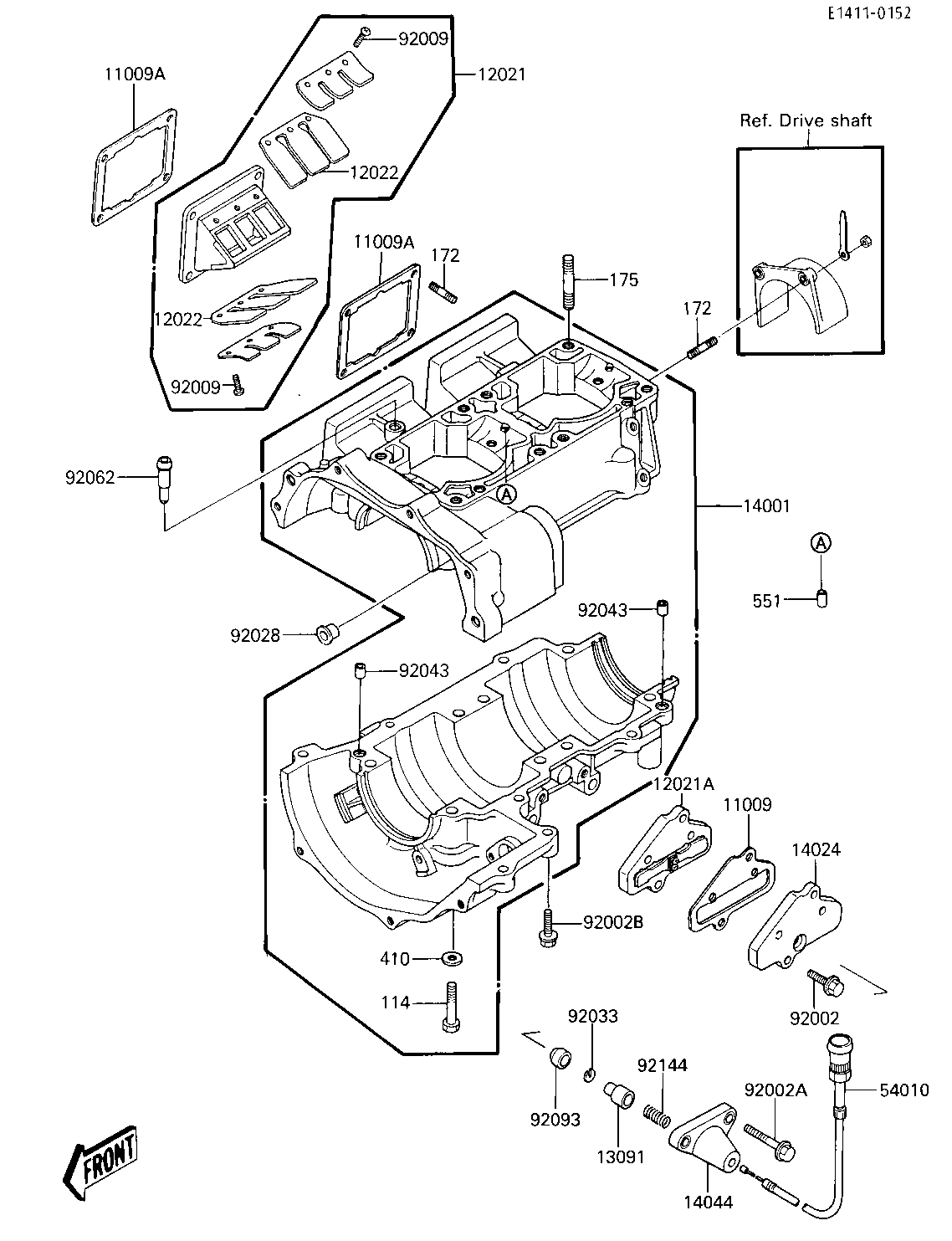

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,CONTROL VALVE | 11009 | 11060-3723 | 1 | ||
GASKET,REED VALVE | 11009A | 11060-3703 | 4 | ||
VALVE-ASSY-REED | 12021 | 12021-3702 | 2 | ||
VALVE-ASSY-REED,CONTR | 12021A | 12021-3707 | 1 | ||
VALVE-REED | 12022 | 12022-3701 | 4 | ||
HOLDER | 13091 | 13091-3707 | 1 | ||
SET-CRANKCASE | 14001 | 14001-5243 | 1 | ||
COVER,CONTROL VALVE | 14024 | 14024-3716 | 1 | ||
HOLDER-CABLE | 14044 | 14044-3702 | 1 | ||
CABLE,CONTROL | 54010 | 54010-3707 | 1 | ||
BOLT,6X25 | 92002 | 92002-3714 | 2 | ||
BOLT,6X45 | 92002A | 92002-3717 | 2 | ||
BOLT,6X30 | 92002B | 92002-3726 | 7 | ||
SCREW,REED VALVE | 92009 | 92009-1014 | 12 | ||
BUSHING | 92028 | 92028-3718 | 1 | ||
RING-SNAP | 92033 | 92033-3708 | 1 | ||
PIN,DOWEL,10X8.2X14 | 92043 | 92043-1037 | 2 | ||
NOZZLE | 92062 | 92062-3705 | 1 | ||
SEAL | 92093 | 92093-3703 | 1 | ||
SPRING | 92144 | 92144-3701 | 1 | ||
BOLT-SMALL | 114 | 114R0865 | 8 | ||
BOLT-STUD | 172 | 172R0620 | 10 | ||
BOLT-STUD-FINE | 175 | 175R1035 | 8 | ||
WASHER | 410 | 410S0800 | 8 | ||
PIN,DOWEL | 551 | 551R0612 | 1 |
GASKET,CONTROL VALVE | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,REED VALVE | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
VALVE-ASSY-REED | |
REF # | 12021 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE-ASSY-REED,CONTR | |
REF # | 12021A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-REED | |
REF # | 12022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
HOLDER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,CONTROL VALVE | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CABLE | |
REF # | 14044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CABLE,CONTROL | |
REF # | 54010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X45 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X30 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
SCREW,REED VALVE | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL,10X8.2X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NOZZLE | |
REF # | 92062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SMALL | |
REF # | 114 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BOLT-STUD | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
BOLT-STUD-FINE | |
REF # | 175 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PIN,DOWEL | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
