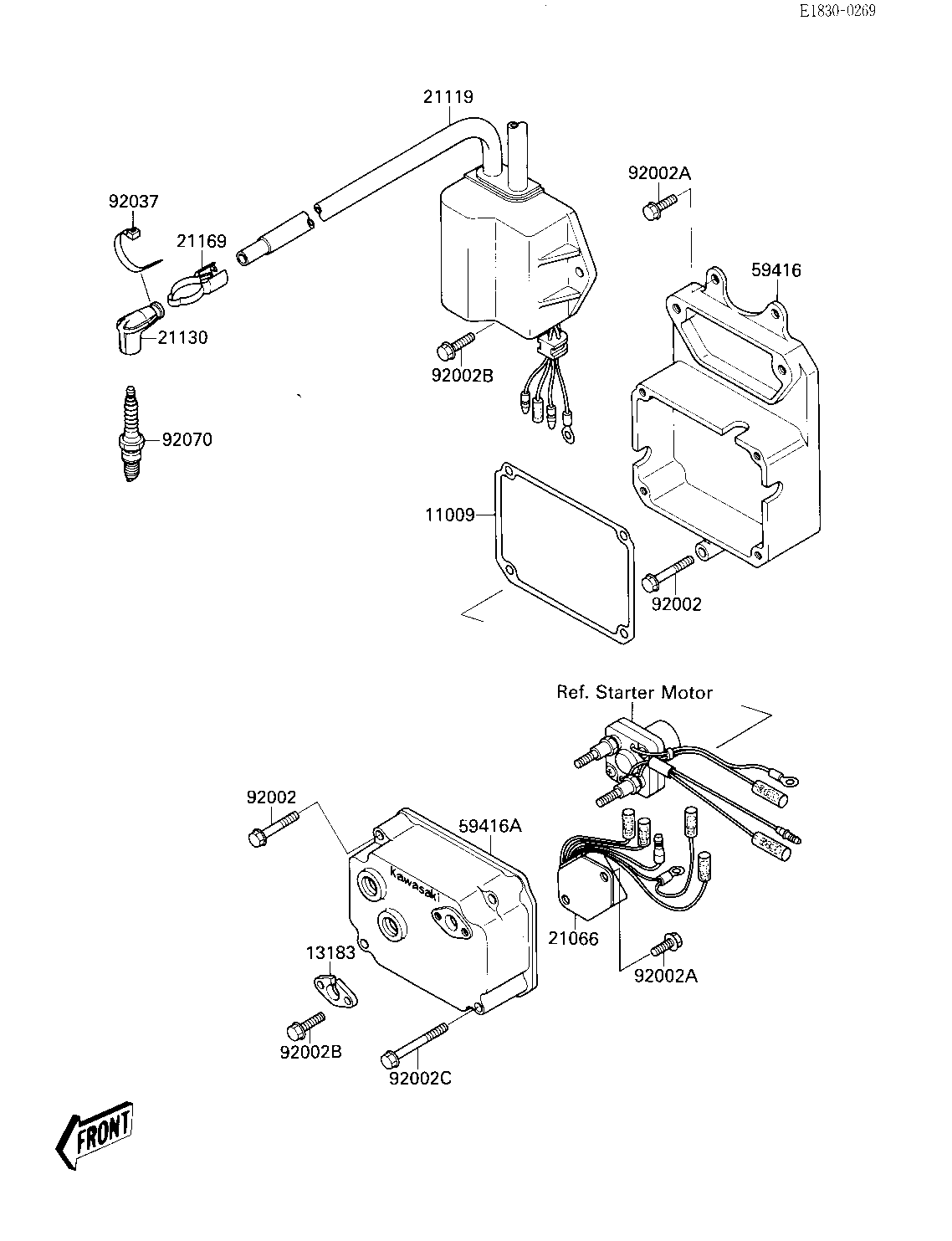

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,ELECTRIC CASE 11009 11060-3707 1
PLATE 13183 13183-3712 1
REGULATOR-VOLTAGE 21066 21066-3703 1
IGNITER 21119 21119-3711 1
CAP,SPARK PLUG 21130 21130-1006 2
TERMINAL,PLUG CAP 21169 21169-001 2
CASE-ELECTRIC,RR 59416 59416-3707 1
CASE-ELECTRIC,FR 59416A 59416-3708 1
BOLT 92002 92002-3716 3
BOLT,6X16 92002A 92002-3728 4
BOLT,6X20 92002B 92002-3755 4
BOLT 92002C 92002-3772 2
CLAMP,SPARK PLUG CAP 92037 92037-1173 2
SPARK PLUG B7ES 92070 92070-3003 2
