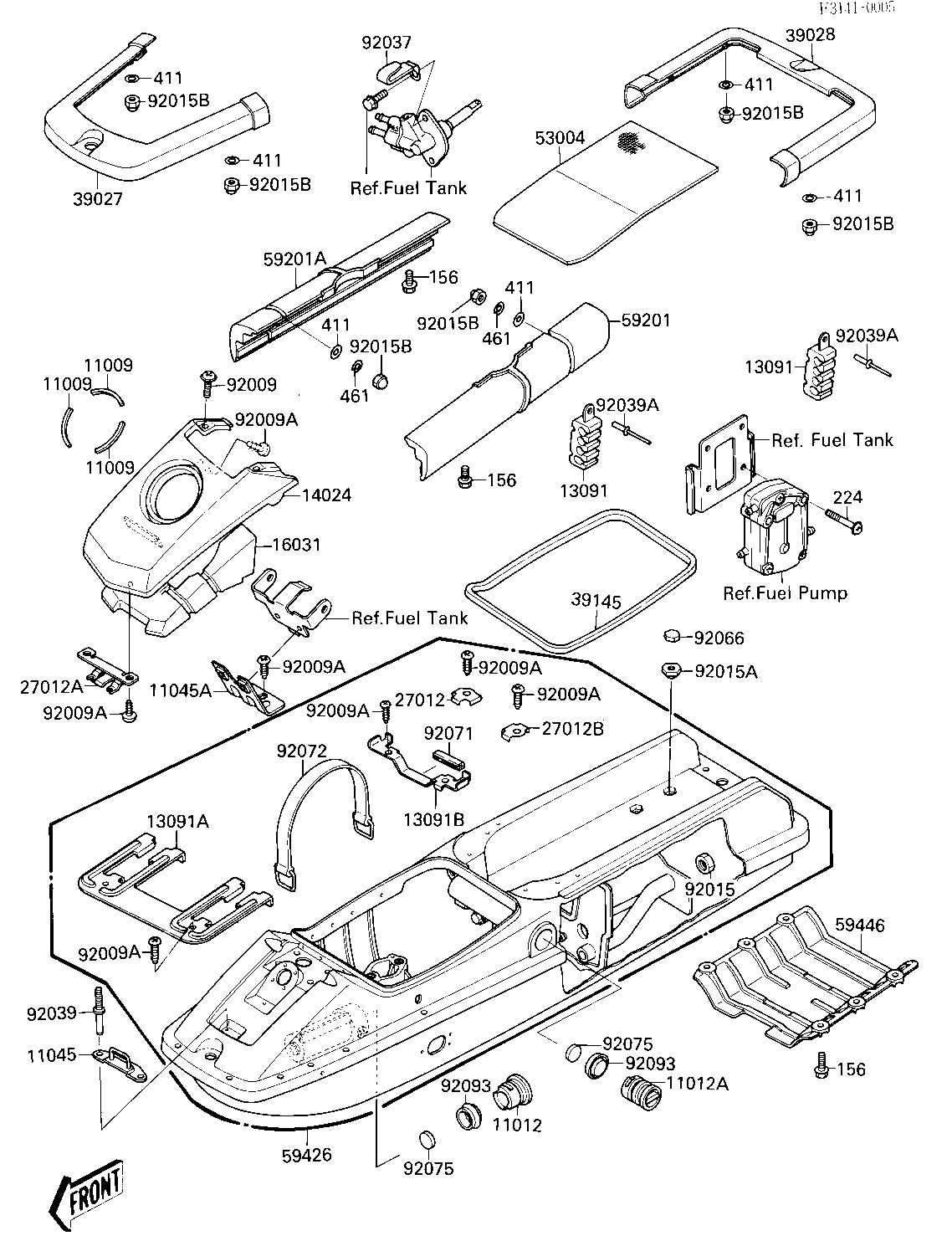

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,CAP | 11009 | 11009-3732 | 3 | ||
CAP,FIRE EXT | 11012 | 11012-3708 | 1 | ||
CAP | 11012A | 11012-3746 | 1 | ||
BRACKET,FRONT DECK | 11045 | 11045-3730 | 1 | ||
BRACKET,CENTER | 11045A | 11046-3836 | 1 | ||
HOLDER | 13091 | 13091-3715 | 3 | ||
HOLDER | 13091A | 13091-3722 | 1 | ||
HOLDER | 13091B | 13091-3725 | 1 | ||
COVER,TANK CAP,S,RED | 14024 | 14024-5197-H1 | 1 | ||
FLOAT | 16031 | 16031-3784 | 1 | ||
UNAVAILABLE IN PRICE BOOK | 27012 | 127012-3713 | 1 | ||
HOOK,FRONT DECK | 27012A | 27012-3755 | 1 | ||
HOOK | 27012B | 27012-501 | 1 | ||
BUMPER-FRONT | 39027 | 39027-3706 | 1 | ||
BUMBER,SET | 39028 | 99996-1140 | 1 | ||
TRIM-SEAL | 39145 | 39145-3706 | 1 | ||
MAT,DECK | 53004 | 53004-3722 | 1 | ||
BUMPER,SIDE,LH | 59201 | 59201-3707 | 1 | ||
BUMPER,SIDE,RH | 59201A | 59201-3708 | 1 | ||
HULL,COMP,JS650A,WHT | 59426 | 59426-5510-8C | 1 | ||
COVER-JET PUMP | 59446 | 59446-3705 | 1 | ||
SCREW | 92009 | 92009-3726 | 2 | ||
SCREW 0.22 X 0.563 | 92009A | 92011-561 | 11 | ||
NUT,20MM | 92015 | 92015-3738 | 1 | ||
NUT | 92015A | 92015-3744 | 4 | ||
NUT,CAP,6MM | 92015B | 92015-3755 | 24 | ||
CLAMP,L=100 | 92037 | 92037-3736 | 1 | ||
RIVET | 92039 | 92039-3702 | 2 | ||
RIVET | 92039A | 92039-3714 | 3 | ||
PLUG | 92066 | 92066-3713 | 2 | ||
GROMMET | 92071 | 92071-3755 | 1 | ||
BAND,L=384 | 92072 | 92072-3713 | 2 | ||
DAMPER | 92075 | 92075-3719 | 2 | ||
SEAL | 92093 | 92093-3704 | 2 | ||
BOLT-WP,6X20 | 156 | 156R0620 | 14 | ||
SCREW-PAN-WP-CROS,6X4 | 224 | 224R0640 | 2 | ||
WASHER | 411 | 411S0600 | 24 | ||
WASHER-SPRING,6MM | 461 | 461S0600 | 10 |
