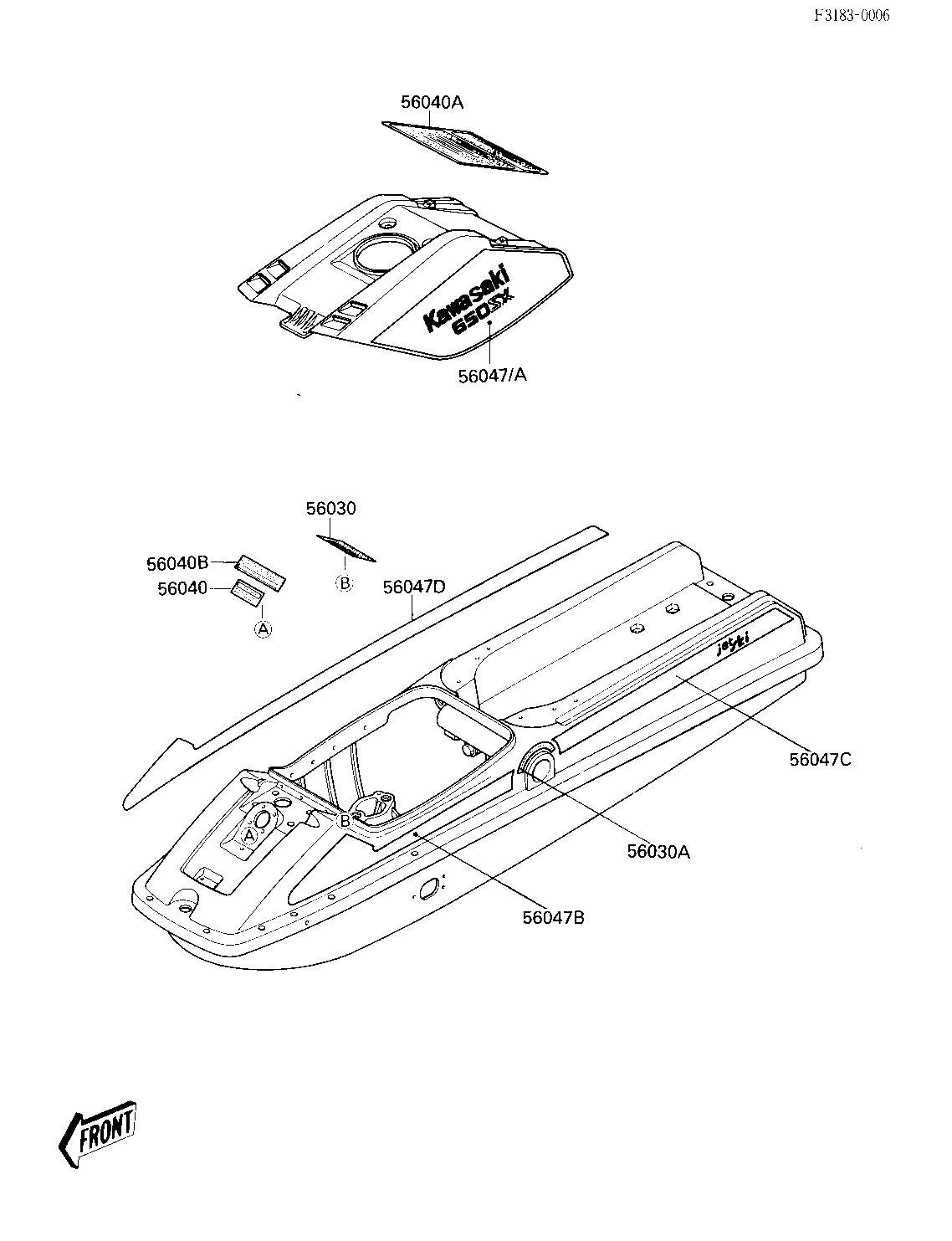

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,OIL 56030 56030-3721 1
LABEL EXTINGUISHER 56030A 56030-3726 1
LABEL,WARNING 56040 56040-3712 1
LABEL-WARNING MAINTNE 56040A 56040-3729 1
LABEL-WARNING-BRK-IN 56040B 56040-3738 1
PATTRN,ENGINE HOOD,LH 56047 56047-1513 1
PATTRN,ENGINE HOOD,RH 56047A 56047-1514 1
PATTRN,HULL-COMP,LH F 56047B 56047-1515 1
PATTRN,HULL-COMP,LH R 56047C 56047-1516 1
PATTERN,HULL-COMP,RH 56047D 56047-1517 1
