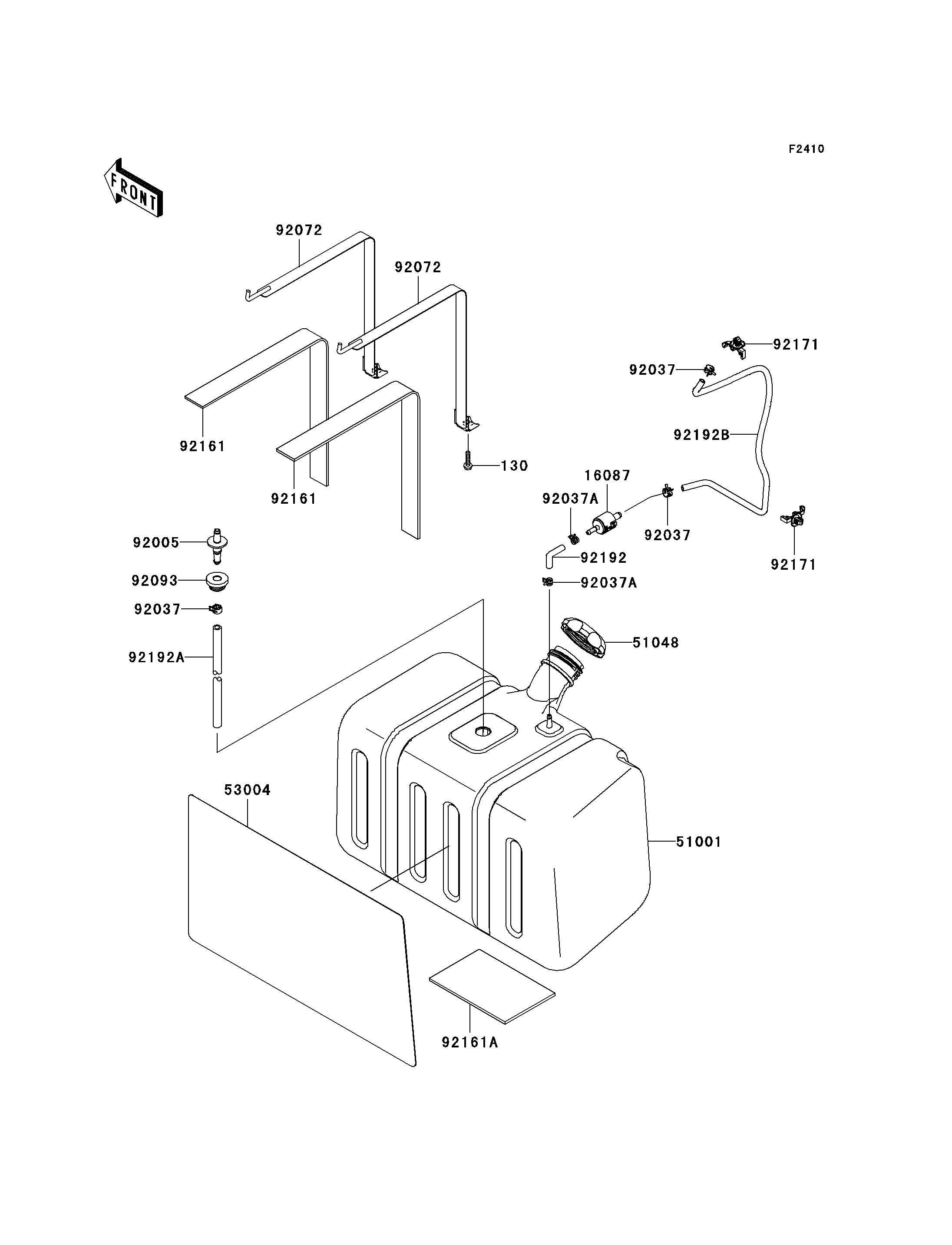

2008 Teryx® 750 4x4 NRA OUTDOORS™ - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
16087
51001
51048
53004
92005
92037
92037
92037
92037A
92037A
92072
92072
92093
92161
92161
92161A
92171
92171
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BA0625 2
VALVE-CHECK 16087 16087-0002 1
TANK-COMP-FUEL 51001 51001-0266 1
CAP-ASSY-TANK,FUEL 51048 51048-0028 1
MAT 53004 53004-0016 1
FITTING 92005 92005-7501 1
CLAMP,HOSE CLIP 92037 92037-1181 3
CLAMP,TUBE 92037A 92037-1461 2
BAND,FUEL TANK 92072 92072-0114 2
SEAL 92093 92093-0129 1
DAMPER 92161 92161-0426 2
DAMPER 92161A 92161-7508 1
CLAMP 92171 92171-0453 2
TUBE,FUEL TANK-CHECK VALVE 92192 92192-0067 1
TUBE,8X13X320 92192A 92192-0406 1
TUBE 92192B 92192-0647 1
