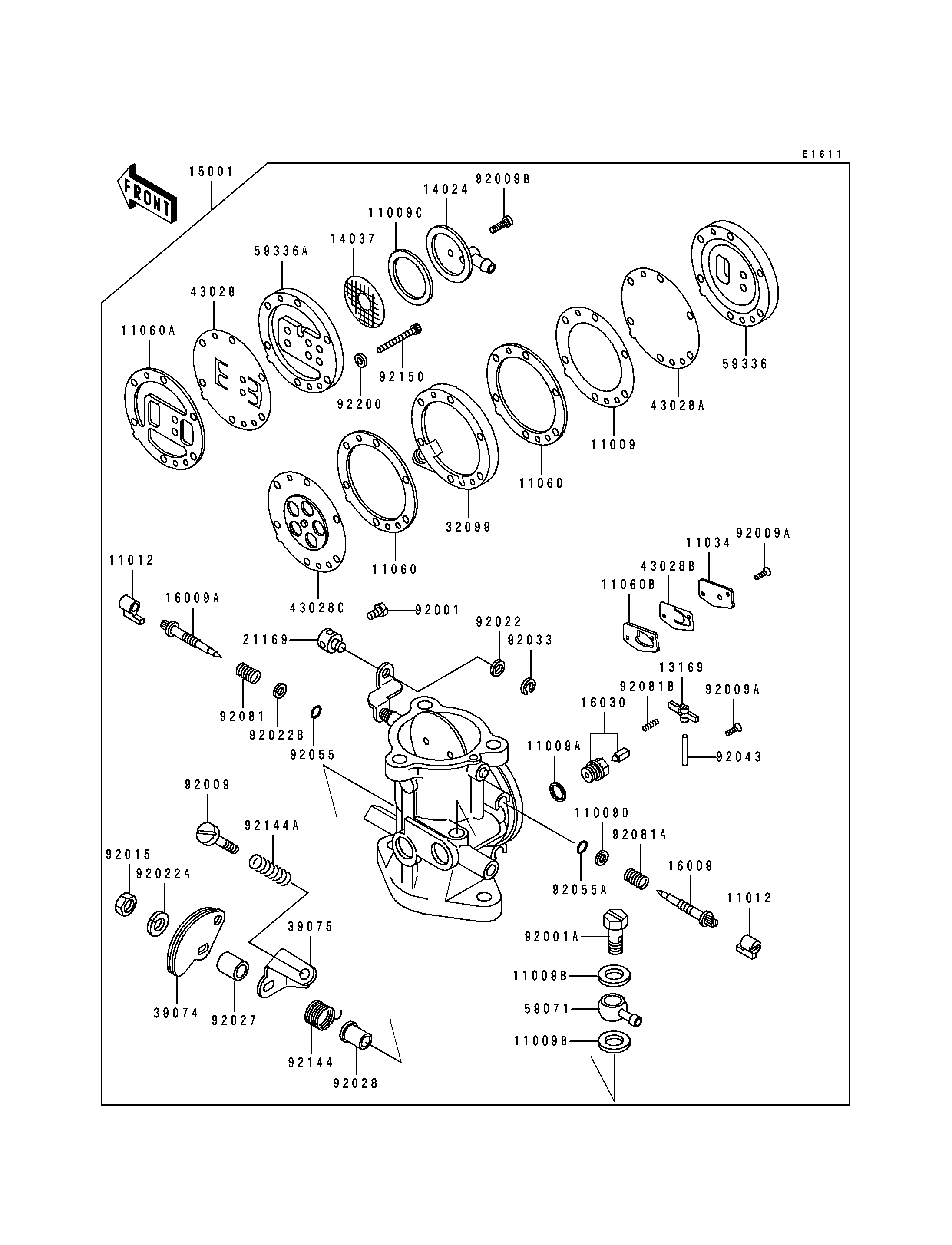

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET | 11009 | 11009-3036 | 1 | ||
| GASKET,FLOAT VALVE SEAT | 11009A | 16029-004 | 1 | ||
| GASKET,BANJO BOLT | 11009B | 92065-078 | 2 | ||
| GASKET | 11009C | 92065-526 | 1 | ||
| GASKET | 11009D | 92065-528 | 1 | ||
| CAP,JET NEEDLE | 11012 | 11012-3739 | 2 | ||
| BRACKET,CARBURETOR | 11034 | 59086-541 | 1 | ||
| GASKET | 11060 | 11060-3704 | 2 | ||
| GASKET | 11060A | 11060-3705 | 1 | ||
| GASKET | 11060B | 11060-3706 | 1 | ||
| PLATE | 13169 | 59001-506 | 1 | ||
| COVER,CARBURETOR | 14024 | 59036-530 | 1 | ||
| SCREEN,CARBURETOR | 14037 | 14037-504 | 1 | ||
| CARBURETOR-ASSY | 15001 | 15001-3761 | 1 | ||
| NEEDLE-JET,HIGH SPEED | 16009 | 16009-3709 | 1 | ||
| NEEDLE-JET | 16009A | 16009-3710 | 1 | ||
| VALVE-FLOAT,#1.5 | 16030 | 16030-503 | 1 | ||
| TERMINAL,CHOKE SHAFT | 21169 | 21169-3008 | 1 | ||
| CASE,PUMP | 32099 | 59021-514 | 1 | ||
| LEVER-ASSY-THROTTLE,THROTTLE | 39074 | 39074-3704 | 1 | ||
| LEVER-THROTTLE | 39075 | 39075-3706 | 1 | ||
| DIAPHRAGM,PUMP,CARBURETOR | 43028 | 43028-3001 | 1 | ||
| DIAPHRAGM,PUMP,CARBURETOR | 43028A | 43028-3002 | 1 | ||
| DIAPHRAGM,CHECK SHEET | 43028B | 51069-501 | 1 | ||
| DIAPHRAGM,MAIN,CARB | 43028C | 51069-502 | 1 | ||
| JOINT,BANJO | 59071 | 59071-505 | 1 | ||
| CASE-PUMP | 59336 | 59336-3002 | 1 | ||
| CASE-PUMP | 59336A | 59336-3003 | 1 | ||
| BOLT,4X8 | 92001 | 92001-3026 | 1 | ||
| BOLT,BANJO | 92001A | 92003-521 | 1 | ||
| SCREW,4X18 | 92009 | 92009-2245 | 1 | ||
| SCREW | 92009A | 92009-3714 | 3 | ||
| SCREW,4X12 | 92009B | 92011-510 | 1 | ||
| NUT,THROTTLE LEVER | 92015 | 92015-3717 | 1 | ||
| WASHER,PLAIN,NYLON | 92022 | 92022-3020 | 1 | ||
| WASHER,THROTTLE LEVER | 92022A | 92022-3722 | 1 | ||
| WASHER | 92022B | 92022-537 | 1 | ||
| COLLAR,THROTTLE SHAFT | 92027 | 92027-3709 | 1 | ||
| BUSHING,CARBURETOR | 92028 | 92028-3730 | 1 | ||
| RING-SNAP,5MM,SUS304 | 92033 | 92033-3004 | 1 | ||
| PIN,FLOAT | 92043 | 16032-006 | 1 | ||
| RING-O | 92055 | 92055-3726 | 1 | ||
| RING-O | 92055A | 92055-511 | 1 | ||
| SPRING | 92081 | 92081-528 | 1 | ||
| SPRING | 92081A | 92081-534 | 1 | ||
| SPRING | 92081B | 92081-536 | 1 | ||
| SPRING,THROTTLE SHAFT | 92144 | 92144-3715 | 1 | ||
| SPRING | 92144A | 92144-3722 | 1 | ||
| BOLT | 92150 | 92150-3757 | 6 | ||
| WASHER | 92200 | 92022-3758 | 6 |
| GASKET | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FLOAT VALVE SEAT | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,BANJO BOLT | |
| REF # | 11009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11009C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11009D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,JET NEEDLE | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CARBURETOR | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11060B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CARBURETOR | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREEN,CARBURETOR | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARBURETOR-ASSY | |
| REF # | 15001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NEEDLE-JET,HIGH SPEED | |
| REF # | 16009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NEEDLE-JET | |
| REF # | 16009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-FLOAT,#1.5 | |
| REF # | 16030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
