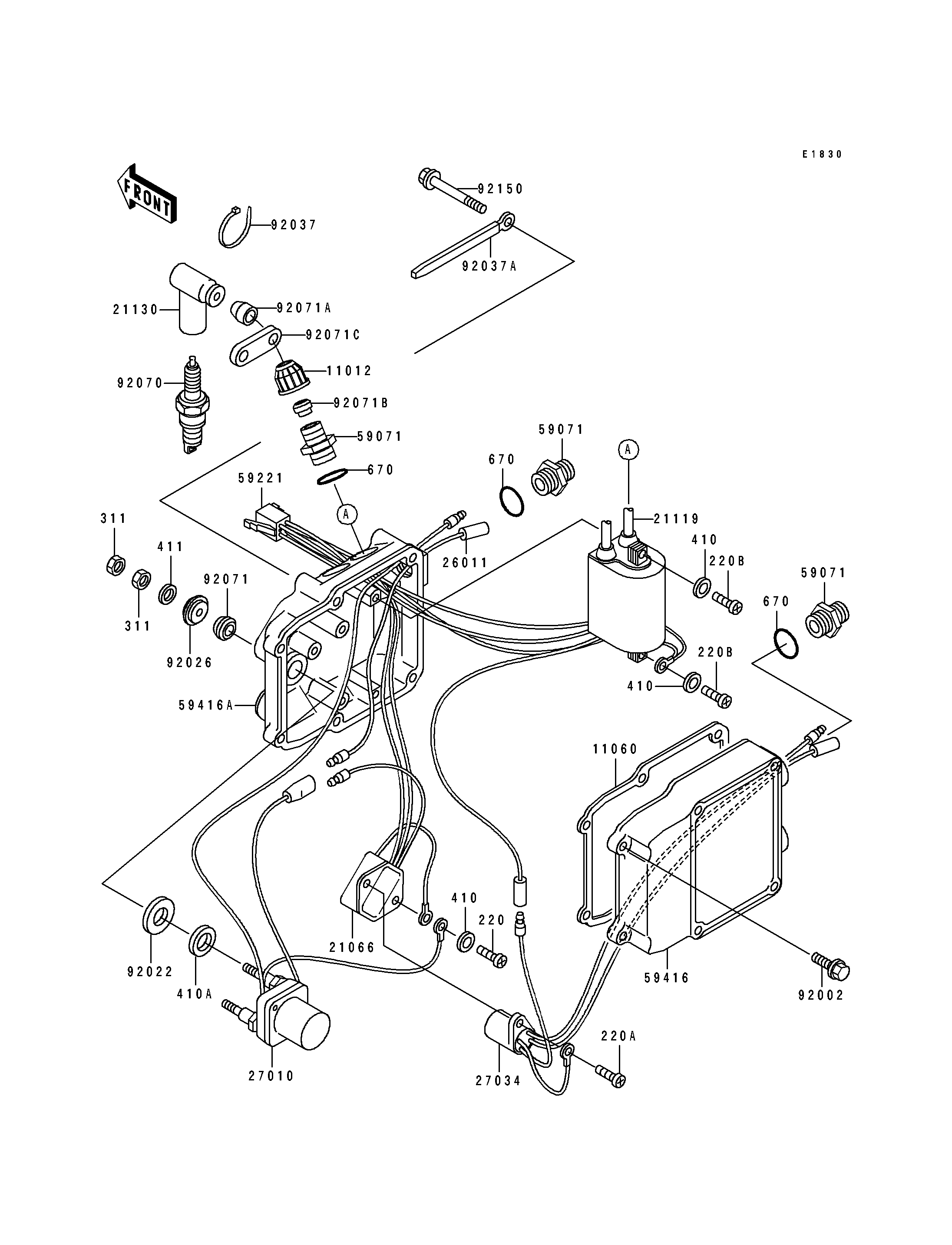

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-3005 | 2 | ||
GASKET,ELECTRIC CASE | 11060 | 11009-3781 | 1 | ||
REGULATOR-VOLTAGE | 21066 | 21066-3004 | 1 | ||
IGNITER,CDI | 21119 | 21119-3016 | 1 | ||
CAP-SPARK PLUG | 21130 | 21130-3704 | 2 | ||
WIRE-LEAD,ORANGE | 26011 | 26011-3003 | 1 | ||
SWITCH,MAGNETIC | 27010 | 27010-3006 | 1 | ||
RELAY,STOP SWITCH | 27034 | 27034-3002 | 1 | ||
JOINT | 59071 | 59071-3001 | 4 | ||
CONNECTOR-CORD | 59221 | 59221-505 | 1 | ||
CASE-ELECTRIC,RR | 59416 | 59416-3003-YR | 1 | ||
CASE-ELECTRIC,FR | 59416A | 59416-3004-YR | 1 | ||
BOLT,6X25 | 92002 | 92002-3714 | 2 | ||
WASHER | 92022 | 92022-3035 | 2 | ||
SPACER | 92026 | 92026-3703 | 2 | ||
CLAMP | 92037 | 92037-1173 | 2 | ||
CLAMP,L=100 | 92037A | 92037-3736 | 1 | ||
PLUG-SPARK,BR7ES(NGK) | 92070 | 92070-3701 | 2 | ||
GROMMET | 92071 | 92071-3004 | 2 | ||
GROMMET | 92071A | 92071-517 | 2 | ||
GROMMET | 92071B | 92071-527 | 2 | ||
GROMMET | 92071C | 92071-529 | 1 | ||
BOLT,6X80 | 92150 | 92150-3761 | 4 | ||
SCREW-PAN-CROS,6X12 | 220 | 220B0612 | 2 | ||
SCREW-PAN-CROS,6X16 | 220A | 220B0616 | 1 | ||
SCREW-PAN-CROS,6X20,WHITE | 220B | 220B0620 | 2 | ||
NUT-HEX,6MM | 311 | 311R0600 | 4 | ||
WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 5 | ||
WASHER-PLAIN-SMALL,10MM | 410A | 410B1000 | 2 | ||
WASHER-PLAIN,6MM | 411 | 411S0600 | 2 | ||
O RING,16MM | 670 | 670B2016 | 4 |
