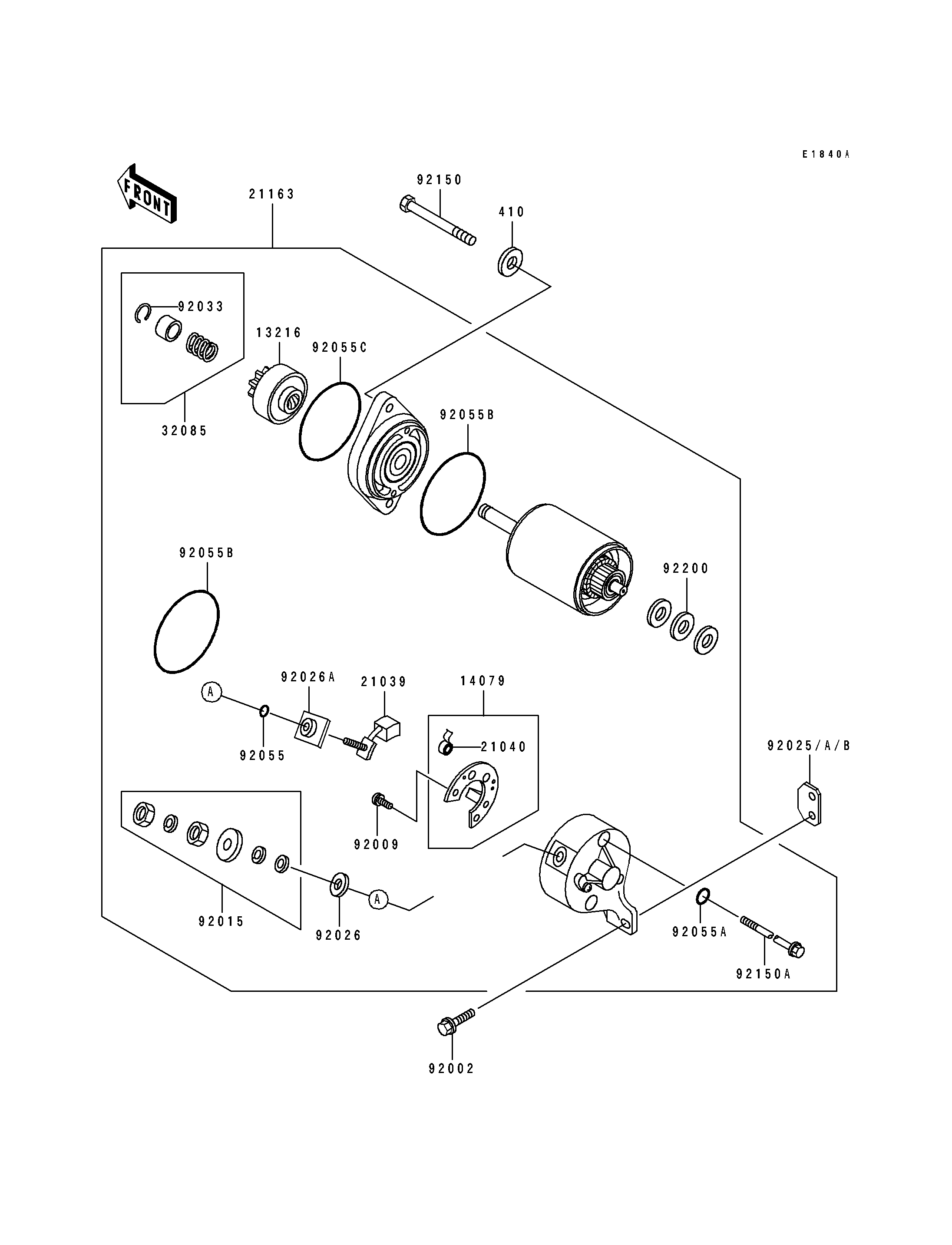

1992 JS440 - Starter Motor(TC440B-054871&NAMI.)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GEAR-COMP,SPUR | 13216 | 13216-3703 | 1 | ||
HOLDER-ASSY,BRUSH | 14079 | 14079-3706 | 1 | ||
BRUSH,CARBON(+) | 21039 | 21039-3704 | 1 | ||
SPRING-BRUSH | 21040 | 21040-3701 | 2 | ||
STARTER-ELECTRIC | 21163 | 21163-3710 | 1 | ||
STOPPER,GEAR | 32085 | 32085-3718 | 1 | ||
BOLT,6X20 | 92002 | 92002-3755 | 1 | ||
SCREW,4X10 | 92009 | 92009-3785 | 2 | ||
NUT,STARTER TERMINAL | 92015 | 92015-3820 | 1 | ||
SHIM,STARTER,T=0.4 | 92025 | 92025-3012 | AR | ||
SHIM,STARTER,T=0.6 | 92025A | 92025-3013 | AR | ||
SHIM,STARTER,T=0.8 | 92025B | 92025-3014 | AR | ||
SPACER,TERMINAL,OUT | 92026 | 92026-3704 | 1 | ||
SPACER,TERMINAL,IN | 92026A | 92026-3705 | 1 | ||
RING-SNAP | 92033 | 92036-517 | 1 | ||
RING-O,STARTER TERMINAL | 92055 | 92055-3728 | 1 | ||
RING-O,BOLT | 92055A | 92055-3729 | 2 | ||
RING-O,YOKE | 92055B | 92055-3730 | 2 | ||
RING-O | 92055C | 92055-516 | 1 | ||
BOLT,8X75 | 92150 | 92150-3756 | 2 | ||
BOLT,5X120 | 92150A | 92150-3783 | 2 | ||
WASHER,THRUST | 92200 | 92200-3713 | 3 | ||
WASHER-PLAIN-SMALL,8MM | 410 | 410S0800 | 2 |
GEAR-COMP,SPUR | |
REF # | 13216 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-ASSY,BRUSH | |
REF # | 14079 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRUSH,CARBON(+) | |
REF # | 21039 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING-BRUSH | |
REF # | 21040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STARTER-ELECTRIC | |
REF # | 21163 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER,GEAR | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,4X10 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,STARTER TERMINAL | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHIM,STARTER,T=0.4 | |
REF # | 92025 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,STARTER,T=0.6 | |
REF # | 92025A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,STARTER,T=0.8 | |
REF # | 92025B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SPACER,TERMINAL,OUT | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,TERMINAL,IN | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,STARTER TERMINAL | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,BOLT | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,YOKE | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X75 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,5X120 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,THRUST | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,8MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
