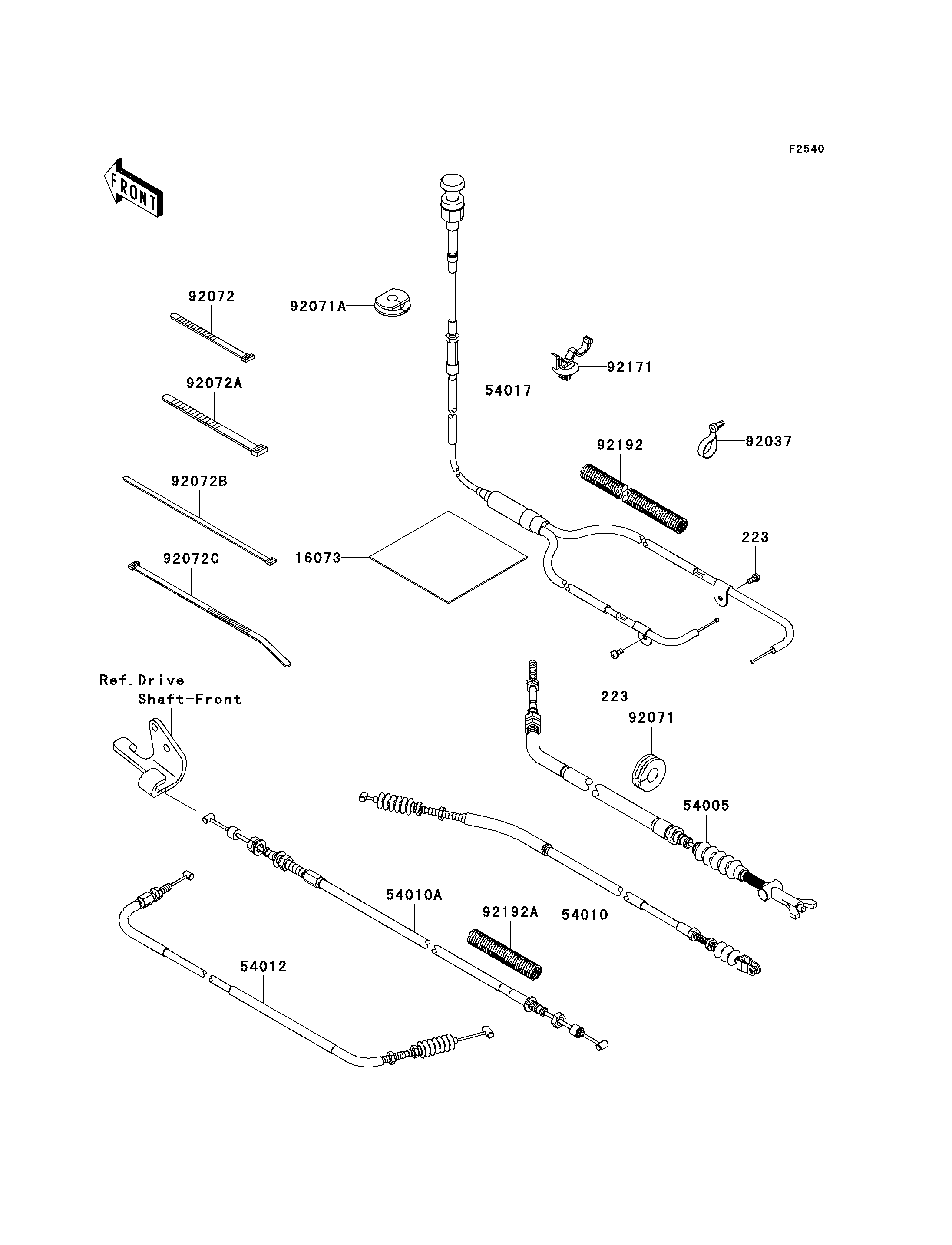

2008 Teryx® 750 4x4 NRA OUTDOORS™ - Cables
223
223
16073
54005
54010
54010A
54012
54017
92037
92071
92071A
92072
92072A
92072B
92072C
92171
92192
92192A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-WS-CROS,4X8 | 223 | 223AA0408 | 2 | ||
| INSULATOR | 16073 | 16073-0052 | 1 | ||
| CABLE-BRAKE,PARKING | 54005 | 54005-0016 | 1 | ||
| CABLE,2/4WD | 54010 | 54010-0093 | 1 | ||
| CABLE,FRONT DIFF LOCK | 54010A | 54010-0095 | 1 | ||
| CABLE-THROTTLE | 54012 | 54012-0246 | 1 | ||
| CABLE-STARTER | 54017 | 54017-0044 | 1 | ||
| CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 1 | ||
| GROMMET | 92071 | 92071-0029 | 1 | ||
| GROMMET | 92071A | 92071-0041 | 1 | ||
| BAND,L=123 | 92072 | 92072-030 | 1 | ||
| BAND,L=149 | 92072A | 92072-031 | 1 | ||
| BAND,L=188 | 92072B | 92072-1239 | 7 | ||
| BAND,L=292.1 | 92072C | 92072-3509 | 1 | ||
| CLAMP | 92171 | 92171-0453 | 3 | ||
| TUBE,CORRUGATED,L=200 | 92192 | 92192-0672 | 1 | ||
| TUBE,CORRUGATED,L=80 | 92192A | 92192-0673 | 1 |
