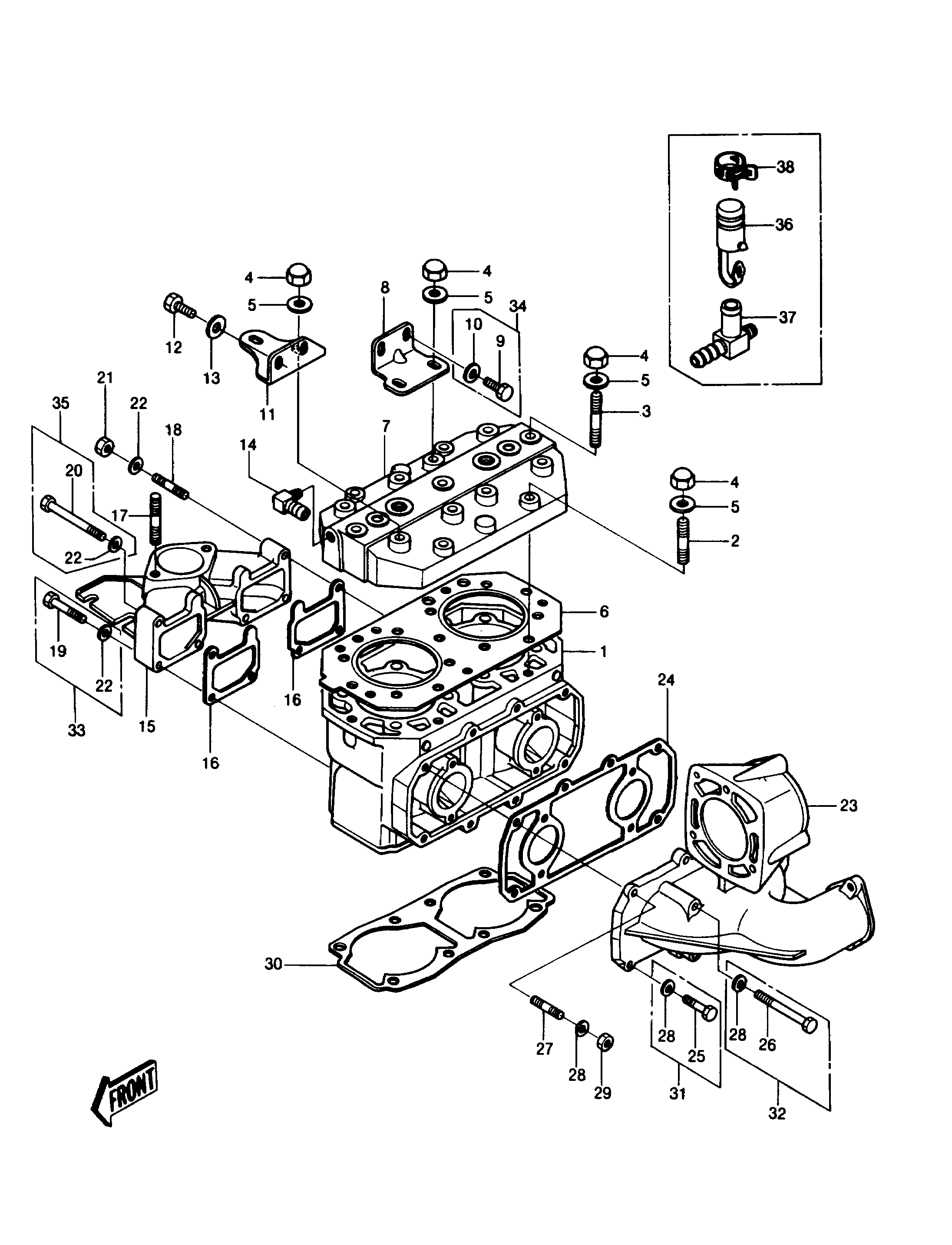

1988 JS550 - CYLINDER HEAD/CYLINDER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,6MM 10 411S0600 2
BRACKET,MUFFLER 11 11044-2075 1
BOLT,8X18 12 92002-2288 2
WASHER-PLAIN,8MM 13 411S0800 2
ELBOW 14 52014-3002 1
MANIFOLD-INTAKE 15 59076-2052-YR 1
GASKET,INTAKE 16 16062-510 2
STUD,8X27.5 17 92004-3022 2
BOLT-STUD,6X35 18 171R0635 1
BOLT,6X35 19 110R0635 3
BOLT,6X70 20 110R0670 2
NUT-HEX,6MM 21 311R0600 1
WASHER-PLAIN-SMALL,6MM 22 410S0600 6
MANIFOLD-EXHAUST 23 59081-2051-YR 1
GASKET,EXHAUST MANIFOLD 24 11009-3023 1
BOLT,6X25 25 110R0625 5
BOLT,6X70 26 110R0670 5
BOLT-STUD,6X25 27 171R0625 2
WASHER-PLAIN-SMALL,6MM 28 410S0600 12
NUT-HEX,6MM 29 311R0600 2
GASKET,CYLINDER 30 11009-3054 1
CYLINDER-ENGINE 1 11005-2099-YR 1
STUD,8X42 2 92004-3016 4
STUD,8X50 3 92004-3017 3
NUT,CAP,8MM 4 92015-3003 15
WASHER-PLAIN,8MM 5 411S0800 15
GASKET-HEAD 6 11004-3024 1
HEAD-COMP-CYLINDER 7 11008-2059-YR 1
BRACKET,CARBURETOR 8 11044-2074 1
BOLT,6X16 9 110R0616 2
