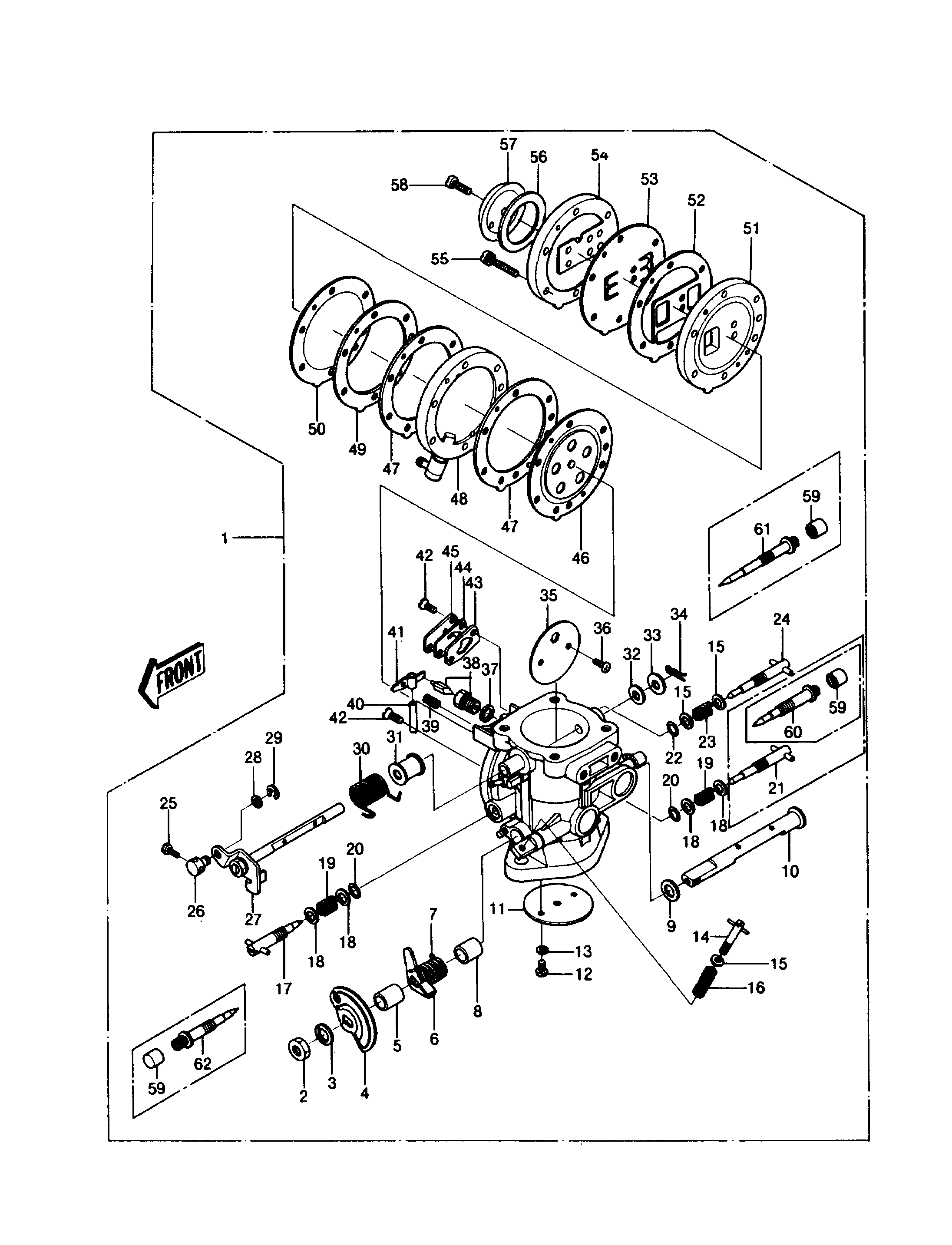

1987 JS550 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-CARBURETOR,THROTTLE 10 16041-2135 1
VALVE-THROTTLE 11 16025-2104 1
SCREW-PAN-CROS 12 220B0306 2
WASHER-SPRING,3MM 13 461F0300 2
SCREW,THROTTLE STOP 14 23013-2051 1
GASKET 15 92065-528 3
SPRING,THROTTLE CABLE BRACKET 16 16040-022 1
NEEDLE-JET,LOW SPEED 17 16009-3001 1
WASHER 18 92022-537 4
SPRING 19 92081-528 2
RING-O 20 92055-510 2
NEEDLE-JET,PILOT SCREW 21 16009-2092 1
RING-O 22 92055-511 1
SPRING 23 92081-534 1
NEEDLE-JET,HIGH SPEED 24 16009-3002 1
BOLT,4X8 25 92001-3026 1
TERMINAL,CHOKE SHAFT 26 21169-3008 1
SHAFT-CARBURETOR,CHOKE 27 16041-2136 1
WASHER,PLAIN,NYLON 28 92022-3020 1
RING-SNAP,5MM,SUS304 29 92033-3004 1
SPRING,CHOKE SHAFT 30 92081-2337 1
COLLAR,CHOKE SHAFT 31 92027-2097 1
PACKING,CHOKE SHAFT 32 11009-2465 1
WASHER,CHOKE SHAFT 33 92022-2221 1
PIN,SNAP 34 92043-2121 1
VALVE,CHOKE 35 16126-2114 1
SCREW,3X5 36 92009-2208 2
GASKET,FLOAT VALVE SEAT 37 16029-004 1
VALVE-FLOAT,2.0MM 38 16030-2066 1
SPRING 39 92081-536 1
PIN,FLOAT 40 16032-006 1
CARBURETOR-ASSY 1 15001-2403-YR 1
NUT,THROTTLE LEVER 2 92015-3717 1
WASHER,THROTTLE LEVER 3 92022-3722 1
LEVER-ASSY-THROTTLE,THROTTLE 4 39074-3704 1
COLLAR,THROTTLE SHAFT 5 92027-2098 1
LEVER-THROTTLE,STOP 6 39075-2104 1
SPRING,THROTTLE SHAFT 7 92081-2336 1
BUSHING,CARBURETOR 8 92028-514 1
PACKING 9 43049-3702 1
PLATE 41 59001-506 1
SCREW,3X7 42 92011-516 3
GASKET 43 92065-544 1
DIAPHRAGM,CHECK SHEET 44 51069-501 1
BRACKET,CARBURETOR 45 59086-541 1
DIAPHRAGM,MAIN,CARB 46 51069-502 1
GASKET 47 92065-531 2
CASE,PUMP 48 59021-514 1
GASKET 49 11009-3036 1
DIAPHRAGM,PUMP,CARBURETOR 50 43028-3002 1
CASE-PUMP 51 59336-3002 1
GASKET 52 92065-532 1
DIAPHRAGM,PUMP,CARBURETOR 53 43028-3001 1
CASE-PUMP 54 59336-3003 1
SCREW,4X30 55 92011-515 6
GASKET 56 92065-526 1
COVER,CARBURETOR 57 59036-530 1
SCREW,4X12 58 92011-510 1
