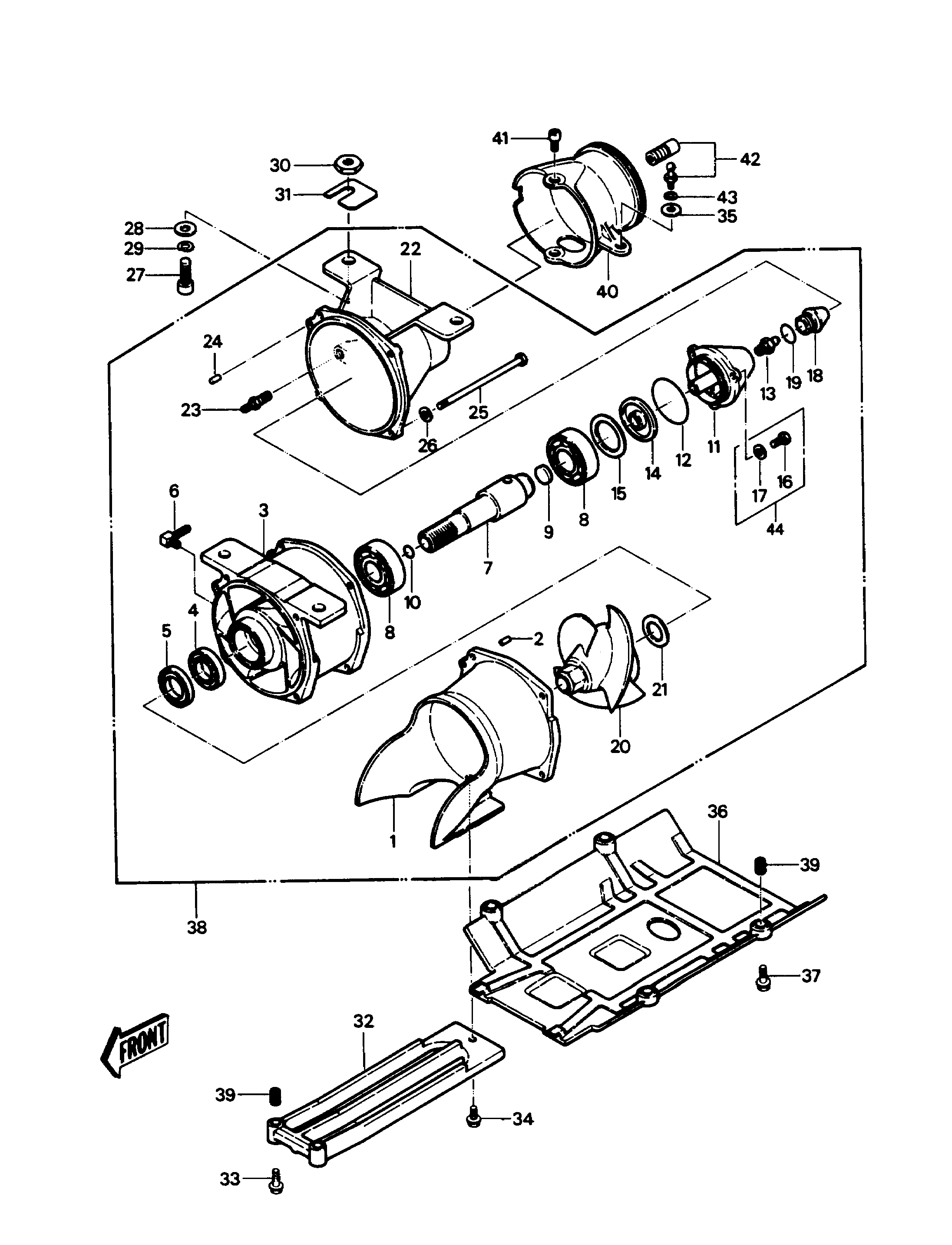

1988 JS550 - JET PUMP

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RING-O 10 92055-3019 1
CAP 11 11012-3009 1
RING-O 12 92055-3018 1
FITTING,GREASE 13 92005-501 1
PLUG,CAP 14 92066-3014 1
SHIM,T=0.3 15A 92025-503 AR
SHIM,T=0.15 15 92025-502 AR
BOLT,6X20 16 110R0620 3
WASHER-PLAIN,6MM 17 411S0600 3
CAP,GREASE FITTING 18 11012-3010 1
O RING,20MM 19 670B2020 1
IMPELLER 20A 59256-3704 1
SHIM,T=2.0MM 21A 92025-3023 AR
SHIM,T=1.5MM 21B 92025-3025 AR
SHIM,T=1.0MM 21 92025-3022 AR
NOZZLE-PUMP 22 59136-3002 1
FITTING,HOSE 23 92005-3001 1
PIN-DOWEL 24 551R0612 1
BOLT,6X125 25 110R06125 4
WASHER-PLAIN,6MM 26 411S0600 4
BOLT,10X25 27 92003-529 4
WASHER-PLAIN,10MM 28 411S1000 4
WASHER-SPRING,10MM 29 461S1000 4
NUT,10MM 30 92015-3005 4
SHIM,T=0.5MM 31A 92025-3702 AR
SHIM,T=1.0MM 31B 92025-3703 AR
SHIM,T=1.5MM 31C 92025-3704 AR
SHIM,T=0.3MM 31 92025-3701 AR
CASE-PUMP 1 59336-3702 1
PIN-DOWEL 2 551R0612 1
VANE-GUIDE 3 59496-3002 1
SEAL-OIL 4 92049-3010 1
SEAL-OIL 5 92049-3011 1
ELBOW 6 52014-3002 1
SHAFT,PUMP 7 13107-3007 1
BEARING-BALL,#6206C3 8 601B6206 2
PLUG,PUMP SHAFT 9 92066-3013 1
GRATE 32 59366-3001 1
BOLT-WP,6X25 33 156R0625 2
BOLT,6X16 34 92002-3728 1
WASHER 35 92022-567 1
COVER-JET PUMP 36 59446-3002 1
BOLT-WP,6X25 37 156R0625 4
PUMP-ASSY-JET 38 59486-3701 1
NUT,INSERT,6MM 39 92015-523 6
NOZZLE-STRG 40A 59476-3702 1
BOLT,SOCKET,6X11 41 92001-3701 2
JOINT-BALL 42 59266-3701 1
WASHER-SPRING,6MM 43 461S0600 1
