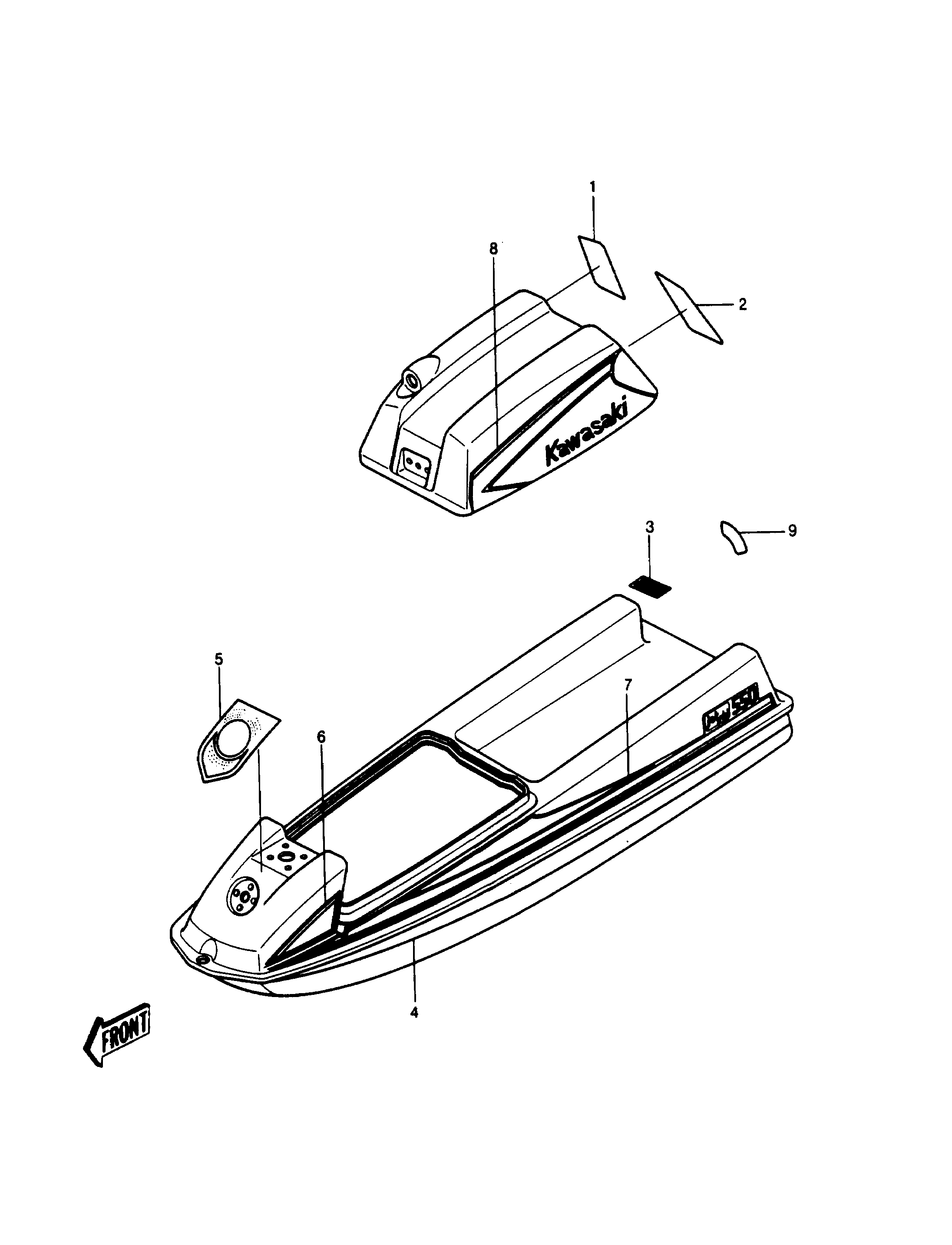

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-WARNING,MAINTENANCE 1 56040-3736 1
LABEL-WARNING,SAFETY 2 56040-3732 1
LABEL,FIRE EXTINGUISHER 3 56022-506 1
PATTERN,HULL,RH 4A 56027-4140 1
PATTERN,HULL,LH 4 56027-4139 1
PATTERN,FRONT DECK,UPP 5 56047-1215 1
PATTERN,FRONT DECK,RH 6A 56047-1217 1
PATTERN,FRONT DECK,LH 6 56047-1216 1
PATTERN,REAR DECK,RH 7A 56047-1219 1
PATTERN,REAR DECK,LH 7 56047-1218 1
PATTERN,ENGINE HOOD,RH 8A 56047-1221 1
PATTERN,ENGINE HOOD,LH 8 56047-1220 1
LABEL-WARNING 9 56040-3706 1
