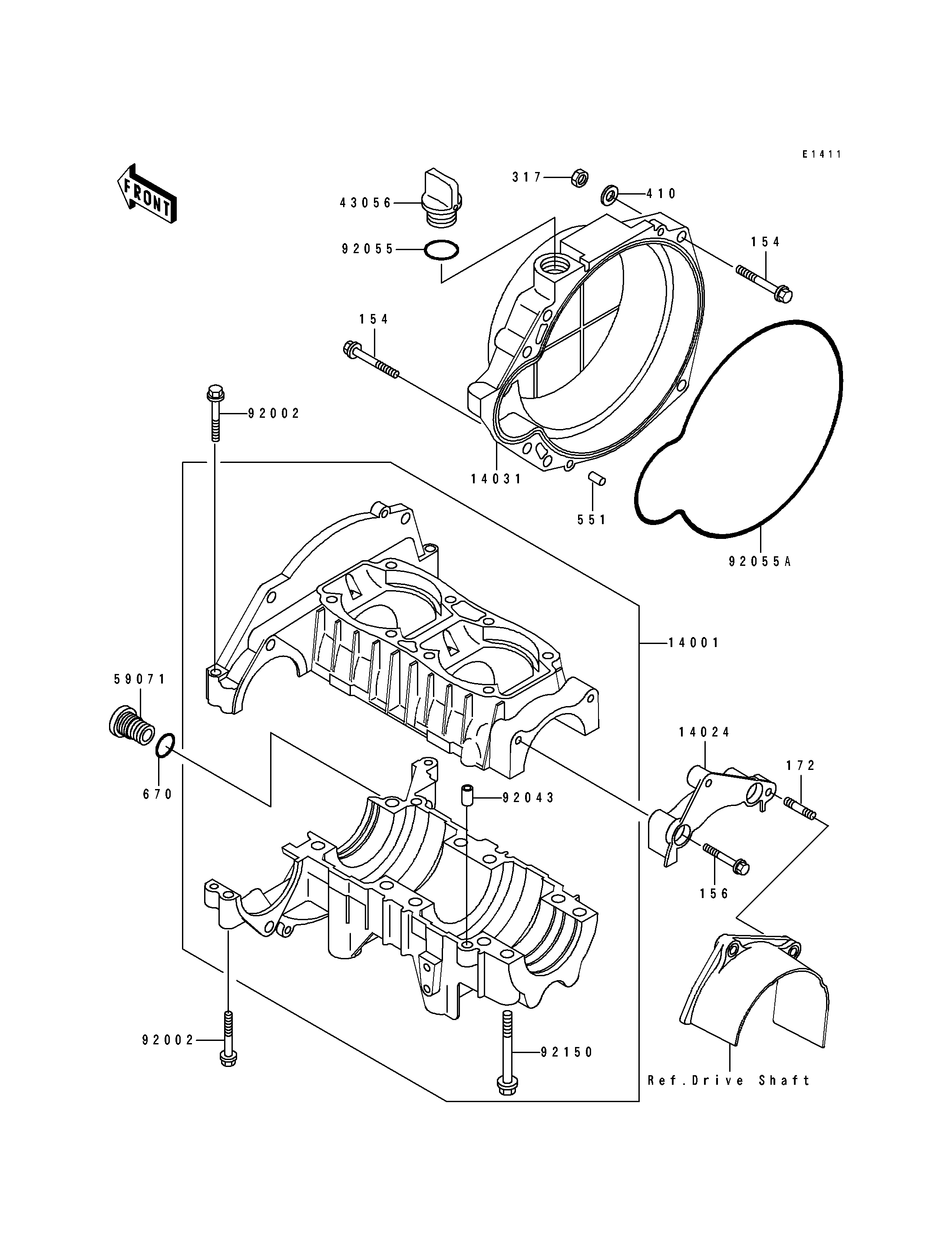

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SET-CRANKCASE 14001 14001-5265 1
COVER 14024 14024-3778 1
COVER-GENERATOR 14031 14031-3705 1
BREATHER-BRAKE 43056 43056-502 1
JOINT 59071 59071-516 1
BOLT,6X40 92002 92002-3716 3
PIN,DOWEL,6.3X8X14 92043 92042-007 2
RING-O 92055 92055-515 1
RING-O 92055A 92055-521 1
BOLT,8X65 92150 92150-3708 10
BOLT-WP-SMALL 154 154R0845 4
BOLT-WP 156 156R0635 2
BOLT-STUD 172 172R0620 2
NUT-HEX-SMALL 317 317R0800 2
WASHER-PLAIN-SMALL,8MM 410 410S0800 2
PIN-DOWEL 551 551R0612 2
O RING,16MM 670 670B2016 1
