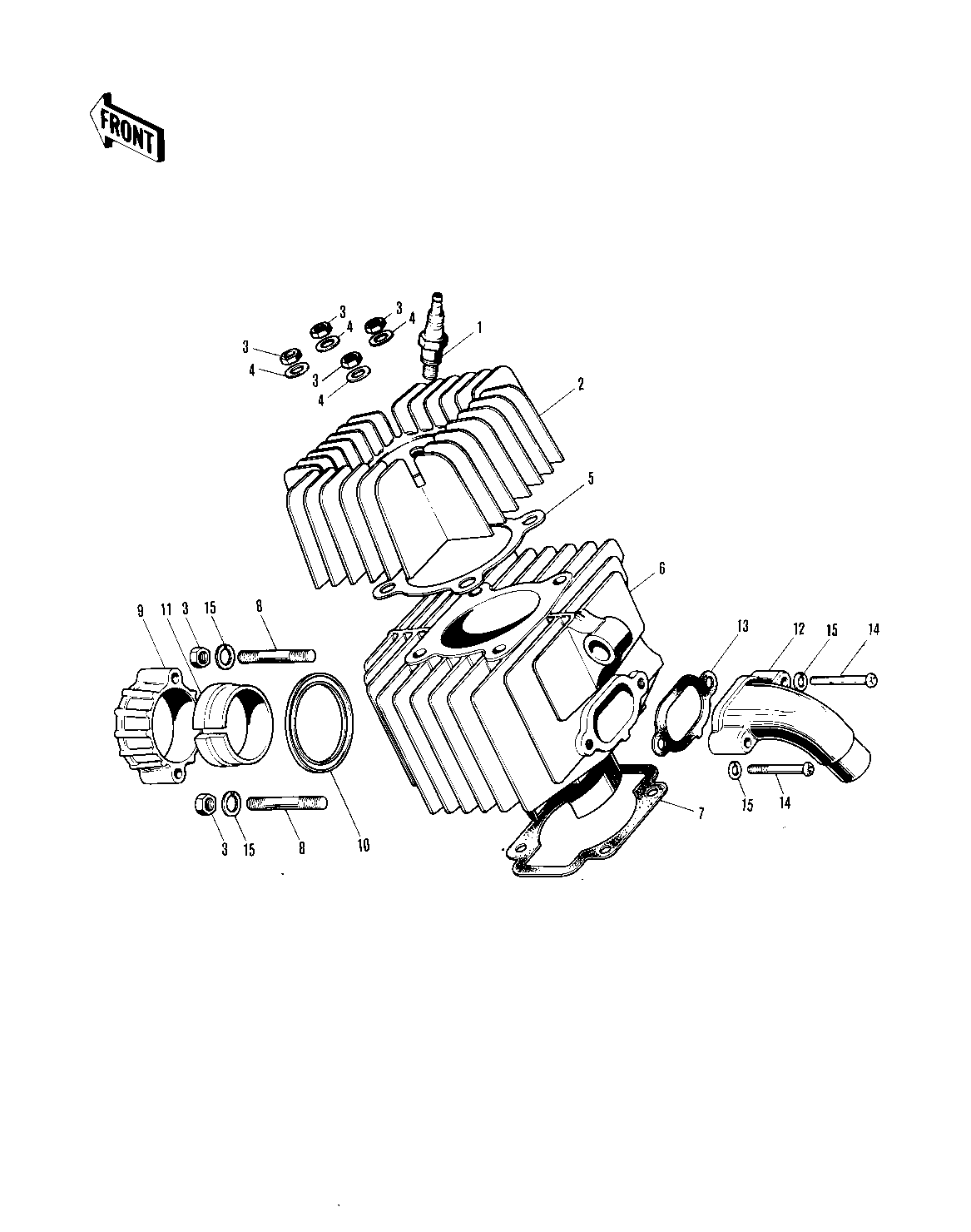

1971 Mini-Trail - CYLINDER HEAD/CYLINDER ('71-'75)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPARK PLUG B7HS 1 B7HS 1 NGK B-7H
CYLINDER HEAD 2 11001-014 1
NUT 6MM 3 311B0600 6
WASHER PLAIN 6MM 4 411B0600 4
GASKET-CYLINDER HEAD 5 11004-014 1
CYLINDER 6 11005-078 1
GASKET-CYCLINDER BASE 7 11009-008 1
STUD,6X30 8 172G0630 2
HOLDER,EX PIPE,BLACK 9 18069-035-21 1
GASKET,EXHAUST PIPE H 10 11009-1866 1
INSERT-EXHAUST HOLDER 11 18070-005 1
INLET PIPE 12 11015-023 1
GASKET-INLET PIPE 13 11017-003 1
SCREW PAN HEAD 6X25 14 220B0625 2
WASHER SPRING 6MM 15 461F0600 4
