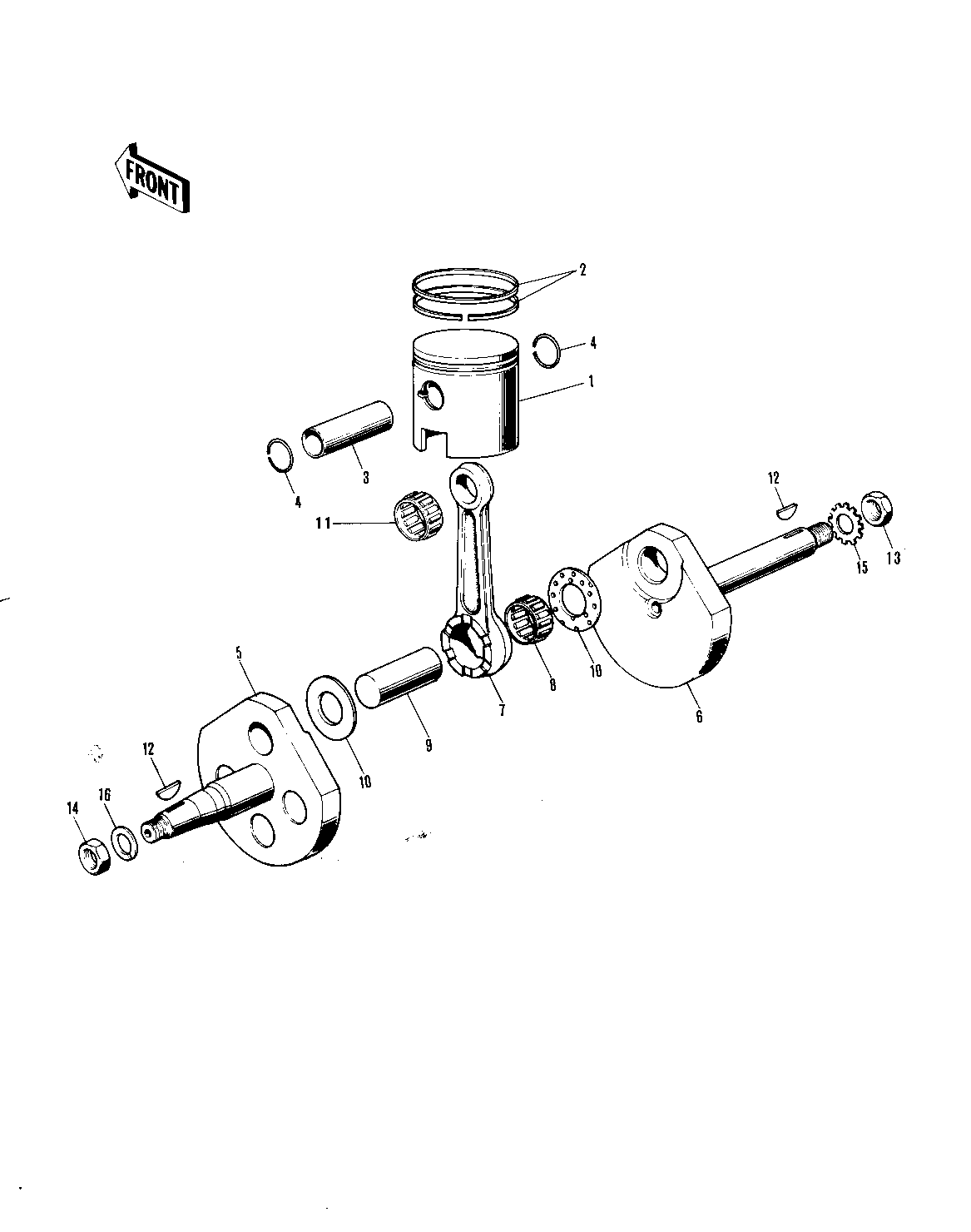

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON,STD 1 13001-047 1 SIZE MARK STD
RING SET,STD 2 13008-029 1 SIZE MARK STD
PIN-PISTON 3 13002-019 1
CIRCLIP PISTON PIN 4 92036-007 2
CRANK - CONROD ASSY 5 10 13036-030 1
CRANKSHAFT L.H 5 13037-043 1
CRANKSHAFT R.H 6 13038-039 1
CONNECTING ROD SET 7 10 13044-015 1
NEEDLE BEARING-BG END 8 13034-002 1
CRANK PIN 9 13035-024 1
WASHER-SIDE 10 92026-002 2
BRG N72KTV030 11 13033-028 1
WOODRUFF KEY 12 92038-001 2
NUT,12MM 13 92016-024 1
NUT,10MM 14 314B1000 1
WASHER LOCK 12MM 15 464H1200 1
WASHER SPRING 10MM 16 461F1000 1
