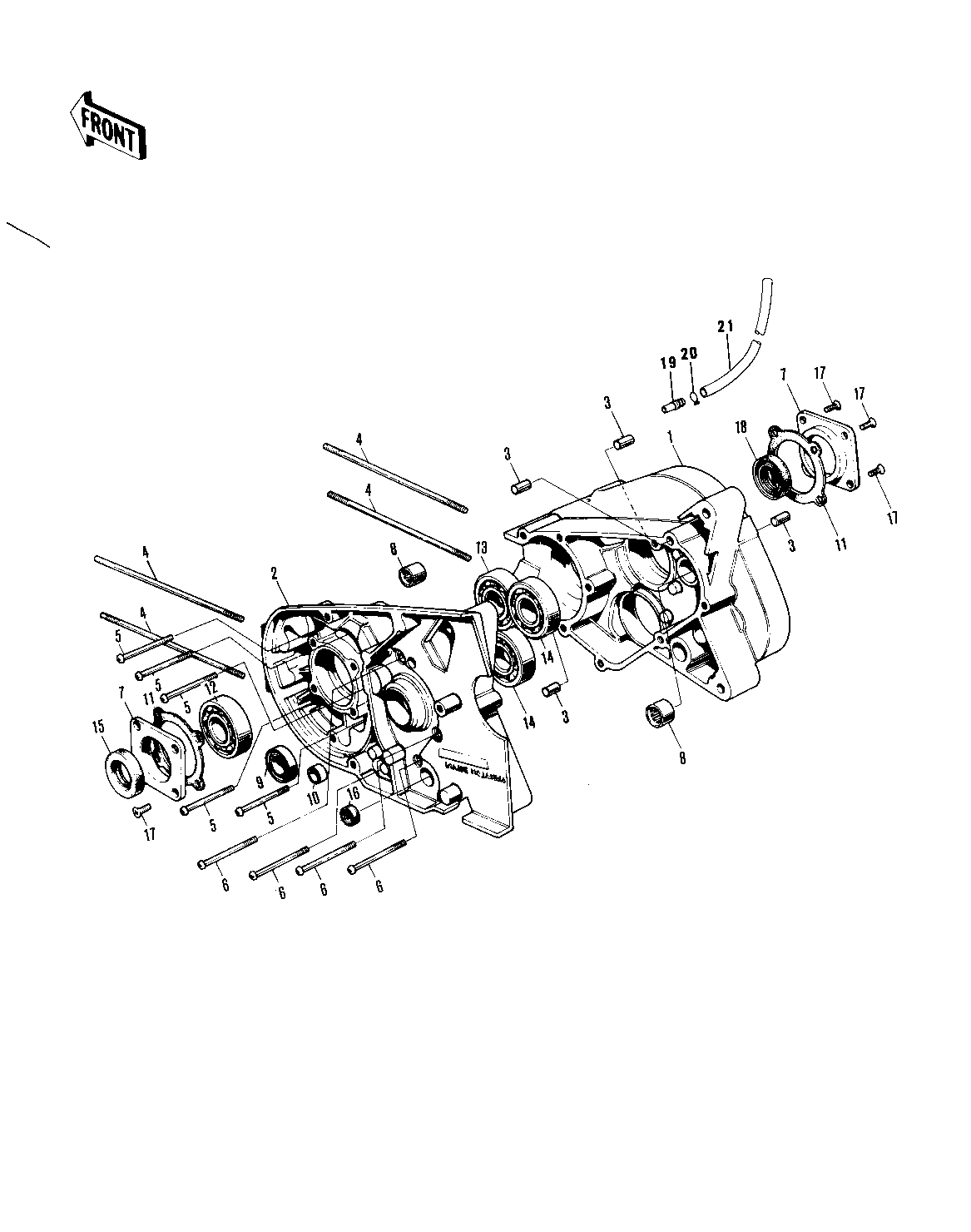

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CRANKCASE SET | 1 3 | 14001-5008 | 1 | ||
CRANKCASE SET | 1 3 | 14001-068 | 1 | MT1C | |
PIN DOWEL 8X16 | 3 | 551A0816 | 4 | ||
STUD,6X120 | 4 | 92004-033 | 4 | ||
SCREW PAN HEAD 6X35 | 5 | 220B0635 | 5 | ||
SCREW PAN HEAD 6X60 | 6 | 220B0660 | 4 | ||
RETAINER-OIL SEAL | 7 | 14020-009 | 2 | ||
NEEDLE BEARING-SM END | 8 | 92046-024 | 2 | ||
OIL SEAL,SC22325 | 9 | 92049-1048 | 1 | ||
OIL SEAL VB14246 | 10 | 92053-001 | 1 | ||
GASKET-OIL SEAL RETNR | 11 | 14023-002 | 2 | ||
BEARING BALL #6204 | 12 | 601B6204 | 1 | ||
BEARING BALL #6303 | 13 | 601B6303 | 1 | ||
BEARING BALL #6203 | 14 | 601B6203 | 2 | ||
OIL SEAL TB20358 | 15 | 653B203508 | 1 | ||
OIL SEAL SB12205 | 16 | 92049-004 | 1 | ||
SCREW CNTSNK HD 6X14 | 17 | 221B0614 | 8 | ||
OIL SEAL TB24358 | 18 | 653B243508 | 1 | ||
BREATHER | 19 | 14069-006 | 1 | MT1C | |
CLAMP,BREATHER PIPE | 20 | 92037-078 | 1 | MT1C | |
TUBE,VINYL,4X500 | 21 | 700Q04500 | 1 | MT1C |
CRANKCASE SET | |
REF # | 1 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKCASE SET | |
REF # | 1 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | MT1C |
PIN DOWEL 8X16 | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
STUD,6X120 | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X35 | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X60 | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RETAINER-OIL SEAL | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NEEDLE BEARING-SM END | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
OIL SEAL,SC22325 | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL VB14246 | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET-OIL SEAL RETNR | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING BALL #6204 | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING BALL #6303 | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING BALL #6203 | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
OIL SEAL TB20358 | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL SB12205 | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW CNTSNK HD 6X14 | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
OIL SEAL TB24358 | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | MT1C |
CLAMP,BREATHER PIPE | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | MT1C |
TUBE,VINYL,4X500 | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | MT1C |
