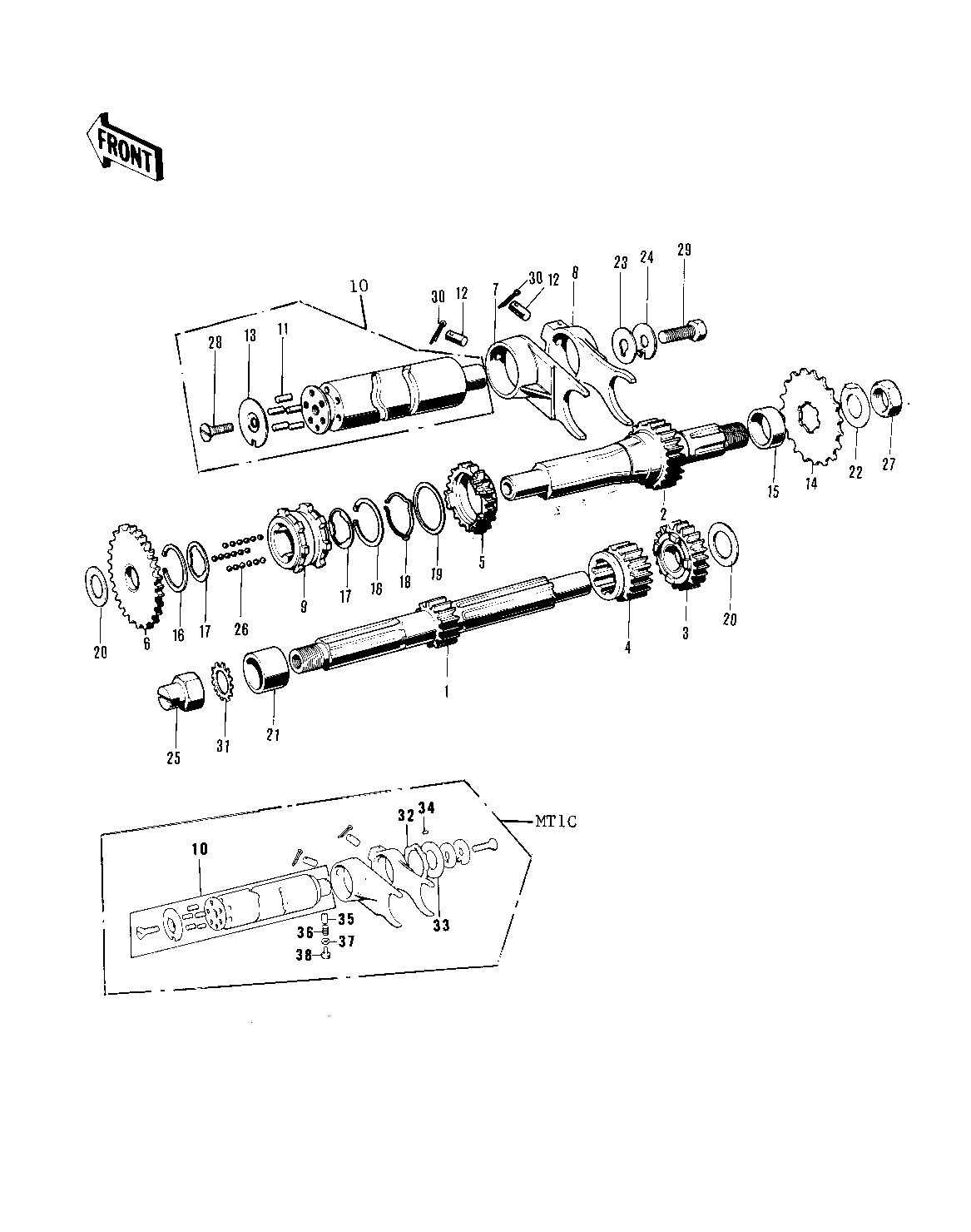

1971 Mini-Trail - TRANSMISSION/CHANGE DRUM ('71-'75)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-DRIVE 1 13127-030 1 11 TEETH
SHAFT-OUTPUT 2 13128-029 1 22 TEETH
TOP GEAR-DRIVE 3 13136-034 1 21 TEETH
2ND GEAR-DRIVE 4 13130-003 1 17 TEETH
2ND GEAR-OUTPUT 5 13131-032 1 26 TEETH
LOW GEAR-OUTPUT 6 13129-035 1 32 TEETH
FORK-SELECTOR,LOW&2ND 7 13140-033 1
FORK-SELECTOR,TOP 8 13140-034 1
SHIFTER 9 13139-004 1
DRUM ASSY-GEAR CHANGE 10 13239-001 1
DRUM ASSY,GEAR CHANGE 10 13239-1014 1 MT1C
PIN GEAR CHANGE DRUM 11 92043-004 5
PIN SELECT FORK GUIDE 12 92043-005 2
PLATE CHANGE DRUM PIN 13 13142-002 1
ENGINE SPROCKET 14 13144-002 1 13 TEETH
COLLAR OIL SEAL 15 92027-001 1
CIRCLIP,26MM 16 92033-003 2
CIRCLIP 17 92033-004 2
CIRCLIP,25MM 18 92033-025 1
WASHER 22MM 19 92022-106 1
WASHER-PLAIN 20 92022-174 2
COLLAR-CLUTCH PINION 21 92027-002 1
WASHER-LOCK,12MM 22 92022-002 1
WASHER-PLAIN 23 92022-175 1
WASHER-LOCK 24 92024-028 1
NUT-OIL PUMP 25 92015-046 1
BALL STEEL 5/32' 26 600A0500 30
NUT-HEX-FINE 27 314B1200 1
SCREW CNTSNK HD 6X16 28 212B0616 1
BOLT-HEX HEAD,8X18 29 113B0818 1
PIN COTTER 3.0X20 30 550D3020 2
WASHER LOCK 12MM 31 464H1200 1
DISC, GEAR DRUM CHANGE OPERATING 32 13145-004 1 MT1C
WASHER,THRUST 33 92026-106 1 MT1C
PIN-DOWEL,4X6 34 610A0406 1 MT1C
PIN-NEUTRAL POSITION 35 92043-076 1 MT1C
SPRING 36 92081-112 1 MT1C
GASKET 37 92065-090 1 MT1C
BOLT,10MM 38 92001-131 1 MT1C
