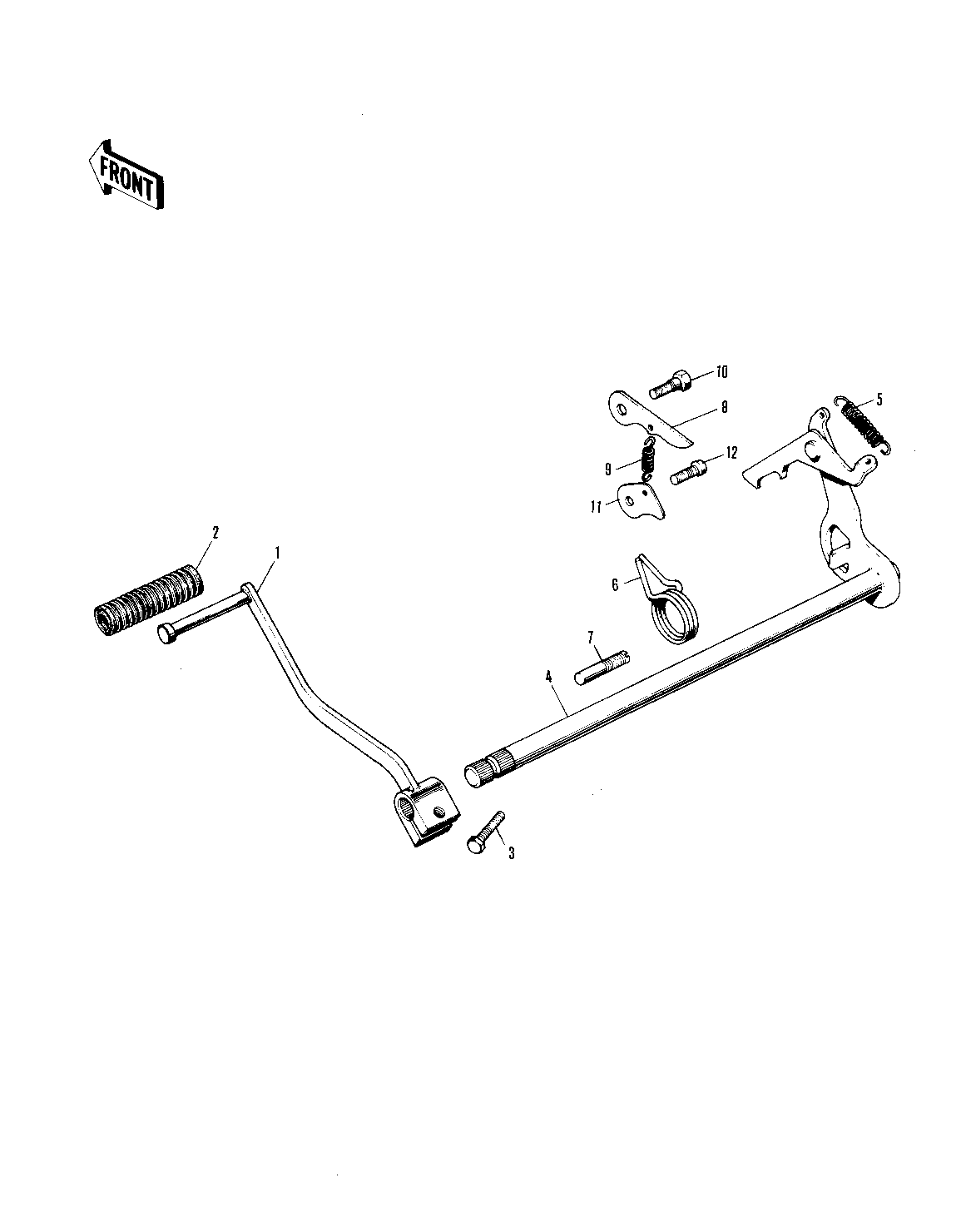

1971 Mini-Trail - GEAR CHANGE MECHANISM ('71-'75)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL SET GEAR CHANGE 1 13242-004 1
RUBBER CHANGE PEDAL 2 13157-004 1
BOLT-UPSET,6X20 3 112G0620 1
LEVER ASSY GEAR CHNG 4 13161-021 1
SPRING RATCHET PA 5 92081-003 1
SPRING 6 92083-001 1
PIN-CHANGE PEDAL 7 92043-061 1
LEVER-GEAR CHNG DRUM 8 13168-002 1 MT1 A &
SPRING-CHANG DRUM LEV 9 92081-008 1 MT1 A &
BOLT,CHANGE DRUM LEVE 10 92150-1450 1 MT1 A &
PLATE CHANGE DRUM LEV 11 13170-004 1 MT1 A &
SCREW PAN HEAD 6X12 12 220B0612 1 MT1 A &
