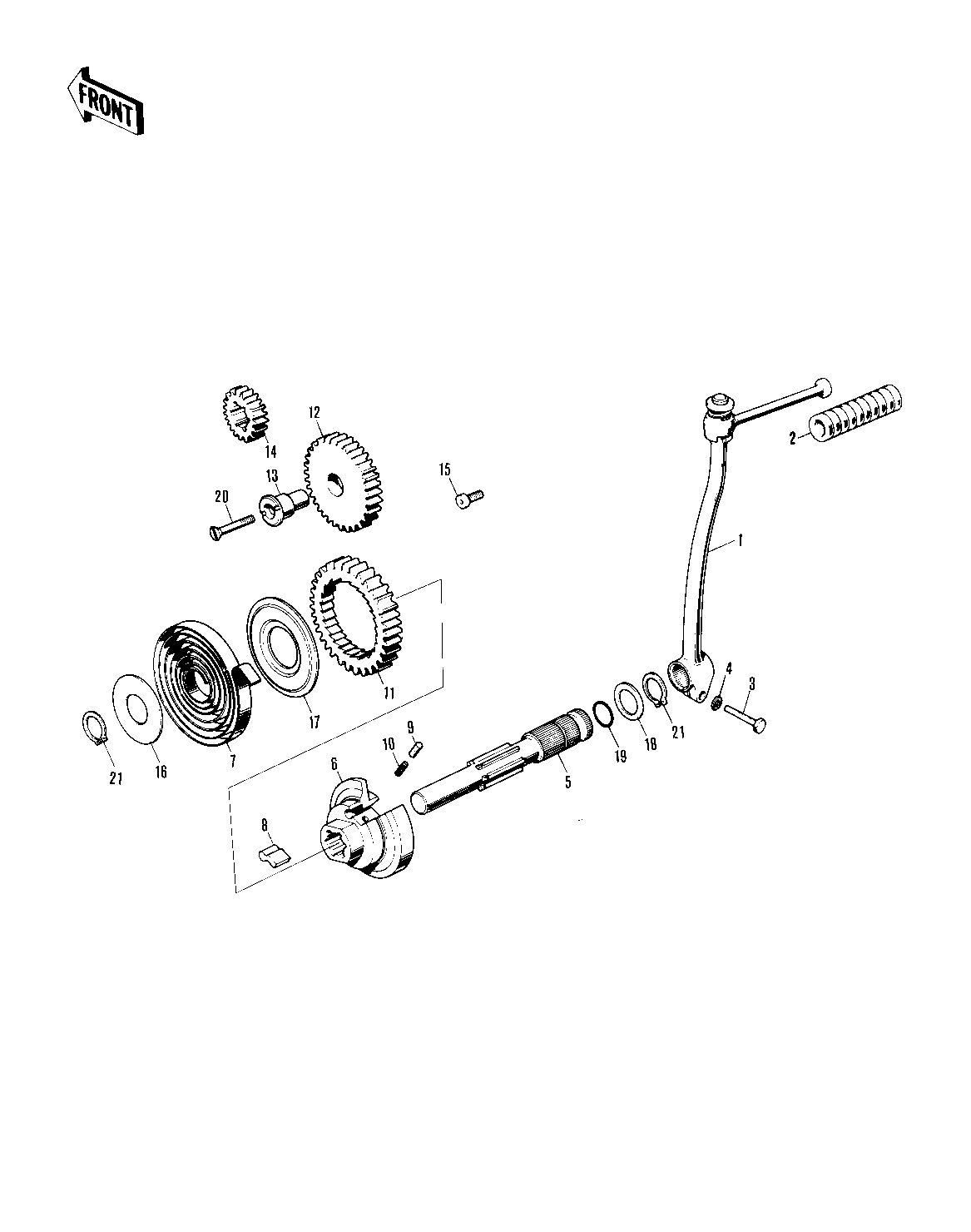

1971 Mini-Trail - KICKSTARTER MECHANISM ('71-'75)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL-KICKSTARTER 1 13058-031 1
RUBBER-KICK PEDAL 2 13063-005 1
BOLT-UPSET 3 112G0625 1
WASHER SPRING 6MM 4 461F0600 1
SHAFT-KICKSTARTER 5 13066-018 1
DRUM KK 6 13067-001 1
KICKSTARTER SPRING 7 92082-001 1
PAWL 8 13069-001 1
PIN KICKSTARTER PAWL 9 92042-001 1
SPRING KICK PAWL 10 92081-022 1
GEAR-KICKSTARTER 11 13068-003 1
IDLE GEAR 12 13073-002 1
SHAFT-IDLE GEAR 13 13074-002 1
PINION-KICKSTARTER 14 13075-003 1
STOPPER-KICKSTARTER 15 13072-001 1
PLATE-KICK SPRG HLDER 16 13071-001 1
PLATE-KICK GEAR HLDER 17 13071-002 1
WASHER,16MM 18 92022-006 1
"0" RING,16MM 19 92055-001 1
SCREW,CNTSNK,5X30.5 20 92010-002 1
CIRCLIP 16MM 21 480J1600 2
