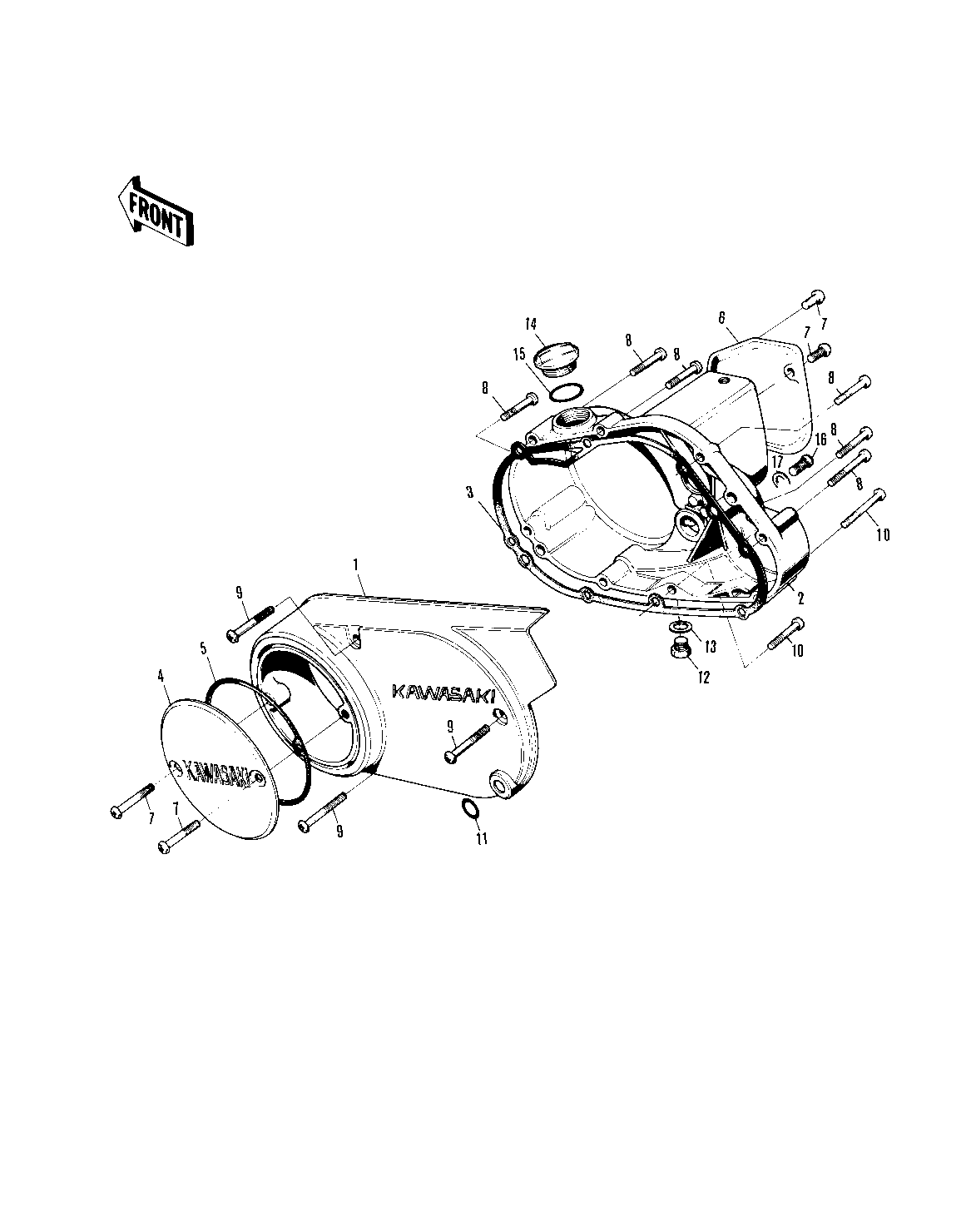

1971 Mini-Trail - ENGINE COVERS ('71-'75)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,L.H.ENGINE | 1 | 14031-1008 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 1 | 14031-039-2H | 1 | MT1C BARREL | |
| COVER,R.H.ENGINE | 2 | 14032-1003 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 2 | 14032-058-2H | 1 | MT1C BARREL | |
| GASKET-R.H ENGINE COV | 3 | 14046-002 | 1 | ||
| COVER-BRK POINT,CR | 4 | 14027-007-79 | 1 | ||
| GASKET BREAKER COVER | 5 | 14050-002 | 1 | ||
| COVER-OIL PUMP | 6 | 14030-026 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 6 | 14030-026-2H | 1 | MT1C BARREL | |
| SCREW PAN HEAD 6X12 | 7 | 220B0612 | 4 | ||
| SCREW PAN HEAD 6X30 | 8 | 220B0630 | 6 | ||
| SCREW PAN HEAD 6X45 | 9 | 220B0645 | 3 | ||
| SCREW PAN HEAD 6X50 | 10 | 220B0650 | 2 | ||
| "O" RING,12MM | 11 | 670B2012 | 2 | ||
| PLUG OIL DRAIN | 12 | 92067-001 | 1 | ||
| GASKET CHECK VALVE | 13 | 92065-058 | 1 | ||
| PLUG-OIL FILLER | 14 | 92068-005 | 1 | ||
| "0" RING,OIL FIL PLUG | 15 | 92055-026 | 1 | ||
| SCREW PAN HEAD 6X8 | 16 | 220B0608 | 1 | ||
| GASKET OIL LEVEL SCRW | 17 | 92065-035 | 1 |
