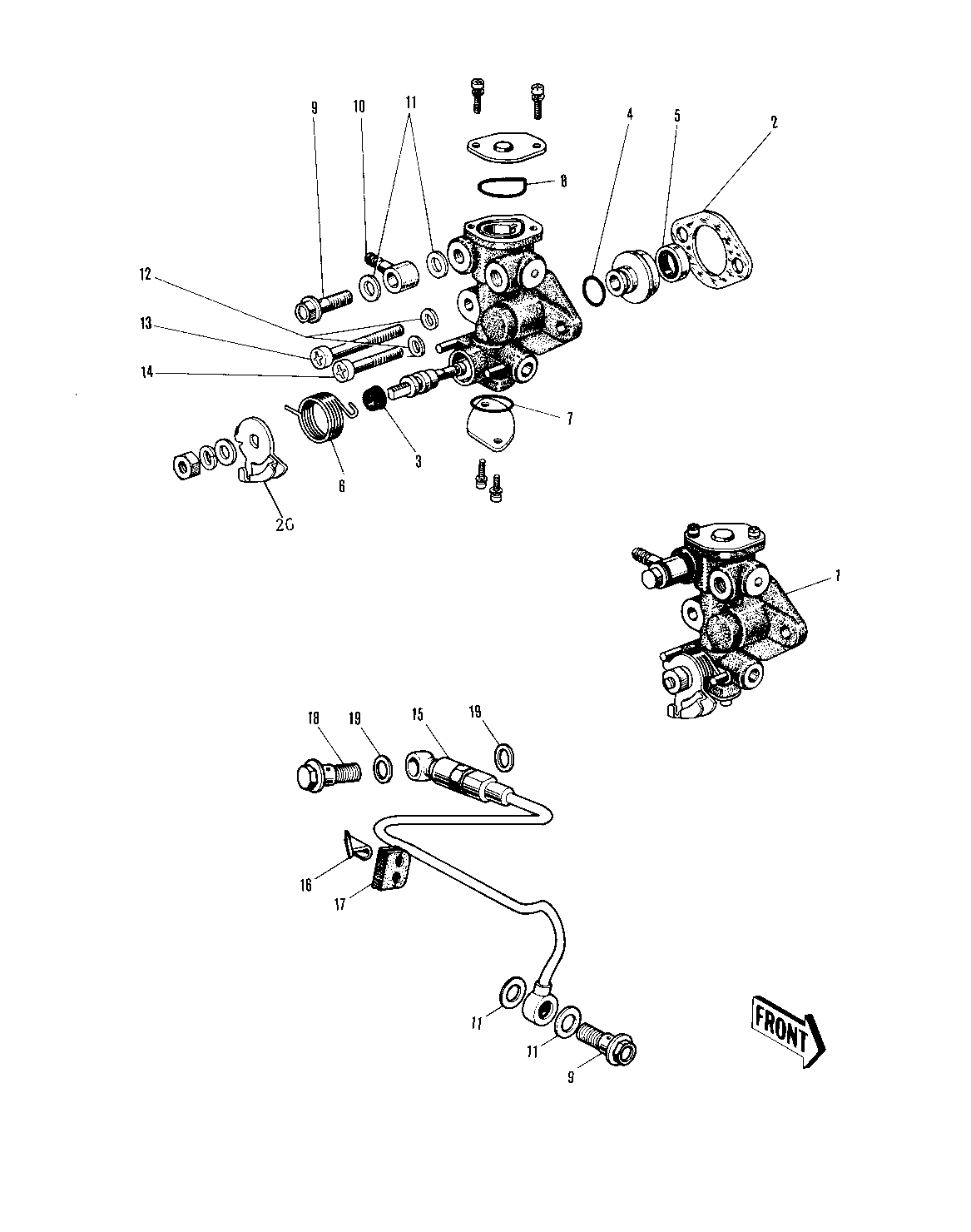

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
OIL PUMP ASSY | 1 | 16082-1004 | 1 | ||
OIL PUMP ASSY | 1 | 16082-1004 | 1 | MT1C | |
GASKET,OIL PUMP | 2 | 11060-1160 | 1 | ||
SEAL-OIL,CAMSHAFT,"X" | 3 | 92049-1294 | 1 | ||
"0" RING,OIL PUMP SHT | 4 | 16090-002 | 1 | ||
OIL SEAL OIL PUMP SHT | 5 | 16091-001 | 1 | ||
SPRING OIL PUMP LEVER | 6 | 16093-004 | 1 | ||
"0" RING,LOWER CAP | 7 | 16090-003 | 1 | ||
"0" RING,UPPER CAP | 8 | 16088-002 | 1 | ||
BOLT-BANJO,6MM | 9 | 92060-013 | 2 | ||
CONNECTOR BANJO | 10 | 92061-009 | 1 | ||
WASHER OIL PUMP BANJO | 11 | 92022-077 | 4 | ||
WASHER OIL PUMP | 12 | 92022-037 | 2 | ||
SCREW PAN CROSS,5X28 | 13 | 220B0528 | 1 | ||
SCREW-PAN-CROS | 14 | 220B0514 | 1 | ||
PIPE-OIL | 15 | 16134-015 | 1 | ||
BRACKET-OIL PIPE | 16 | 16068-006 | 1 | ||
GROMMET | 17 | 92071-049 | 1 | ||
BOLT-BANJO | 18 | 92060-015 | 1 | ||
GASKET CHECK VALVE | 19 | 92065-023 | 2 | ||
LEVER-OIL PUMP CABLE | 20 | 16096-009 | 1 |
OIL PUMP ASSY | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL PUMP ASSY | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | MT1C |
GASKET,OIL PUMP | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,CAMSHAFT,"X" | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,OIL PUMP SHT | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL OIL PUMP SHT | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING OIL PUMP LEVER | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,LOWER CAP | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,UPPER CAP | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-BANJO,6MM | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CONNECTOR BANJO | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER OIL PUMP BANJO | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER OIL PUMP | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN CROSS,5X28 | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-OIL | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-OIL PIPE | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-BANJO | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET CHECK VALVE | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LEVER-OIL PUMP CABLE | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
