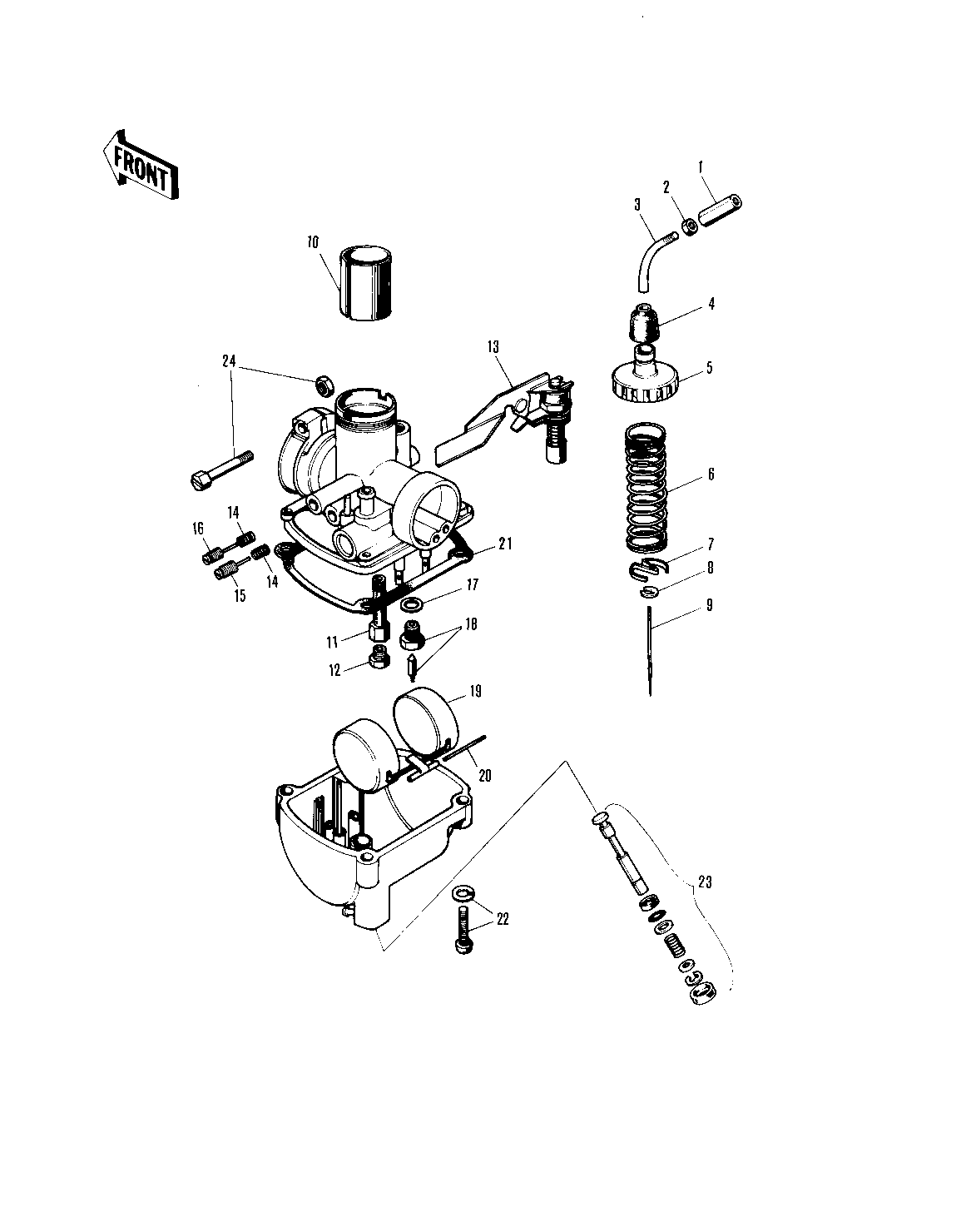

1971 Mini-Trail - CARBURETOR ('71-'75)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 25 16001-129 1 VM158C
CABLE ADJUSTER 1 16002-004 1
NUT CABLE ADJUST LOCK 2 16003-004 1
*** N.L.A.*** (Canada) 3 16077-003 1
CAP-RUBBER 4 16037-001 1
TOP-MIXING CHANBER 5 16005-001 1
SPRING-THROTTLE VALVE 6 16006-001 1
SPRING SEAT THRTL VLV 7 16007-001 1
CIRCLIP 8 16008-010 1
JET NEEDLE 3G9 9 16009-042 1 3G9
VALVE-THROTTLE CA2.0 10 16025-038 1 C.A 20
NEEDLE JET E-0 11 16017-051 1 E-O
MAIN JET NO 70M 12 92063-110 1
PLUNGER ASSY-STARTER 13 16016-009 1
SPRING-THR STOP SCREW 14 16022-007 2
SCREW STOP 15 16021-001 1
SCREW PILOT AIR ADJST 16 16014-002 1
WASHER VALVE SEAT 17 16029-002 1
FLOAT VALVE ASSY 18 16030-002 1
FLOAT 19 16031-014 1
FLOAT PIN 20 16032-003 1
GASKET 21 16019-011 1
SCREW-FLOAT CHAMBER 22 16033-012 4
EJECTOR ASSY-FUEL 23 16064-001 1
SCREW-CLAMP 24 16010-005 1
