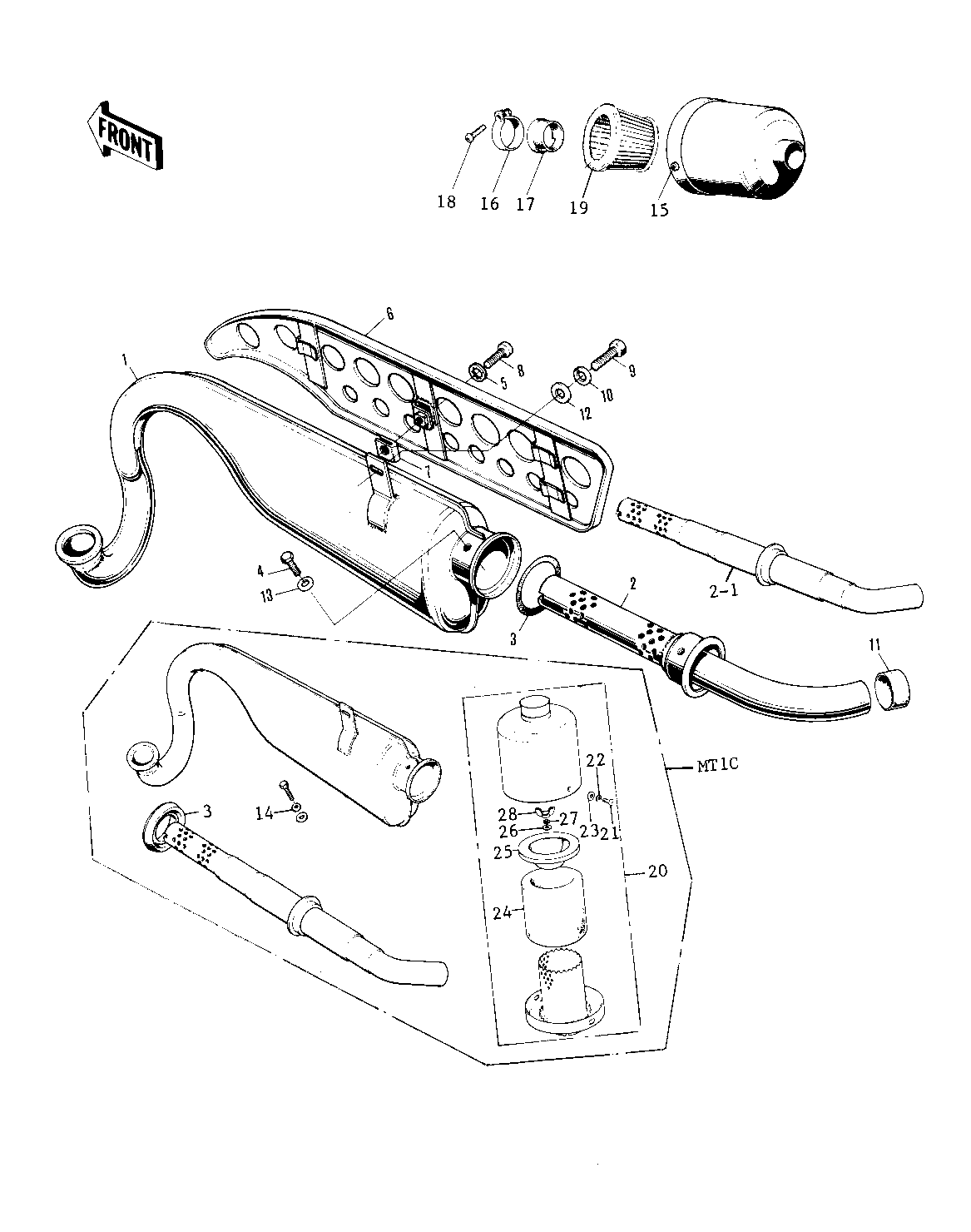

1971 Mini-Trail - AIR CLEANER/MUFFLER ('71-'75)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 4,13 18001-034 1 MT1
MUFFLER ASSY 1 4,13 18001-079 1 MT1A/B/C
BAFFLE TUBE 2 18033-046 1 MT1
BAFFLE TUBE 2-1 18033-060 1 MT1A/B/C
"0" RING,36MM 3 670B3036 1
OIL SEAL 3 92056-004 1 MT1C
BOLT,6X10 4 112G0610 1 MT1
BOLT-UPSET,6X8 4 112B0608 1 MT1A/B/C
WASHER LOCK 6MM 5 464H0600 1 MT1
WASHER LOCK 6MM 5 463H0600 1 MT1A/B/C
COVER-MUFFLER BLACK 6 18057-036-21 1 MT1/A
COVER,MUFFLER 6 18057-048 1 MT1B/C
INSULATOR-HEAT 7 18065-009 1
SCREW PAN HEAD 6X12 8 220E0612 1
BOLT,8X20 9 115G0820 1
WASHER SPRING 8MM 10 461F0800 1
CAP-RUBBER 11 92073-012 1 MT1
CAP-MUFFLER RUBBER 11 92073-021 1 MT1A/B/C
WASHER PLAIN 8MM 12 411B0800 1
WASHER-PLAIN 13 92022-183 1
WASHER PLAIN 6MM 14 410B0600 1 MT1C
AIR CLEANER ASSY 15 11010-081 1 MT1/A/B
HOLDER,CONNECT 16 18045-002 1 MT1/A/B
BUSHING,RUBBER 17 92092-1001 1 MT1/A/B
SCREW PAN HEAD 6X20 18 220B0620 1 MT1/A/B
AIR CLEANER ASSY 19 11010-081 1 MT1/A/B
AIR CLEANER ASSY 20 11010-081 1 MT1C
SCREW PAN HEAD 4X10 21 220B0410 2 MT1C
WASHER SPRING 4MM 22 461F0400 2 MT1C
WASHER PLAIN 4MM 23 410B0400 2 MT1C
ELEMENT,AIR,CLNR 24 11013-048 1 MT1C
ELEMENT,AIR CLNR,TOP 25 11013-050 1 MT1C
WASHER PLAIN 4MM 26 410B0400 1 MT1C
WASHER SPRING 4MM 27 461F0400 1 MT1C
NUT,WING,4MM 28 92015-074 1 MT1C
