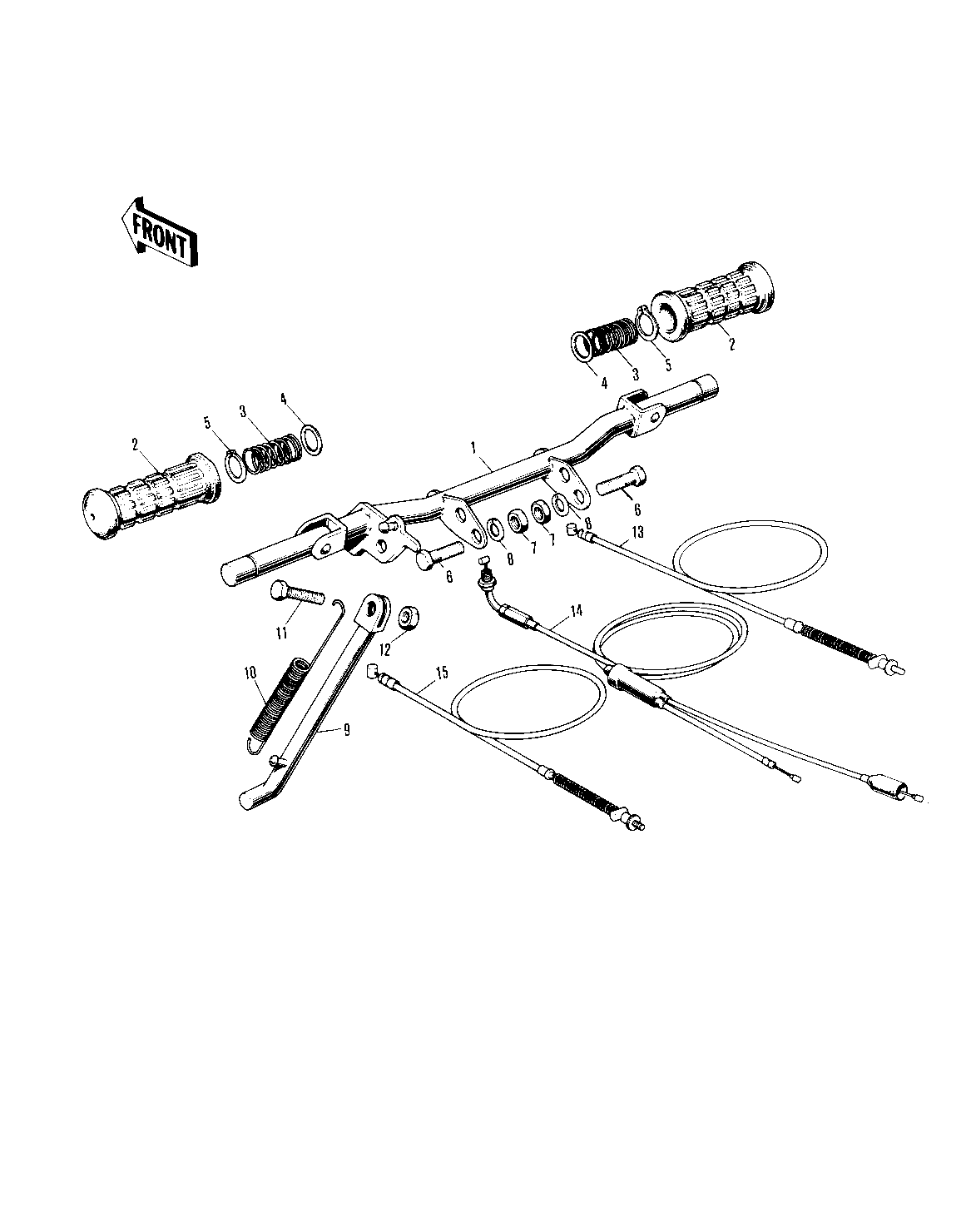

1971 Mini-Trail - FOOTRESTS/STAND/CABLES ('71-'75)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BAR-FOOTREST 1 34002-029 1
RUBBER FOOTREST 2 92076-006 2
SPRING FOOTREST PEG 3 34006-002 2
WASHER FOLDING PEG 4 92022-049 2
CIRCLIP 16MM 5 480J1600 2
BOLT,HEX HEAD,10X18 6 113G1018 2
NUT,10MM 7 314B1000 2
NUT,10MM 7 314B1000 2 MT1C
WASHER SPRING 10MM 8 461F1000 2
STAND-SIDE 9 34024-050 1
STAND-SIDE 9 34024-050 1 MT1C
SPRING MAIN STAND 10 34023-005 1
BOLT,10X28 11 113G1028 1
BOLT,HEX HEAD,10X25 11 113G1025 1 MT1C
NUT 10MM 12 315B1000 2
CABLE-FRONT BRAKE 13 54005-058 1
CABLE,THROTTLE 14 54012-129 1
CABLE-REAR BRAKE 15 54022-020 1
