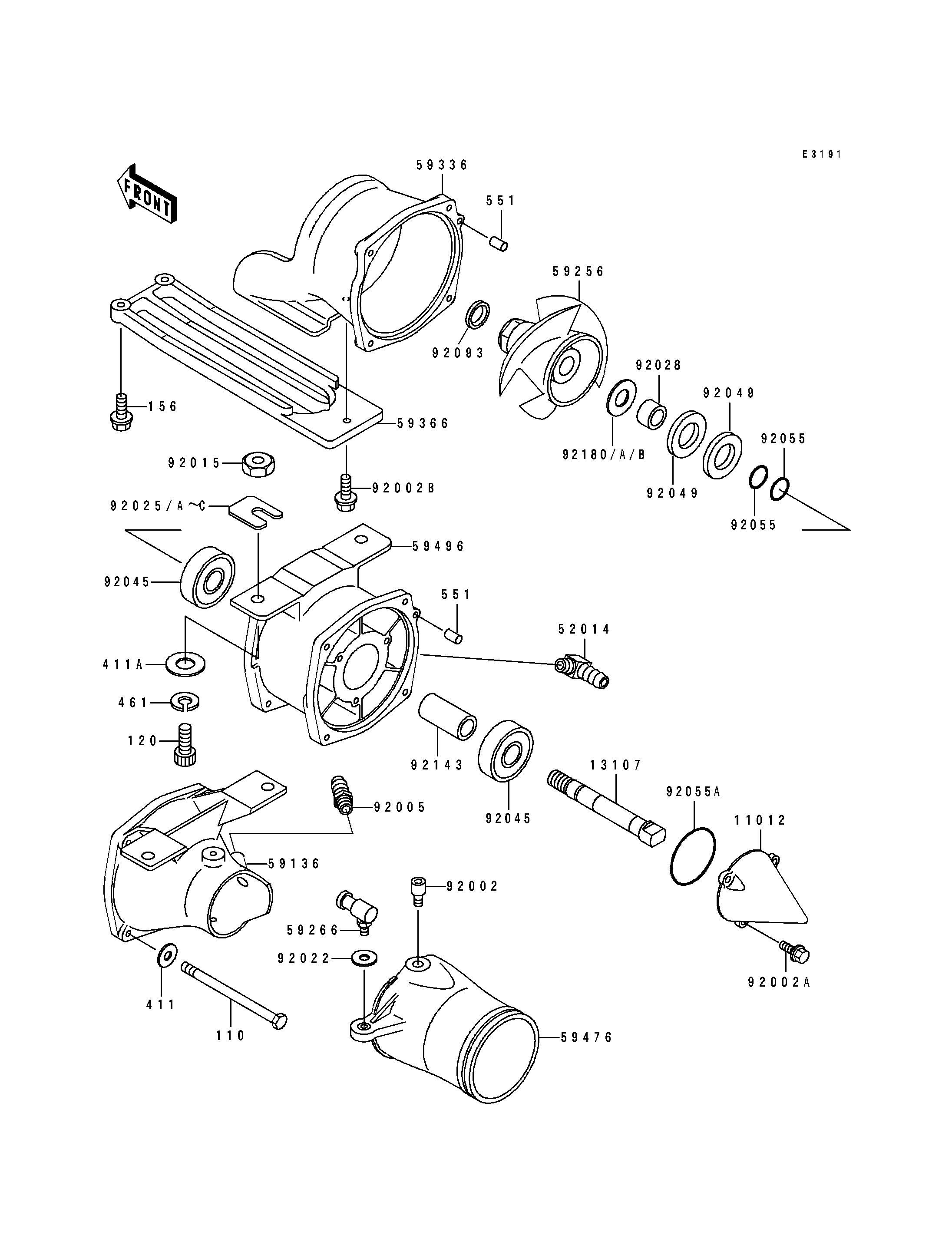

1990 550 SX - Jet Pump

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,JET PUMP 11012 11012-3738 1
SHAFT,JET PUMP 13107 13107-3721 1
ELBOW 52014 52014-3002 1
NOZZLE-PUMP 59136 59136-3713 1
IMPELLER 59256 59256-3711 1
JOINT-BALL 59266 59266-3701 1
CASE-PUMP 59336 59336-3702 1
GRATE 59366 59366-3001 1
NOZZLE-STRG 59476 59476-3702 1
VANE-GUIDE 59496 59496-3702 1
BOLT,SOCKET,6X11 92002 92001-3701 2
BOLT,6X16 92002A 92002-3728 3
BOLT,6X12 92002B 92002-3763 1
FITTING,HOSE 92005 92005-3001 1
NUT,10MM 92015 92015-3005 4
WASHER 92022 92022-567 1
SHIM,T=0.3MM 92025 92025-3701 AR
SHIM,T=0.5MM 92025A 92025-3702 AR
SHIM,T=1.0MM 92025B 92025-3703 AR
SHIM,T=1.5MM 92025C 92025-3704 AR
BUSHING,17X25X15 92028 92028-3717 1
BEARING-BALL,#63032RD 92045 92045-3706 2
SEAL-OIL,TCV-25476 92049 92049-3711 2
RING-O,13X1.9 92055 92055-1021 2
RING-O 92055A 92055-3706 1
SEAL 92093 92093-3702 1
COLLAR,17.4X25.4X53 92143 92143-3708 1
SHIM,T=1.0 92180 92025-3717 AR
SHIM,T=1.5 92180A 92025-3718 AR
SHIM,T=2.0 92180B 92025-3719 AR
BOLT,6X125 110 110R06125 4
BOLT-SOCKET 120 120R1025 4
BOLT-WP,6X25 156 156R0625 2
WASHER-PLAIN,6MM 411 411S0600 4
WASHER-PLAIN,10MM 411A 411S1000 4
WASHER-SPRING,10MM 461 461S1000 4
PIN-DOWEL 551 551R0612 2
